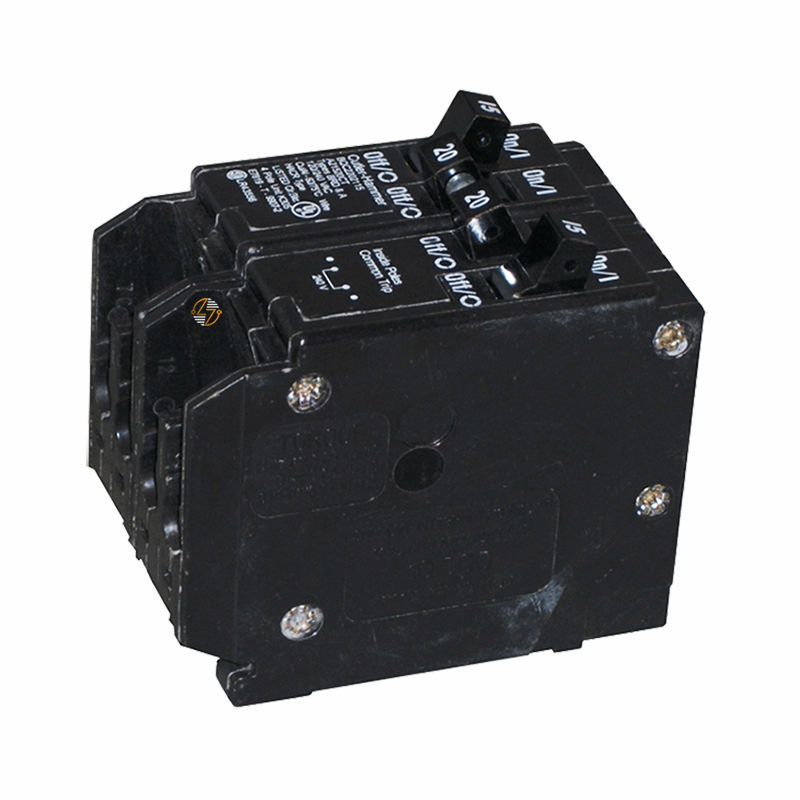

The Eaton BQ2502115 Type BQ Quadplex Circuit Breaker combines two 15-amp single-pole breakers and one 50-amp two-pole breaker in a single assembly for Eaton Type BR loadcenters. Its quadplex configuration allows two 120-volt circuits and one 240-volt circuit to occupy a single breaker space.

You'll commonly find the BQ2502115 installed where standard branch circuits and a larger 240-volt load are supplied from the same panel. Typical applications include lighting circuits, receptacles, HVAC equipment, electric water heaters, compressors, pumps, and workshop equipment.

The breaker features a thermal magnetic trip mechanism, plug-on installation, and Eaton's rejection tab feature for use in compatible BR loadcenters. It is rated for 120/240 VAC, carries a 10 kAIC interrupting rating, and is compatible with both copper and aluminum conductors. The BQ2502115 is UL 489 Listed and HACR rated for approved heating, air conditioning, and refrigeration applications.

Key Features and Benefits

• Quadplex Design: Two 15A single-pole breakers and one 50A two-pole breaker in a single assembly, accommodating two 120V circuits and one 240V circuit in a single breaker space.
• Thermal Magnetic Protection: Provides protection against overloads and short circuits using a thermal magnetic trip mechanism.
• Plug-On Installation: Designed for Eaton Type BR loadcenters with plug-on mounting.
• Rejection Tab Feature: Helps ensure proper installation in compatible panels.
• Rated for 120/240 VAC: Suitable for residential and light commercial electrical systems.
• 10 kAIC Interrupting Capacity: Provides dependable fault interruption capability.
• Compatible Conductors: Works with both copper and aluminum conductors.
• HACR Listed: Approved for heating, air conditioning, and refrigeration applications.
• UL 489 Listed: Certified for branch circuit protection applications.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ2502115

• UPC: 786676371704

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (2) Single-Pole 15A, (1) Two-Pole 50A

• Voltage Rating:
  • 120V at 15A
  • 120/240V at 50A
• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Dimensions:
  • Length: 3 in
  • Width: 2 in
  • Height: 3 in
• Product Weight: 0.8 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

• Industry Compliance: The BQ2502115 complies with Federal Specifications Classification W-C375 and is UL 489 Listed for branch circuit protection applications.
• HACR Applications: Eaton Type BQ quadplex breakers are also listed for HACR applications when installed in accordance with applicable electrical codes and manufacturer requirements.
• Certifications: UL 489 Listed, Federal Specifications Classification W-C375, HACR Listed.


Where It Works Best

• The BQ2502115 is commonly used in residential service panels, multifamily housing, workshops, retail locations, office spaces, and light commercial facilities where both 15-amp branch circuits and a 50-amp 240-volt circuit are required. Common applications include lighting, receptacles, HVAC equipment, electric water heaters, compressors, pumps, and other dedicated branch circuits.
