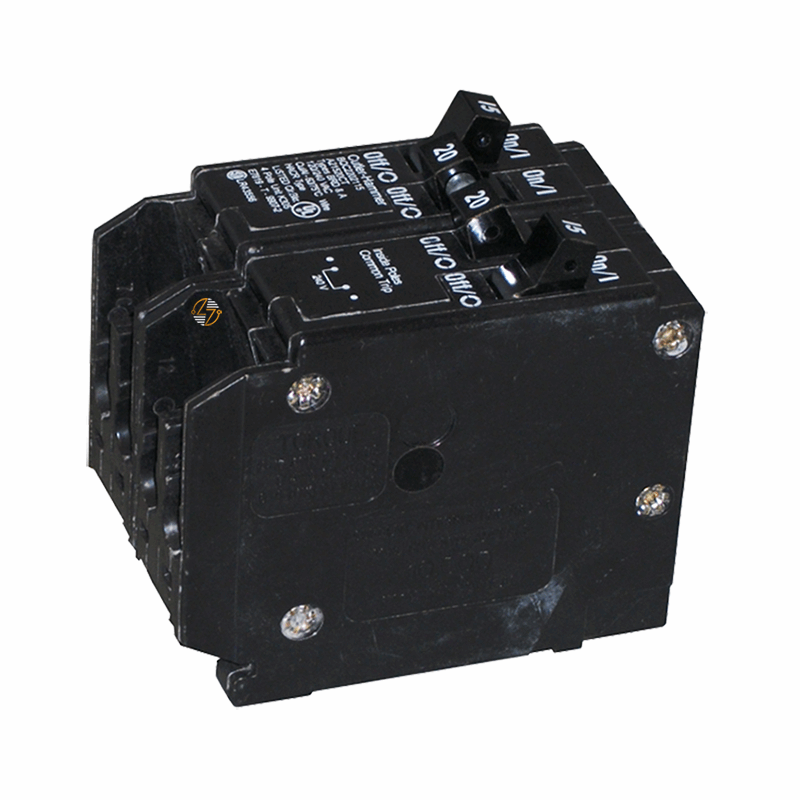

BQ2402115 - Quadplex 40/15 Circuit Breaker

BQ2402115 - Quadplex 40/15 Circuit Breaker

Secure your electrical systems with the Eaton BR Thermal Magnetic Circuit Breaker, model BQ2402115. This robust circuit breaker is designed for dependable power distribution and circuit protection in residential and commercial settings. Featuring a unique Type BQ 1-Inch CTL plug-on design, it includes a rejection tab feature to ensure proper installation and prevent misplacement. The BQ2402115 breaker is a quadplex unit with two single-pole breakers at 15A and one two-pole breaker at 40A, offering flexible and efficient load management.

Key Features and Benefits:

• Versatile Configuration: Comprises two 15A single-pole and one 40A two-pole breakers, suitable for a wide range of applications.
• High Interrupt Rating: Provides a 10 kAIC interrupting rating, ensuring protection against high fault currents.
• Compact and Efficient: The 1-inch plug-on design allows for easy installation in Type BR load centers, optimizing space and enhancing electrical panel organization.

Technical Specifications:

• Amperage Rating: 40A and 15A
• Voltage Rating: Operates on both 120/240V for the two-pole and 120V for single-pole units.
• Wire Compatibility: Accepts #14-4 AWG Cu/Al wires, accommodating various wire sizes for installation flexibility.
• Dimensions: Measures 3 inches in length, 3 inches in height, and 2 inches in width, with a weight of 0.8 lbs.

Material Compliance and Certifications:

• UL 489 Certified: Meets rigorous safety standards, ensuring device reliability and performance.
• Compliant with Federal Specifications Classification W-C375: Guarantees compliance with federal electrical standards.

Suitability:

• Perfect for residential homes and commercial buildings requiring reliable circuit protection. Ideal for use in scenarios demanding a high interrupt capacity and compact size.

Elevate your electrical system’s safety and reliability with the Eaton BR Thermal Magnetic Circuit Breaker, model BQ2402115. It stands out for its durability, compliance with safety standards, and ease of use, making it an excellent choice for both new installations and upgrades.
