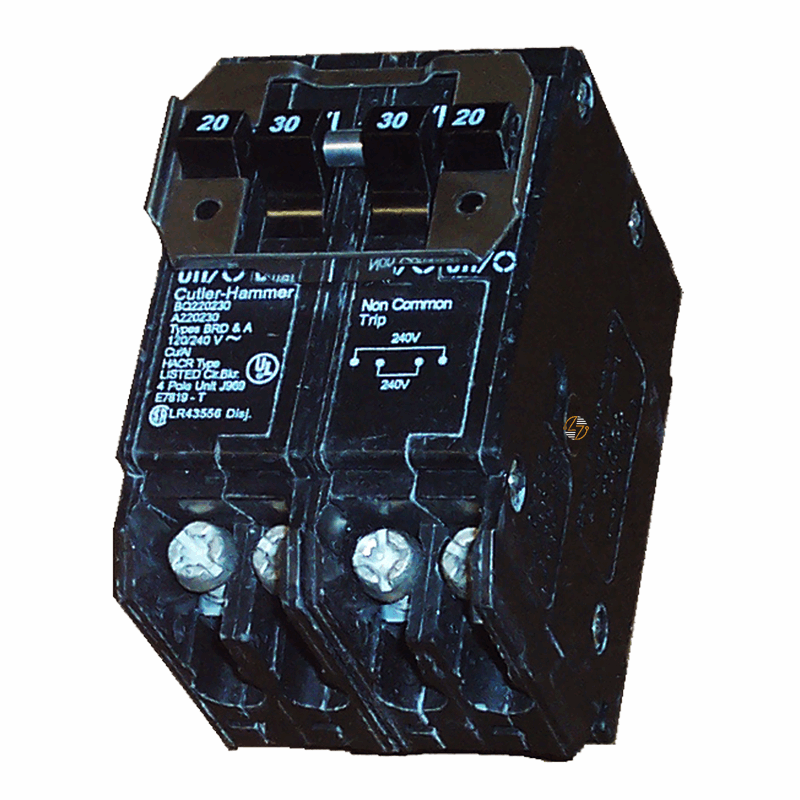

BQ230240 - Quadplex 30/40 Circuit Breaker

BQ230240 - Quadplex 30/40 Circuit Breaker

The Eaton BQ230240 Type BQ Quadplex Thermal Magnetic Circuit Breaker is designed to provide two independent 240-volt branch circuits within a single compact breaker assembly. Featuring one 30-amp two-pole breaker and one 40-amp two-pole breaker, this quadplex configuration helps you maximize available space in compatible Eaton Type BR loadcenters while accommodating multiple dedicated circuits. It is a practical choice for your panel upgrades, electrical renovations, equipment additions, and other projects where adding new circuits without expanding the panel is desirable.

Built with Eaton's proven thermal magnetic trip technology, the BQ230240 helps protect your conductors and connected equipment from overloads and short circuits. The breaker installs using a plug-on connection and includes Eaton's rejection tab feature for proper placement in approved loadcenters. Rated for 120/240 VAC operation with a 10 kAIC interrupting capacity, the BQ230240 is commonly used to supply power to larger residential and light commercial loads such as air conditioning systems, heat pumps, water heaters, air compressors, pumps, workshop equipment, and other dedicated 240-volt applications. Its combination of a 30-amp and 40-amp two-pole breaker makes it especially useful when different load requirements must be accommodated within limited panel space.

Key Features and Benefits

• Quadplex Design: Combines two independent two-pole breakers in one assembly, helping maximize circuit capacity in compatible loadcenters.
• 30A and 40A Configuration: Includes one 30A two-pole breaker and one 40A two-pole breaker, making it suitable for applications with different load requirements.
• Thermal Magnetic Protection: Provides protection against overloads and short circuits using Eaton's proven thermal magnetic trip technology.
• Plug-On Installation: Features a plug-on mounting design for quick installation and includes Eaton's rejection tab feature for proper placement in approved loadcenters.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ230240

• UPC: 786676371056

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 40A

• Voltage Rating: 120/240 VAC

• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Dimensions:
  • Length/Depth: 3.5 in
  • Width: 2.5 in
  • Height: 3.1 in
• Product Weight: 2.5 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

• UL 489 Listed: The Eaton BQ230240 is UL 489 Listed for branch circuit protection applications.
• Federal Specifications Classification W-C375: Complies with Federal Specifications Classification W-C375.
• HACR Listed: Carries HACR listing for approved heating, air conditioning, and refrigeration installations when used in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The BQ230240 is commonly installed in residential service panels, multifamily housing, garages, workshops, retail spaces, office buildings, and light commercial facilities where both 30-amp and 40-amp 240-volt circuits are required. Typical applications include air conditioning condensers, heat pumps, electric water heaters, compressors, pumps, shop equipment, and other dedicated branch circuits that require dependable two-pole protection while conserving valuable loadcenter space.
