BQ230230 - Quadplex 30/30 Circuit Breaker

BQ230230 - Quadplex 30/30 Circuit Breaker

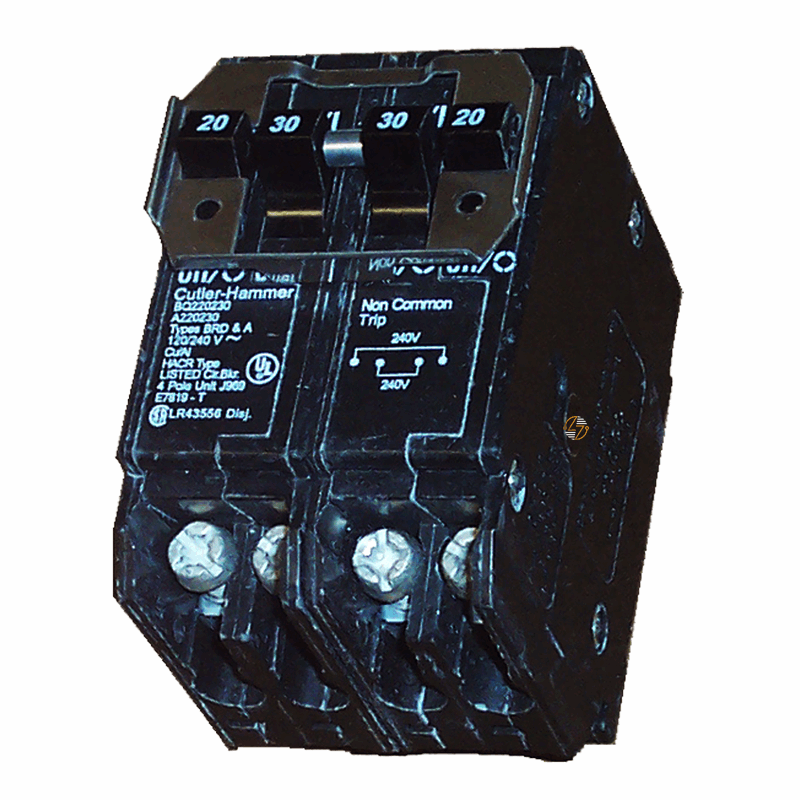

The Eaton BQ230230 Type BQ Quadplex Circuit Breaker is designed for your applications that require multiple 240-volt branch circuits while making efficient use of available panel space. Featuring two independent 30-amp two-pole breakers housed in a single compact assembly, this quadplex breaker allows electricians and contractors to add or maintain multiple circuits within compatible Eaton Type BR loadcenters without occupying additional breaker positions. Its space-saving design makes it a practical solution for panel upgrades, renovations, service modifications, and electrical installations where loadcenter capacity is limited.

Built with a thermal magnetic trip mechanism, the BQ230230 responds to both overload and short-circuit conditions to help protect your branch circuits and connected equipment. The plug-on mounting design allows for straightforward installation in approved Eaton BR loadcenters, while the integrated rejection tab feature helps ensure proper breaker placement.

Key Features and Benefits

• Quadplex configuration: With two independent 30A two-pole breakers
• Allows multiple 240-volt circuits: In a single breaker space
• Thermal magnetic trip technology.
• Designed for Eaton Type BR loadcenters.
• Plug-on mounting design: For convenient installation
• Includes rejection tab feature: For proper panel compatibility
• Rated for 120/240V applications.
• 10 kAIC interrupting capacity.
• Compatible with copper and aluminum conductors.
• HACR listed: For approved heating, air conditioning, and refrigeration applications
• UL 489 Listed.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ230230

• UPC: 786676371001

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (2) Two-Pole 30A

• Voltage Rating: 120/240V AC

• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Product Length/Depth: 1.4 in

• Product Width: 3.2 in

• Product Height: 3.1 in

• Product Weight: 2.5 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

The Eaton BQ230230 is manufactured to meet established electrical industry requirements for safety and performance. It is UL 489 Listed and complies with Federal Specifications Classification W-C375. Eaton Type BQ quadplex circuit breakers are also listed for HACR applications when installed in accordance with applicable codes and manufacturer guidelines.

• UL 489 Listed
• Federal Specifications Classification W-C375
• HACR Listed


Where It Works Best

• The BQ230230 is well suited for residential and light commercial electrical systems that require multiple 30-amp, 240-volt branch circuits. Common applications include HVAC equipment, condensers, water heaters, air compressors, pumps, workshop equipment, and other dedicated loads that require two-pole circuit protection. It is especially useful in situations where additional circuits must be added while preserving valuable space inside an existing Eaton Type BR loadcenter.
