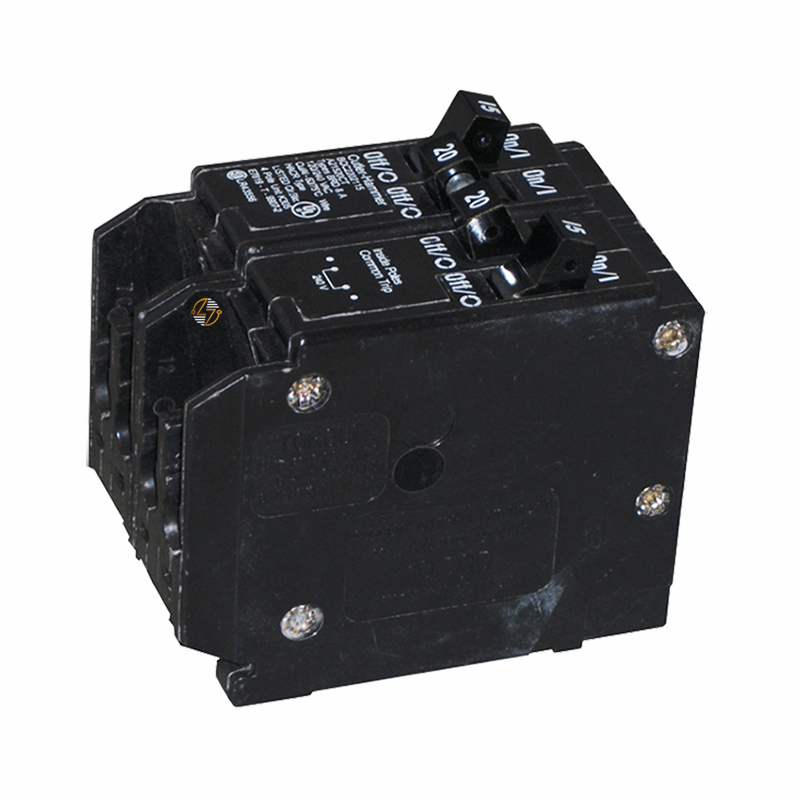

BQ2302115 - Quadplex 30/15 Circuit Breaker

BQ2302115 - Quadplex 30/15 Circuit Breaker

Finding room for additional circuits can be challenging when a loadcenter is already close to capacity. The Eaton BQ2302115 Type BQ Quadplex Circuit Breaker helps you make better use of available panel space by combining two 15-amp single-pole circuits and one 30-amp two-pole circuit into a single compact unit. This configuration allows multiple branch circuits to be added without taking up additional breaker positions, making it a common choice for panel upgrades, remodeling projects, and electrical system expansions.

You'll often find the BQ2302115 serving a mix of everyday electrical loads, including lighting circuits, receptacles, small appliances, HVAC equipment, and dedicated 240-volt applications. The combination of two 15A single-pole breakers and one 30A two-pole breaker makes it particularly useful when different circuit requirements need to be accommodated within the same panel.

Key Features and Benefits

• Quadplex configuration: Combines two 15A single-pole circuits and one 30A two-pole circuit
• Accommodates multiple branch circuits: While conserving panel space
• Thermal magnetic trip mechanism: For overload and short-circuit protection
• Designed for use in Eaton Type BR loadcenters.
• Plug-on mounting design.
• Includes rejection tab feature: For proper panel compatibility
• Suitable for copper and aluminum conductors.
• 10 kAIC interrupting capacity.
• HACR listed: For approved heating, air conditioning, and refrigeration applications
• UL 489 Listed.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ2302115

• UPC: 786676371506

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (2) Single-Pole 15A, (1) Two-Pole 30A

• Voltage Rating:
  • 120V at 15A
  • 120/240V at 30A
• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Product Length: 3 in

• Product Width: 2 in

• Product Height: 3 in

• Product Weight: 0.7 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

The Eaton BQ2302115 is manufactured to meet recognized industry standards for electrical protection and performance. It is UL 489 Listed and complies with Federal Specifications Classification W-C375. Eaton Type BQ quadplex circuit breakers are also listed for HACR applications when installed in accordance with applicable electrical codes and manufacturer requirements.

• UL 489 Listed
• Federal Specifications Classification W-C375
• HACR Listed


Where It Works Best

• The BQ2302115 is commonly installed in residential service panels, apartment buildings, condominiums, office spaces, retail locations, workshops, and light commercial facilities where additional branch circuits are needed but available breaker space is limited.
