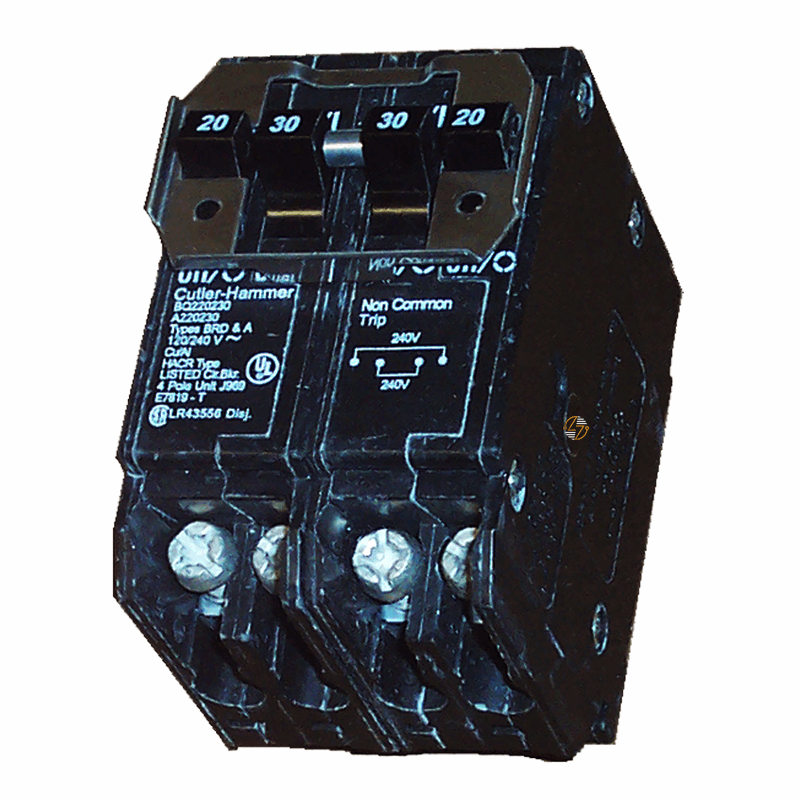

BQ220250 - Quadplex 20/50 Circuit Breaker

Adding new 240-volt circuits can become challenging when an electrical panel is already running out of available space. The Eaton BQ220250 Type BQ Quadplex Circuit Breaker helps make better use of existing panel capacity by combining one 20-amp two-pole breaker and one 50-amp two-pole breaker into a single compact unit. By fitting two independent circuits into a single breaker position, it provides a convenient way to expand circuit capacity without replacing the loadcenter.

This configuration is often used during panel upgrades, equipment replacements, and remodeling projects where different circuit sizes are needed in the same panel. You'll commonly find the BQ220250 serving equipment such as air conditioners, heat pumps, electric water heaters, compressors, workshop machinery, and other dedicated 120/240-volt loads. The combination of 20A and 50A protection allows a variety of equipment to be accommodated while conserving valuable breaker space.

Key Features and Benefits

• Quadplex configuration: With one 20A two-pole breaker and one 50A two-pole breaker
• Accommodates two independent 240-volt circuits: In a single breaker space
• Thermal magnetic trip mechanism: For overload and short-circuit protection
• Designed for use in Eaton Type BR loadcenters.
• Plug-on mounting design.
• Includes rejection tab feature: For proper panel compatibility
• Rated for 120/240 VAC electrical systems.
• 10 kAIC interrupting capacity.
• Compatible with copper and aluminum conductors.
• HACR listed: For heating, air conditioning, and refrigeration applications
• Helps maximize available loadcenter space.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ220250

• UPC: 786676370905

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (1) Two-Pole 20A and (1) Two-Pole 50A

• Voltage Rating: 120/240 VAC

• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Product Length: 2 in

• Product Height: 2.6 in

• Product Width: 3.1 in

• Product Weight: 0.75 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

The Eaton BQ220250 is manufactured to meet recognized industry standards for electrical protection and performance. It is UL 489 Listed and complies with Federal Specifications Classification W-C375. Eaton Type BQ quadplex circuit breakers are also listed for HACR applications when installed in accordance with applicable electrical codes and manufacturer requirements.

• UL 489 Listed
• Federal Specifications Classification W-C375
• HACR Listed


Where It Works Best

• The BQ220250 is commonly installed in residential service panels, multifamily housing, office buildings, retail facilities, workshops, and light commercial properties where additional 240-volt circuits are needed but available breaker space is limited. Typical applications include air conditioning systems, heat pumps, electric water heaters, compressors, workshop equipment, dedicated appliance circuits, and other branch circuits requiring a combination of 20-amp and 50-amp two-pole protection.
