BQ220240 - Quadplex 20/40 Circuit Breaker

BQ220240 - Quadplex 20/40 Circuit Breaker

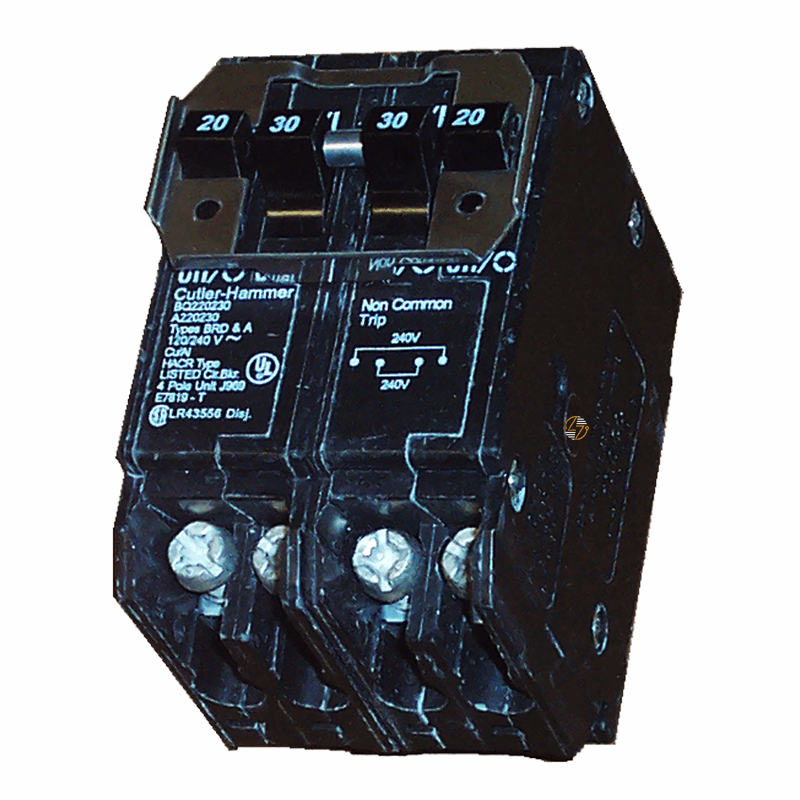

The Eaton BQ220240 Type BQ Quadplex Circuit Breaker combines one 20-amp two-pole breaker and one 40-amp two-pole breaker in a single compact unit for you to use in Eaton Type BR loadcenters. Its quadplex design allows two separate 240-volt circuits to be installed while using only one breaker space, making it a common choice when additional circuits are needed and available panel space is limited.

This breaker is frequently used during panel upgrades, renovations, and equipment additions where a mix of 20-amp and 40-amp two-pole protection is required. Typical applications include air conditioning systems, heat pumps, electric water heaters, electric heating equipment, workshop machinery, and dedicated appliance circuits.

The BQ220240 uses a thermal magnetic trip mechanism to provide overload and short-circuit protection and installs in compatible loadcenters using a plug-on connection. A built-in rejection tab helps you ensure proper placement within approved panels. With a 10 kAIC interrupting rating, UL 489 listing, HACR classification, and compatibility with both copper and aluminum conductors, it is suitable for a wide range of residential and light commercial electrical systems.

Key Features and Benefits

• Quadplex design: With one 20A two-pole breaker and one 40A two-pole breaker.
• Adds two independent 240-volt circuits: While conserving panel space.
• Thermal magnetic trip mechanism.
• Plug-on mounting: For Eaton Type BR loadcenters.
• Rejection tab feature.
• Rated for 120/240 VAC systems.
• 10 kAIC interrupting capacity.
• Compatible with copper and aluminum conductors.
• HACR listed.
• UL 489 Listed.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BQ220240

• UPC: 786676370851

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ Quadplex

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker

• Amperage Rating: (1) Two-Pole 20A and (1) Two-Pole 40A

• Voltage Rating: 120/240 VAC

• Number of Poles: Four-Pole Configuration

• Trip Type: T194

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Compatible Loadcenters: Eaton Type BR

• Wire Size: #14–4 AWG Copper/Aluminum

• Product Length: 2 in

• Product Height: 2.4 in

• Product Width: 3 in

• Product Weight: 0.8 lb

• Special Feature: Rejection Tab


Material Compliance and Certifications

The BQ220240 is UL 489 Listed and complies with Federal Specifications Classification W-C375. Eaton Type BQ quadplex circuit breakers are also listed for HACR applications when installed in accordance with applicable electrical codes and manufacturer requirements.

• UL 489 Listed
• Federal Specifications Classification W-C375
• HACR Listed


Where It Works Best

• The BQ220240 is commonly installed in residential service panels, multifamily housing, office buildings, retail spaces, workshops, and light commercial facilities where both 20-amp and 40-amp two-pole circuits are required. Common applications include air conditioning equipment, heat pumps, electric water heaters, electric heating systems, workshop equipment, dedicated appliance circuits, and other 120/240-volt branch circuits.
