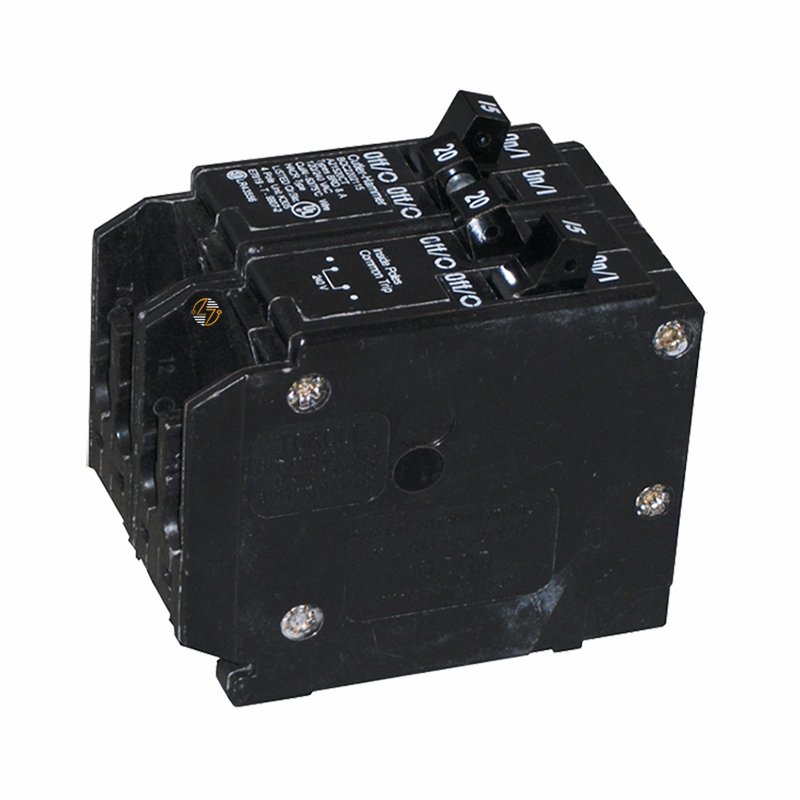

BQ2202115 - Quadplex 20/15 Circuit Breaker

BQ2202115 - Quadplex 20/15 Circuit Breaker

Experience superior power management with the Eaton BQ2202115 Thermal Magnetic Circuit Breaker, a cornerstone of safety and reliability in electrical systems. Designed with precision, this 1-Inch CTL plug-on circuit breaker features a unique rejection tab feature, ensuring compatibility and enhancing safety by preventing improper installation. The BQ2202115 is an essential solution for residential and light commercial applications, offering a configuration of two single-pole 15 A and one two-pole 20 A breaker, suitable for a broad range of wiring setups and electrical demands.

Key Features and Benefits:

• Comprehensive Protection: Features an interrupt rating of 10 kAIC, safeguarding against overcurrents and short circuits to ensure operational safety and equipment integrity.
• Versatile Compatibility: Engineered to be used with Type BR Loadcenters, this breaker is ideal for both new installations and upgrades.
• Easy Installation: The plug-on design facilitates quick and straightforward installation, while the rejection tab feature prevents incorrect placements, enhancing overall installation safety.
• Compact and Durable: With dimensions of 3" x 3" x 2" and a weight of 0.76 lb, this breaker is designed to fit neatly into your power management setup without taking up excess space.

Technical Specifications:

• Amperage Rating: Two single-pole circuits at 15A, one two-pole circuit at 20A
• Voltage Rating: 120/240V for two-pole, 120V for single-pole
• Interrupt Rating: 10 kAIC
• Pole Configuration: Four-pole
• Wire Size: Suitable for #14-4 AWG Cu/Al

Material Compliance and Certifications:

• UL 489 Listed: Meets stringent safety and reliability standards.
• Complies with Federal Specifications Classification W-C375, ensuring quality and consistency in manufacturing.

Suitability:

• Ideal for residential and light commercial electrical systems, particularly in applications requiring a dependable solution for overload and short-circuit protection.

With its robust design, versatile features, and compliance with critical safety standards, the Eaton BQ2202115 Circuit Breaker is the go-to choice for effective power distribution and circuit protection. Whether you're outfitting a new building or upgrading an existing system, this circuit breaker promises performance you can trust.
