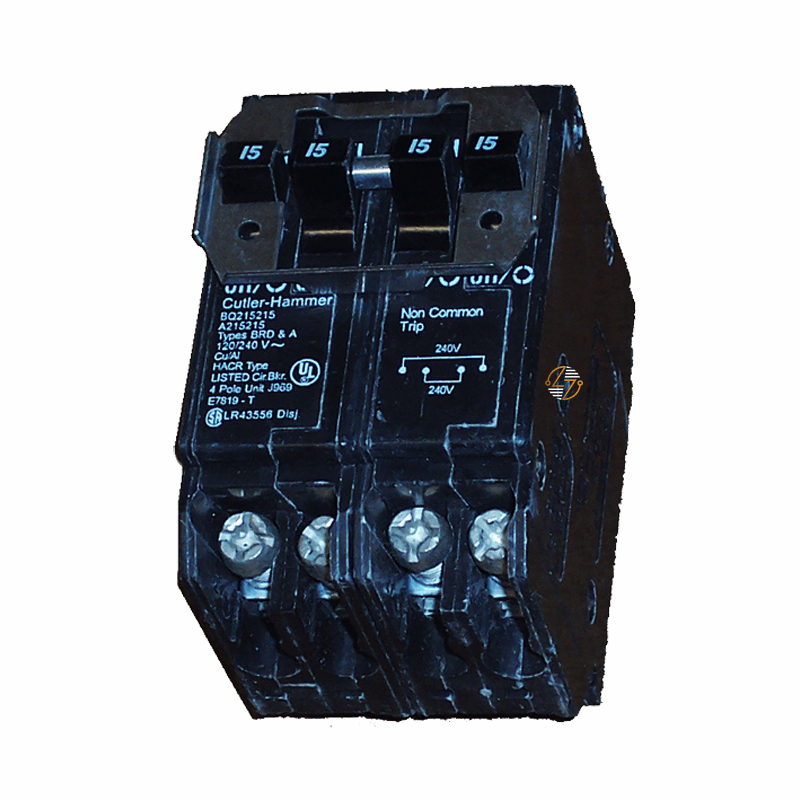

BQ215215 - Quadplex 15/15 Circuit Breaker

BQ215215 - Quadplex 15/15 Circuit Breaker

The BQ215215 is a Type BQ quadplex thermal magnetic circuit breaker designed for you to use in compatible Type BR loadcenters. It combines two 2-pole 15 amp breakers into a single compact unit, making it useful in installations where additional circuits are needed within existing panel space.

Rated for 120/240VAC with a 10kA interrupting capacity, the BQ215215 provides branch circuit protection for your residential, commercial, and light industrial applications. Its plug-on mounting design allows for installation in compatible loadcenters, while the integrated rejection tab feature helps you maintain proper panel compatibility.

Key Features and Benefits

• Two independent 2-pole 15 amp breakers: In a compact quadplex configuration.
• Designed for use: In compatible Type BR loadcenters.
• Thermal magnetic trip mechanism: For overload and short-circuit protection.
• Rated for 120/240VAC applications.
• 10kA interrupting capacity.
• Plug-on mounting design: For installation in approved equipment.
• Includes rejection tab feature: For proper loadcenter compatibility.
• HACR rated: For approved HVAC and refrigeration applications.


Technical Specifications

• Catalog Number: BQ215215

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ

• Configuration: Quadplex Circuit Breaker

• Poles: Four-Pole

• Amperage Rating: (2) Two-Pole 15A

• Voltage Rating: 120/240VAC

• Trip Type: T194

• Interrupt Rating: 10kAIC

• Mounting Method: Plug-On

• Loadcenter Compatibility: Type BR Loadcenters

• Wire Size: #14-4 AWG Copper/Aluminum

• Special Features: Rejection Tab Feature

• Length: 3 in.

• Height: 3 in.

• Width: 2 in.

• Approximate Weight: 0.9 lb


Material Compliance and Certifications

• UL 489 Listed
• Complies with Federal Specifications Classification W-C375
• HACR rated: For approved heating, air conditioning, and refrigeration applications.
• Thermal magnetic molded case circuit breaker construction.
• Designed for branch circuit overcurrent protection.
• Intended for installation: In compatible Type BR loadcenters.


Where It Works Best

• The BQ215215 Type BQ quadplex circuit breaker is commonly used in residential service equipment, commercial buildings, office spaces, retail locations, schools, and light industrial facilities where additional protected circuits are needed within existing panel space.
• It is commonly used in panelboards serving HVAC equipment, lighting circuits, receptacle circuits, multi-wire branch circuits, and general-purpose power distribution.
