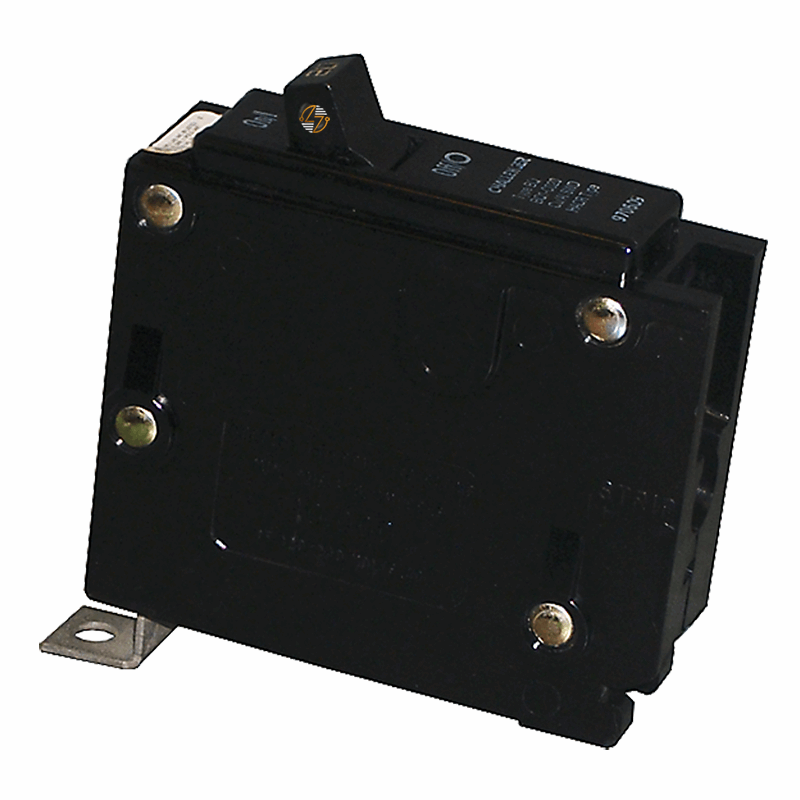

BQ1C030 - 30Amp Circuit Breaker

BQ1C030 - 30Amp Circuit Breaker

The BQ1C030 is a 30 amp, 1-pole Type BQ bolt-on circuit breaker used in compatible electrical distribution equipment. Rated for 120VAC with a 10kA interrupting capacity, it is designed to provide branch circuit protection in a variety of commercial, industrial, and institutional applications.

The bolt-on design allows for secure installation in compatible panelboards, and the breaker is HACR rated for approved heating, air conditioning, and refrigeration applications.

Designed for your operation in environments up to 40°C (104°F), this molded case circuit breaker is built to last and helps you maintain the original design requirements of compatible electrical systems.

Key Features and Benefits

• 30 amp current rating: For branch circuit protection.
• Single-pole configuration: For 120VAC electrical systems.
• 10kA interrupting capacity (A.I.C.): At 120VAC.
• Bolt-on mounting: For secure installation in compatible equipment.
• Type BQ design: For applications requiring matching breaker specifications.
• HACR rated: For approved HVAC and refrigeration circuits.
• Molded case construction: Designed for branch circuit protection applications.
• Compact dimensions: Fit easily into compatible panelboard installations.
• Suitable for maintaining existing electrical distribution systems.


Technical Specifications

• Part Number: BQ1C030

• Type: BQ Molded Case Circuit Breaker

• Poles: 1

• Amperage: 30 Amps

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Mounting Style: Bolt-On

• HACR Rated: Yes

• Temperature Rating: 40°C (104°F)

• Width: 1.00 in.

• Height: 3.29 in.

• Depth: 2.92 in.

• Dimensions:
  • Width: 1.00 in.
  • Length: 3.29 in.
  • Depth: 2.92 in.
• Approximate Shipping Weight: 1.75 lbs


Material Compliance and Certifications

• HACR rated: For approved heating, air conditioning, and refrigeration applications.
• Designed for branch circuit overcurrent protection.
• Molded case circuit breaker construction.
• Intended for installation: In compatible electrical distribution equipment.
• Suitable for use: In accordance with applicable electrical codes and manufacturer requirements.
• Rated for operation in ambient temperatures: Up to 40°C (104°F).


Where It Works Best

• The BQ1C030 is commonly used in commercial buildings, schools, healthcare facilities, retail spaces, warehouses, and light industrial environments. Typical applications include lighting circuits, receptacle circuits, HVAC equipment, control circuits, and other branch circuits operating at 120VAC. It is often selected for maintenance and replacement projects where a 30 amp Type BQ bolt-on circuit breaker is specified for compatibility with existing equipment.
