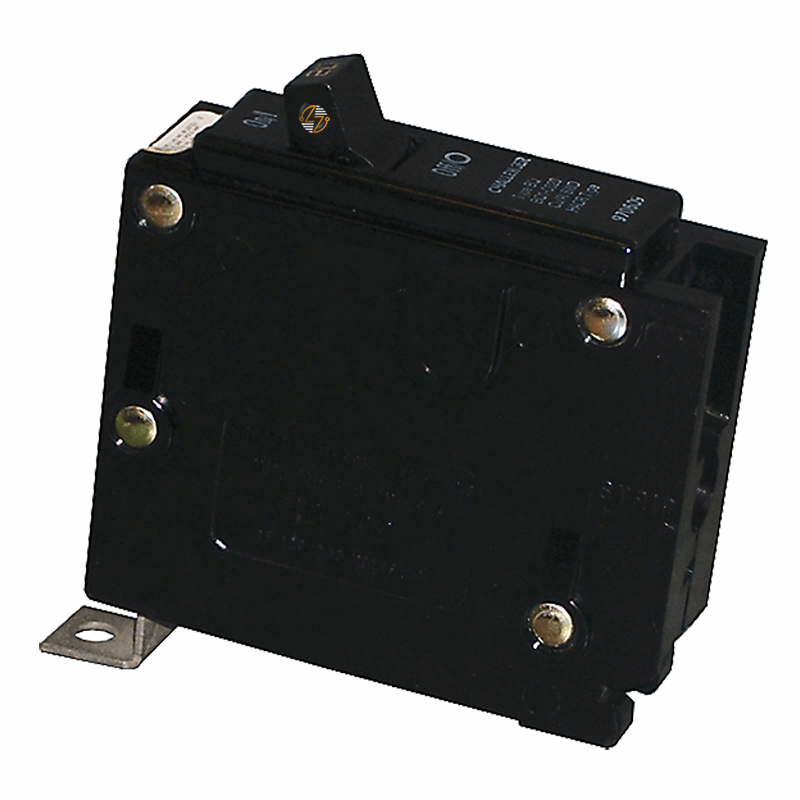

BQ1C015 - 15Amp Circuit Breaker

BQ1C015 - 15Amp Circuit Breaker

When you need a compatible replacement circuit breaker for an existing electrical system, the BQ1C015 provides the form, fit, and function required for dependable branch circuit protection. This 15-amp, single-pole Type BQ bolt-on circuit breaker is designed to help safeguard electrical circuits from overloads and short circuits while maintaining the integrity of your distribution system. Its bolt-on design creates a secure connection within compatible panelboards, making it a practical choice for electrical maintenance, repairs, and replacement projects.

The BQ1C015 is rated 10kA at 120VAC and is HACR rated, making it suitable for use with qualifying heating, air conditioning, and refrigeration equipment. Built for long-term service in commercial, industrial, and institutional environments, this molded case circuit breaker is engineered to provide reliable circuit protection while fitting the requirements of existing Type BQ installations. Its compact footprint allows it to fit comfortably within panelboard assemblies without sacrificing the protection your system depends on.

Key Features and Benefits

• 15 amp current rating: For branch circuit protection.
• Single-pole configuration: For 120VAC applications.
• Bolt-on mounting design: For a secure panel connection.
• 10kA interrupting capacity: At 120VAC.
• Type BQ molded case circuit breaker: Type BQ molded case circuit breaker.
• HACR rated: For approved HVAC and refrigeration applications.
• Helps protect electrical equipment: From overloads and short-circuit events.
• Suitable for operation: In ambient temperatures up to 40°C.
• Compact design: For efficient use of panel space.
• Built for long service life: In demanding electrical environments.


Technical Specifications

• Part Number: BQ1C015

• Type: BQ Molded Case Circuit Breaker

• Poles: 1

• Amperage: 15A

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Mounting Style: Bolt-On

• HACR Rated: Yes

• Operating Temperature: 40°C

• Height: 3.29 in.

• Width: 1.00 in.

• Depth: 2.92 in.

• Dimensions:
  • Width: 1.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
• Approx. Shipping Weight: 0.50 lbs


Material Compliance and Certifications

• HACR Rated: For approved heating, air conditioning, and refrigeration applications.
• Designed for Use: In electrical distribution and branch circuit protection systems.
• Manufactured to Applicable Industry Standards: For molded case circuit breakers.
• Intended for Installation: In accordance with applicable electrical codes and equipment requirements.


Where It Works Best

• The BQ1C015 is commonly found in commercial facilities, office buildings, retail spaces, schools, healthcare facilities, and industrial environments that utilize compatible Type BQ panelboards. It works well for protecting lighting circuits, receptacle circuits, HVAC equipment, control panels, and other general-purpose electrical loads requiring a 15 amp, single-pole bolt-on circuit breaker.
