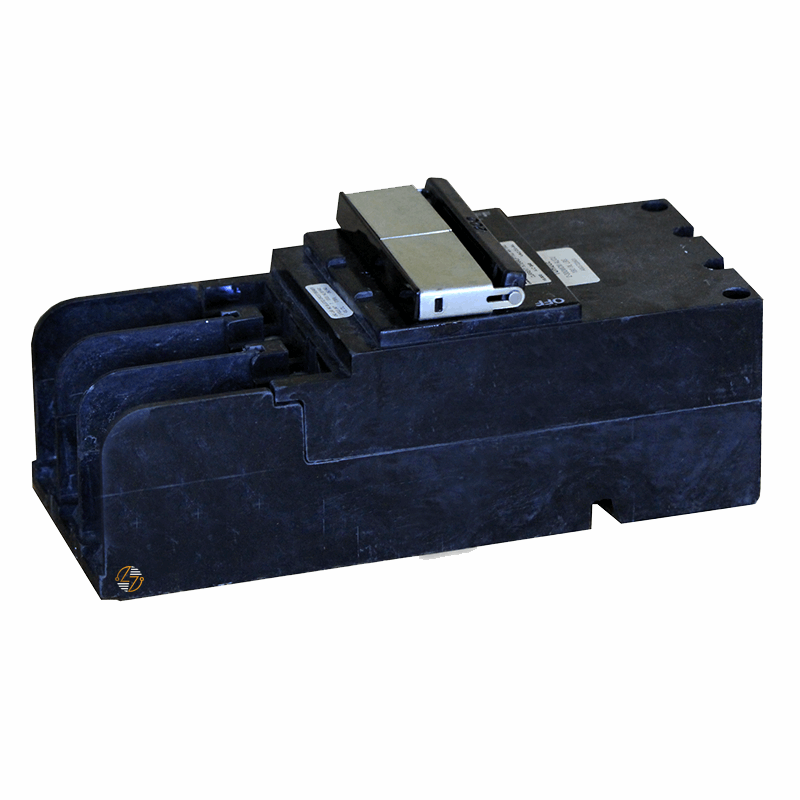

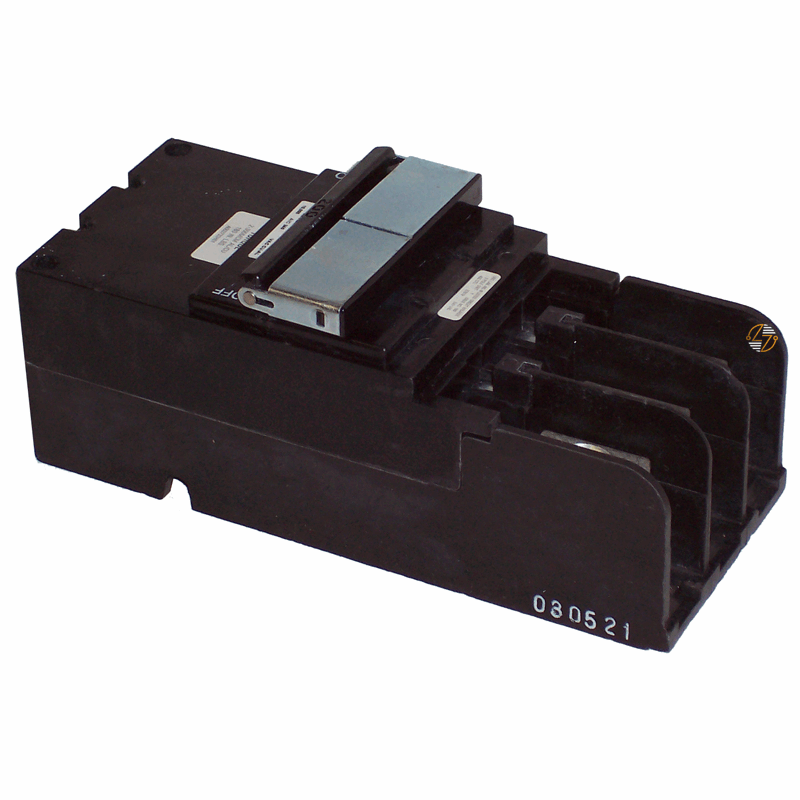

The Eaton BJ3200 is a 200A, 3-pole thermal magnetic circuit breaker used as a main breaker in compatible Eaton BJ-series loadcenters. Rated for 240V AC systems, it features a common-trip design, plug-on mounting, and a 10 kAIC interrupting rating.

If you're matching an existing BJ-series installation, the BJ3200 is designed for loadcenters rated 150 amps or greater and accepts copper or aluminum conductors from #2 AWG to 300 kcmil. It is commonly used for breaker replacement, panel maintenance, and service equipment repairs where a 200A, 3-pole BJ-frame breaker is specified. Like many Eaton breakers installed throughout North America, it was built for long-term service when properly installed and maintained.

Key Features and Benefits

• 200A current rating
• Three-pole configuration
• Thermal magnetic trip unit
• Common-trip operation
• Plug-on mounting design
• Rated for 240V AC systems
• 10 kAIC interrupting rating
• Accepts copper and aluminum conductors
• Wire range: #2 AWG to 300 kcmil
• Compatible with Eaton BJ-series loadcenters
• Used as a main circuit breaker

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BJ3200

• UPC: 786676368452

• Product Type: Thermal Magnetic Circuit Breaker

• Series: BJ

• Type: BJ 1-Inch Plug-On Main Breaker

• Amperage Rating: 200A

• Voltage Rating: 240V AC

• Number of Poles: 3

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Range: #2 AWG to 300 kcmil Cu/Al

• Minimum Loadcenter Requirement: 150A

• Space Requirement: Three 1-inch pole spaces on the left side and three 1-inch pole spaces on the right side of compatible loadcenters

• Dimensions:
  • Length: 8 in.
  • Width: 3.5 in.
  • Height: 3.5 in.
• Weight: 3.2 lbs


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375 Compliant

Where It Works Best

• The Eaton BJ3200 is used in compatible Eaton BJ-series loadcenters for main breaker replacement, panel repairs, service equipment maintenance, and electrical distribution systems requiring a 200A, 3-pole BJ-frame breaker.
