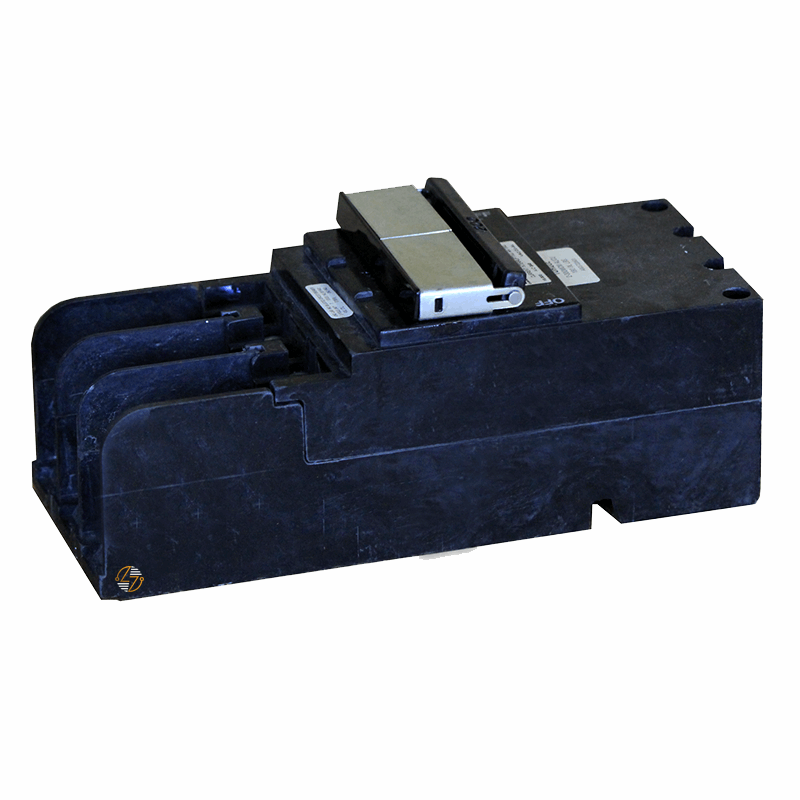

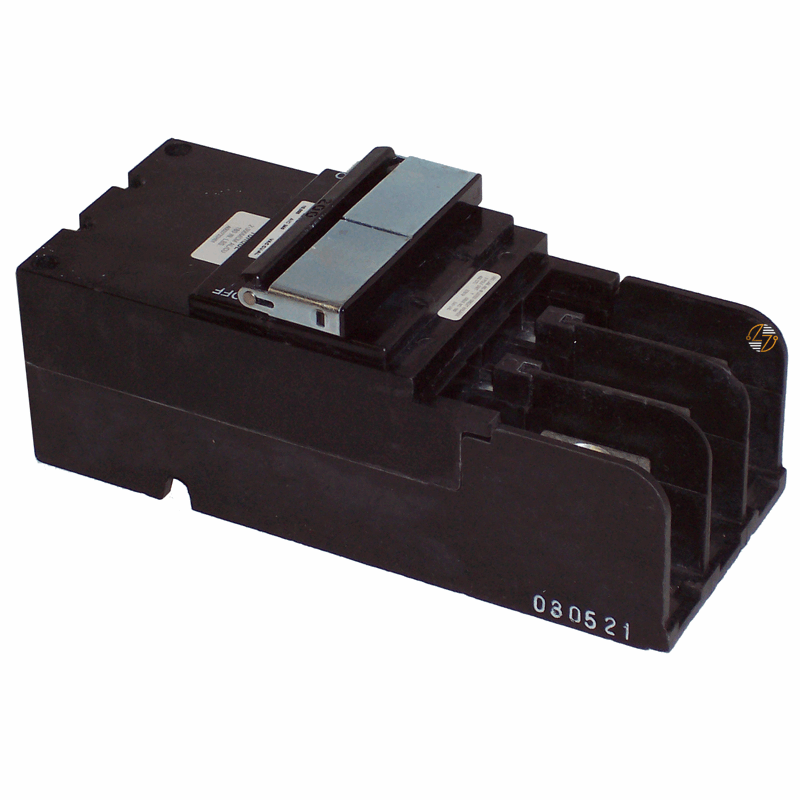

BJ3175 - 175 Amp Circuit Breaker

BJ3175 - 175 Amp Circuit Breaker

The Eaton BJ3175 is a 175A, 3-pole thermal magnetic circuit breaker for compatible Eaton BJ-series loadcenters. Rated for 240V AC systems, it is used as a main breaker in electrical distribution equipment requiring a 175-amp, three-pole configuration.

This breaker features a common-trip design, plug-on mounting, and a 10 kAIC interrupting rating. It accepts copper or aluminum conductors ranging from #2 AWG to 300 kcmil and is intended for use in loadcenters rated 150 amps and above. The BJ3175 is UL 489 listed and is frequently used for your breaker replacement, panel repairs, and service equipment maintenance where a compatible BJ-frame main breaker is required. Built to last, it continues to be used in many existing Eaton electrical systems.

Key Features and Benefits

• 175A current rating
• Three-pole configuration
• Thermal magnetic trip unit
• Common-trip operation
• Plug-on mounting design
• Rated for 240V AC systems
• 10 kAIC interrupting rating
• Accepts copper and aluminum conductors
• Wire range: #2 AWG to 300 kcmil

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BJ3175

• UPC: 786676368407

• Product Type: Thermal Magnetic Circuit Breaker

• Series: BJ

• Type: BJ 1-Inch Plug-On Main Breaker

• Amperage Rating: 175A

• Voltage Rating: 240V AC

• Number of Poles: 3

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Interrupt Rating: 10 kAIC

• Main Circuit Breaker Type: BJ

• Wire Size Range: #2 AWG to 300 kcmil Cu/Al

• Minimum Loadcenter Requirement: 150A

• Space Requirement: Three 1-inch pole spaces on the left side and three 1-inch pole spaces on the right side of compatible loadcenters

• Dimensions:
  • Length: 8 in.
  • Width: 3.5 in.
  • Height: 3.5 in.
• Weight: 3.2 lbs


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375 Compliant

Where It Works Best

• The Eaton BJ3175 is used in compatible Eaton BJ-series loadcenters for main breaker replacement, panel repairs, service equipment maintenance, and electrical distribution systems requiring a 175A, 3-pole BJ-frame breaker.
