BJ3150 - 150Amp Circuit Breaker

BJ3150åÊ- 150Amp Circuit Breaker

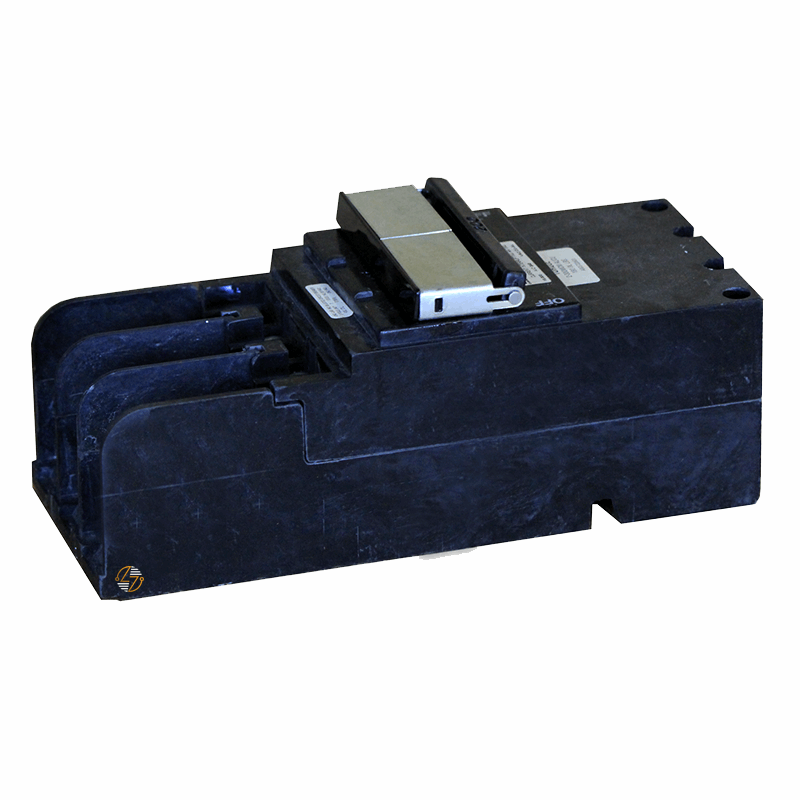

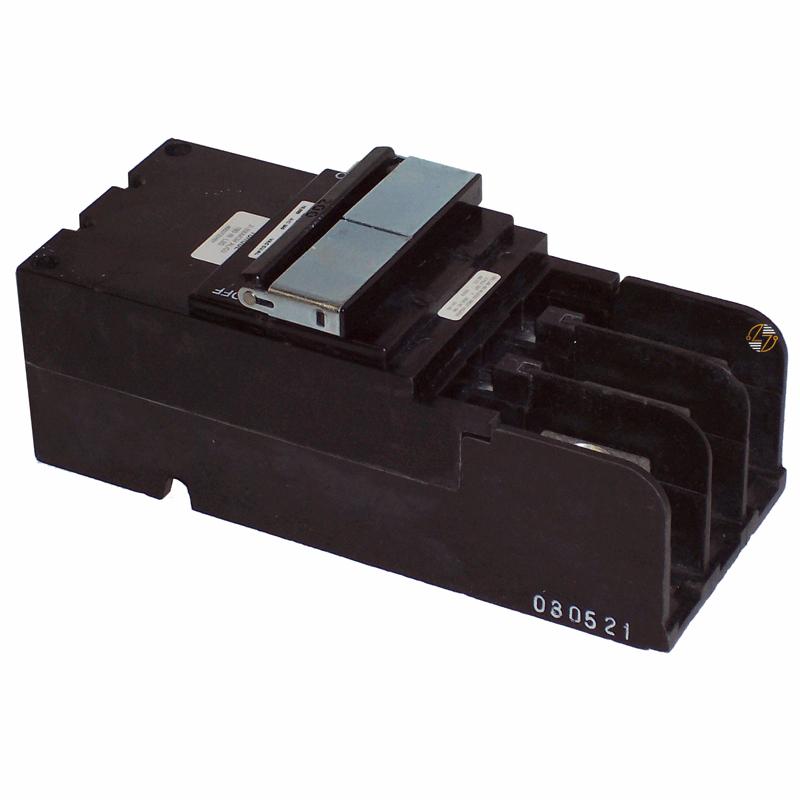

Secure your electrical systems with the robust and reliable Eaton Type BJ 1-Inch Plug-on Main Breaker, model BJ3150. Designed for superior safety and performance, this three-pole circuit breaker offers a compact integration solution with a 150 A amperage rating, ensuring ample coverage for high-demand circuits. Operating at a voltage of 240V, it features an interrupt rating of 10 kAIC, which guarantees protection against high currents and potential electrical hazards.

Key Features and Benefits:

• Easy Installation: The plug-on mounting method simplifies the setup process, making it quick and efficient.
• Robust Tripping Mechanism: Equipped with a common breaker trip, this device provides consistent performance and immediate response to electrical faults, enhancing the safety of your residential or commercial space.
• Wide Wire Compatibility: Accepts wire sizes from #2 AWG to 300 kcmil Cu/Al, offering flexibility in connection options and ensuring compatibility with various wiring requirements.

Technical Specifications:

• Amperage: 150 A
• Voltage: 240V
• Interrupt Rating: 10 kAIC
• Poles: Three-pole
• Mounting Type: Plug-on
• Wire Size: #2 AWG-300 kcmil Cu/Al

Material Compliance and Certifications:

• UL Certified: UL 489 certification affirms the breaker's compliance with safety standards.
• Federal Specifications: Meets Classification W-C375 for assured quality and performance.

Suitability:

• Residential and Commercial Use: Comes with a limited lifetime residential warranty and a 1-year commercial warranty, offering peace of mind for both home and business applications.
• Loadcenter Compatibility: Requires a 150 A loadcenter and occupies six 1-inch pole spaces, making it suitable for substantial electrical systems.

This breaker is not just a necessary safety device but also an investment in the reliability and efficiency of your electrical system. Whether upgrading your home, office, or industrial space, the Eaton BJ3150 offers the performance and peace of mind needed to handle your electrical demands safely.
