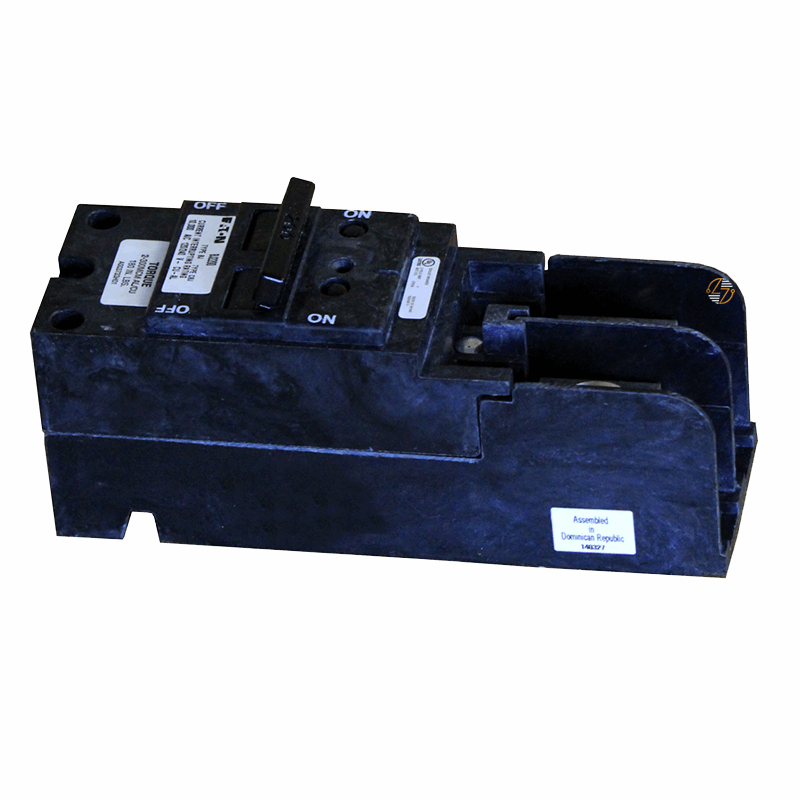

BJ2225 - 225Amp Circuit Breaker

BJ2225 - 225Amp Circuit Breaker

The Eaton BJ2225 is a 225A, 2-pole sub feed main circuit breaker for your Eaton BJ-series loadcenters. Rated for 120/240V AC systems, it is installed in feeder and subpanel applications requiring a 225-amp plug-on main breaker.

This breaker features common-trip operation, causing both poles to open simultaneously during overload or short-circuit conditions. The BJ2225 is found in your residential, multifamily, and light commercial electrical systems where maintaining compatibility with existing Eaton equipment is important. With a 10 kAIC interrupting rating and UL 489 listing, it meets the requirements for many BJ-frame replacement, repair, and maintenance projects. Like many Eaton breakers, it was built for long service life when properly installed and maintained.

Key Features and Benefits

• 225A current rating
• Two-pole configuration
• Common-trip operation
• Plug-on mounting design
• Rated for 120/240V AC systems
• 10 kAIC interrupting capacity
• Accepts copper and aluminum conductors
• Wire range: #2 AWG to 300 kcmil
• Compatible with Eaton BJ-series loadcenters
• Designed for sub feed main breaker applications
• Requires four 1-inch breaker spaces

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BJ2225

• Product Type: Sub Feed Main Circuit Breaker

• Series: BJ

• Frame Type: BJ

• Amperage Rating: 225A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Connection Type: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Range: #2 AWG to 300 kcmil Cu/Al

• Minimum Loadcenter Rating: 150A

• Space Requirement: Four 1-inch breaker spaces

• Dimensions:
  • Length: 6.5 in.
  • Width: 3.5 in.
  • Height: 2.5 in.
• Weight: 1.8 lbs


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375 Compliant

Where It Works Best

• The Eaton BJ2225 is used in Eaton loadcenters for feeder circuits, subpanels, service equipment modifications, maintenance work, and replacement projects requiring a 225A, 2-pole BJ-frame sub feed main circuit breaker.
