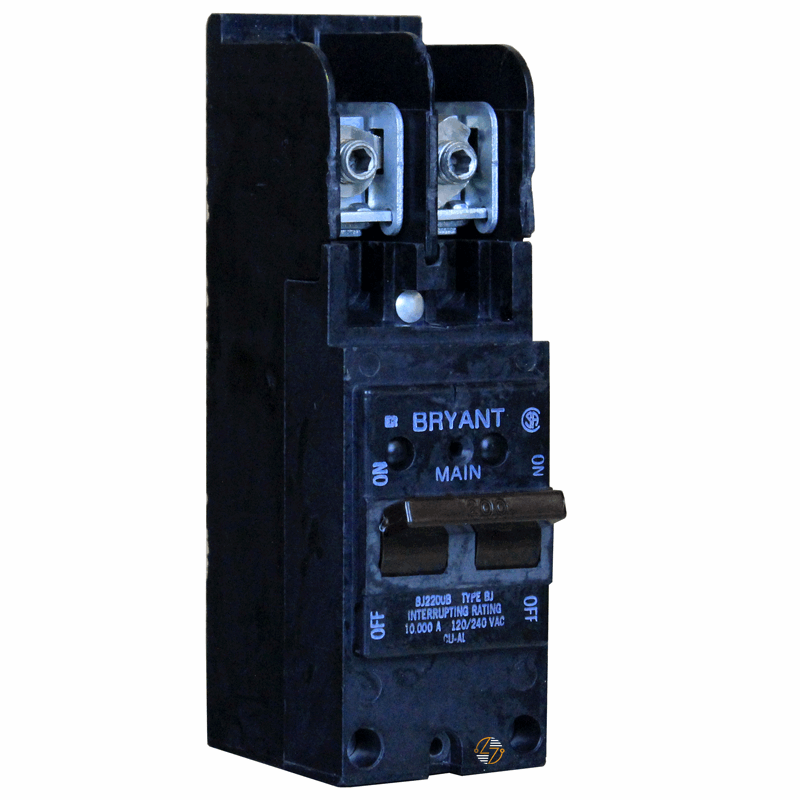

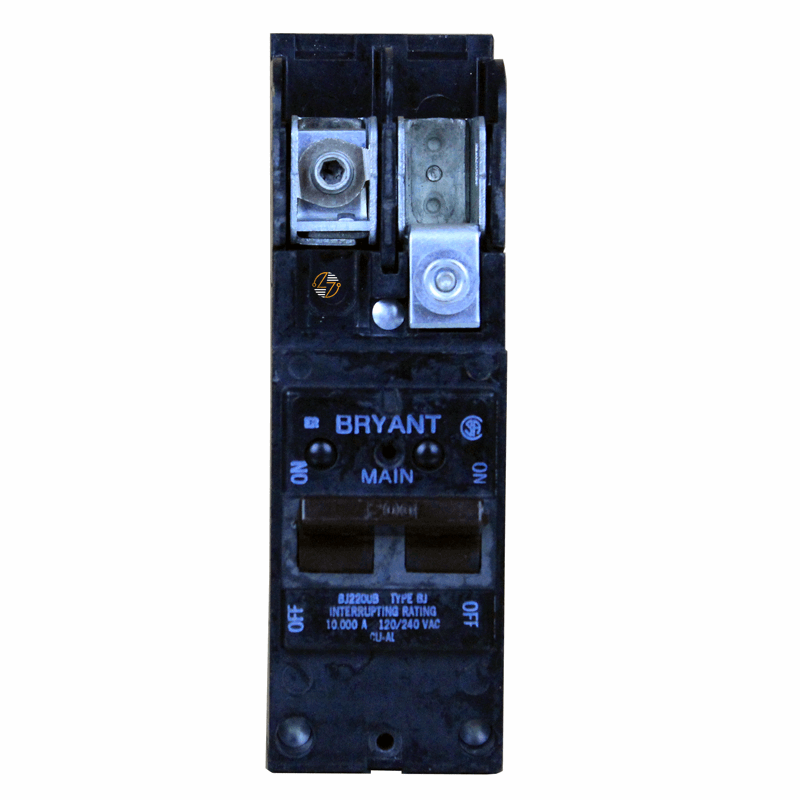

BJ2200B - 200Amp Circuit Breaker

BJ2200B- 200Amp Circuit Breaker

The BJ2200B circuit breaker is a high-performance solution designed for safeguarding electrical systems in both residential and commercial environments. With a robust capacity of 200 amps, this two-pole breaker operates at a voltage rating of 120/240V, ensuring superior protection against electrical overloads and short circuits. The 10 kAIC interrupt rating provides an additional layer of safety for demanding applications.

Key Features and Benefits:

• High Current Capacity: Rated at 200 amps, ideal for heavy-duty applications.
• Durable Construction: Engineered to withstand demanding conditions, ensuring long-lasting reliability.
• Flexible Connectivity: Accepts both copper and aluminum wires, accommodating various installation requirements.
• Safety Compliance: Meets stringent safety standards, offering peace of mind in residential and commercial installations.
• Plug-On Common-Trip: Requires four (4) 1" spaces and features an original lug style with a top swing-open design for easier installation. (Note: This item does not include the retaining screw and 'bar' - please re-use your existing screw and 'bar').

Technical Specifications:

• Amperage Rating: 200A
• Voltage Rating: 120/240V
• Interrupt Rating: 10 kAIC
• Number of Poles: 2
• Mounting Method: Plug-on
• Connection: #2 AWG-300 kcmil Cu/Al
• Dimensions: 2.00"W x 7.25"L x 2.56"D
• Weight: 3.65 lb

Material Compliance and Certifications:

• Compliance: Federal Specifications Classification WC375
• Certifications: UL 489

Suitability:

• The BJ2200B circuit breaker is ideal for both residential and light commercial applications, providing dependable protection for high-demand electrical systems. Its robust design, coupled with strict adherence to safety standards, makes it a preferred choice for ensuring electrical safety and reliability. This breaker is particularly well-suited for new installations and upgrades, offering a versatile and efficient solution for modern electrical requirements.

By leveraging its features and maintaining compliance with rigorous safety and performance standards, the BJ2200B circuit breaker stands out as a premier choice for protecting your electrical systems.
