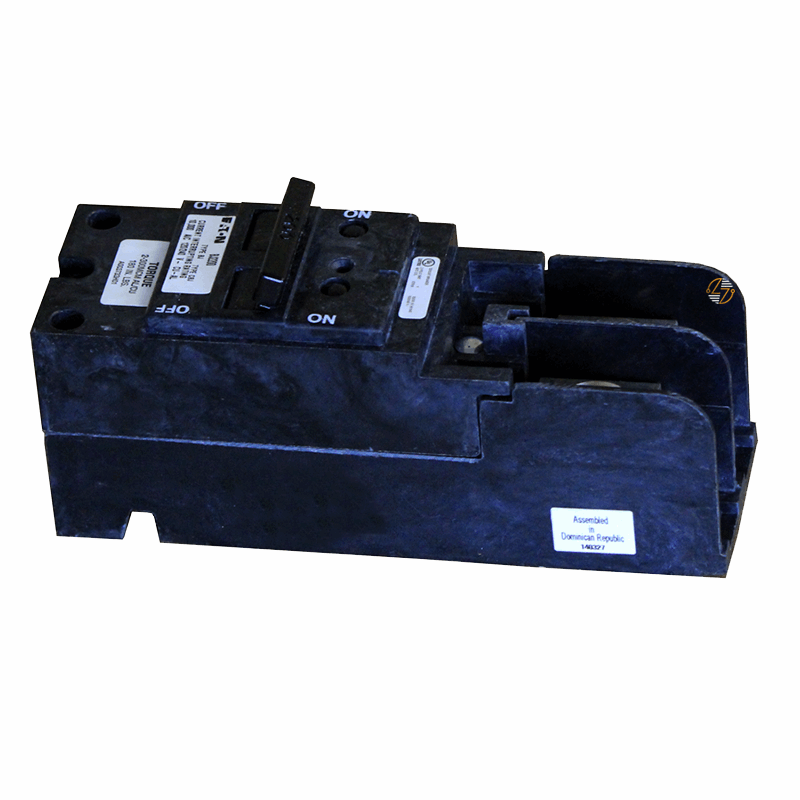

BJ2200 - 200 Amp Circuit Breaker

BJ2200 - 200 Amp Circuit Breaker

The Eaton BJ2200 is a 200A, 2-pole sub feed main breaker designed for your BJ-series Eaton loadcenters rated 150A and above. It’s rated for 120/240V AC and features a plug-on design with common-trip operation and a 10 kAIC interrupting capacity.

The breaker fits copper or aluminum conductors from #2 AWG to 300 kcmil and occupies two 1-inch pole spaces.

Key Features and Benefits

• 200A current rating
• Two-pole common-trip operation
• Plug-on mounting for quick installation
• 120/240V AC rating
• 10 kAIC interrupting capacity
• Works with copper or aluminum conductors (#2 AWG – 300 kcmil)
• Uses two 1-inch pole spaces
• Ideal for sub feed main breaker applications

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BJ2200

• Product Type: Sub Feed Main Circuit Breaker

• Frame Type: BJ

• Amperage Rating: 200A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Connection Type: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Range: #2 AWG – 300 kcmil Cu/Al

• Pole Space Requirement: Two 1-inch pole spaces

• Dimensions:
  • Length: 6.5"
  • Width: 3.5"
  • Height: 2.5"
• Weight: 1.8 lbs


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375 Compliant

Where It Works Best

• The BJ2200 is suited for residential and light commercial loadcenters, including subpanels, feeder circuits, service upgrades, and loadcenter replacements requiring a 200A, 2-pole plug-on sub feed main breaker.
