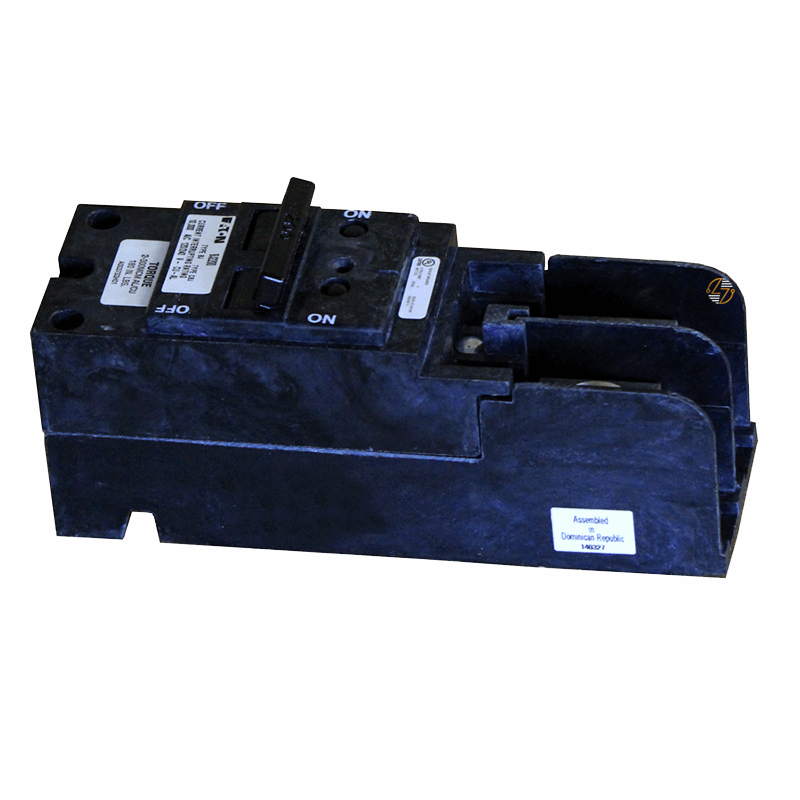

BJ2175 - 175 Amp Circuit Breaker

BJ2175 - 175 Amp Circuit Breaker

The Eaton BJ2175 is a 175A, 2-pole sub feed main circuit breaker for your Eaton BJ-series loadcenters rated 150 amps and higher. Rated for 120/240V AC systems, it features a plug-on connection, common-trip operation, and a 10 kAIC interrupting rating.

Key Features and Benefits

• 175A current rating
• Two-pole configuration
• Common-trip operation
• Plug-on mounting
• 120/240V AC rating
• 10 kAIC interrupting capacity
• Accepts copper or aluminum conductors
• Wire range: #2 AWG to 300 kcmil
• Uses two 1-inch pole spaces
• Sub feed main breaker design

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BJ2175

• Product Type: Sub Feed Main Circuit Breaker

• Frame Type: BJ

• Amperage Rating: 175A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Connection Type: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Range: #2 AWG – 300 kcmil Cu/Al

• Pole Space Requirement: Two 1-inch pole spaces

• Dimensions:
  • Length: 6.5"
  • Width: 3.5"
  • Height: 2.5"
• Weight: 1.8 lbs


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375 Compliant

Where It Works Best

• The Eaton BJ2175 is used in residential and light commercial loadcenters for feeder circuits, subpanels, service upgrades, and breaker replacement projects requiring a 175A, 2-pole plug-on sub feed main circuit breaker.
