BGA34125Y - 125Amp Circuit Breaker

BGA34125Y - 125Amp Circuit Breaker

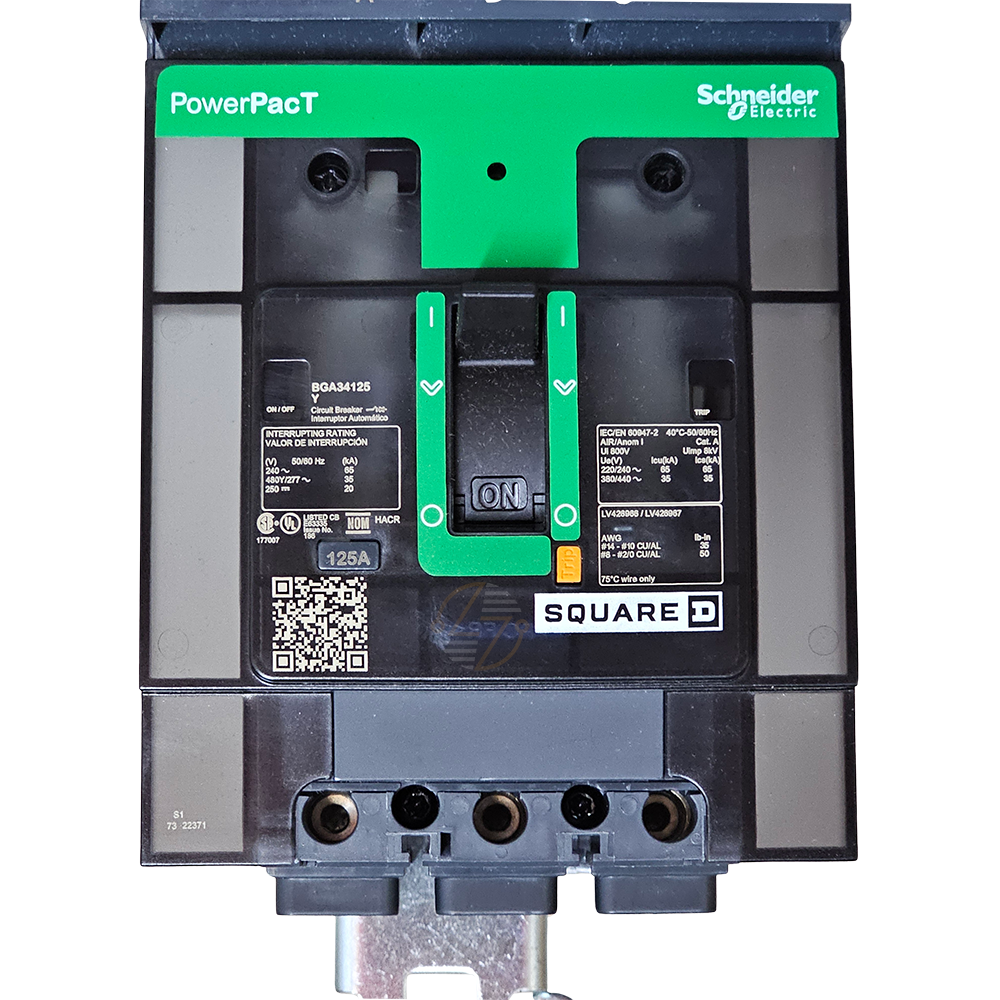

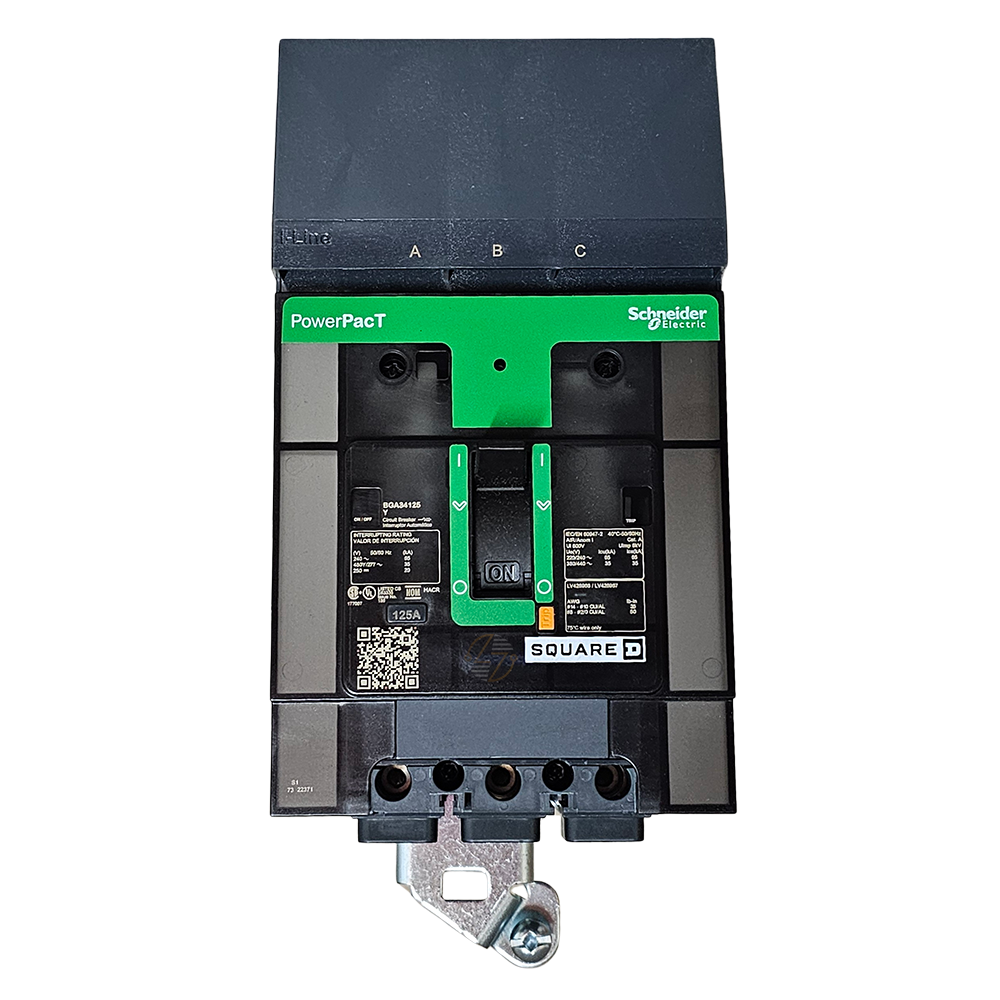

Elevate the safety and efficiency of your power distribution systems with the Schneider Electric PowerPacT BGA34125Y circuit breaker. Featuring advanced thermal magnetic technology, this 125A, 3-pole circuit breaker is built to deliver outstanding performance, even in high-demand environments. With a breaking capacity of 18kA at 600Y/347VAC, it is designed to handle short-circuit faults with ease, ensuring the protection of your critical infrastructure. Its compact size, robust construction, and compatibility with I-Line systems make it a reliable and adaptable solution for industrial and commercial applications.

Key Features and Benefits

• High Performance in a Compact Form: Combines robust circuit protection with a space-efficient design, ideal for installations where space is limited.
• Enhanced Safety: Dual-break rotating contacts reduce peak current during fault conditions, while the push-to-trip button allows manual tripping for easy control.
• Exceptional Durability: Rated for 20,000 mechanical cycles and 10,000 electrical cycles, ensuring longevity in rigorous applications.
• Environmentally Friendly: Manufactured with recycled materials and free of PVC, this product meets sustainability goals with eco-friendly packaging.
• Accessory Compatibility: Supports a variety of auxiliaries, voltage releases, and alarm switches, making it highly adaptable to different operational requirements.


Technical Specifications

• Rated Current: 125A

• Poles: 3P

• Breaking Capacity: 18kA at 600Y/347VAC

• Continuous Current Rating: 80%

• Voltage Ratings: Supports operational voltage up to 525V and 8kV impulse withstand voltage.

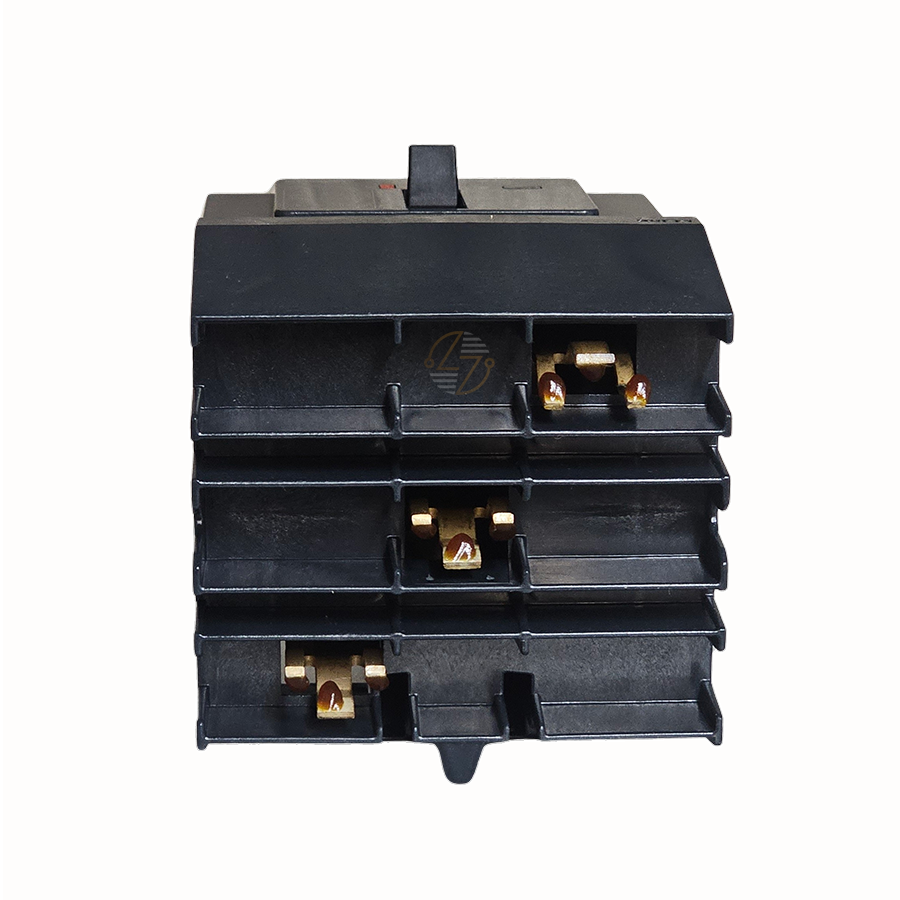

• Mounting Options: I-Line connections on the line side and mechanical lugs on the load side.

• Dimensions: 5.4 in. (H) x 3.2 in. (W) x 3.5 in. (D); Net weight: 2.9 lbs.


Material Compliance and Certifications

• Global Standards Compliance: Meets UL 489, CSA C22.2, NOM, IEC 60947-2, and CE requirements.
• Environmentally Responsible: RoHS and REACh compliant, ensuring reduced environmental impact.
• Protection Ratings: IP40 and IK07 ratings offer resistance to dust ingress and mechanical impact, making it suitable for demanding environments.


Suitability

• The PowerPacT BGA34125Y circuit breaker is perfectly suited for industrial and commercial applications, including HACR-rated systems, where high fault tolerance and compact design are critical. With the ability to operate at altitudes up to 6,561 feet without derating, it is a dependable solution for diverse and challenging environments. This circuit breaker is the ultimate choice for those seeking a blend of safety, performance, and sustainability in their power systems.
