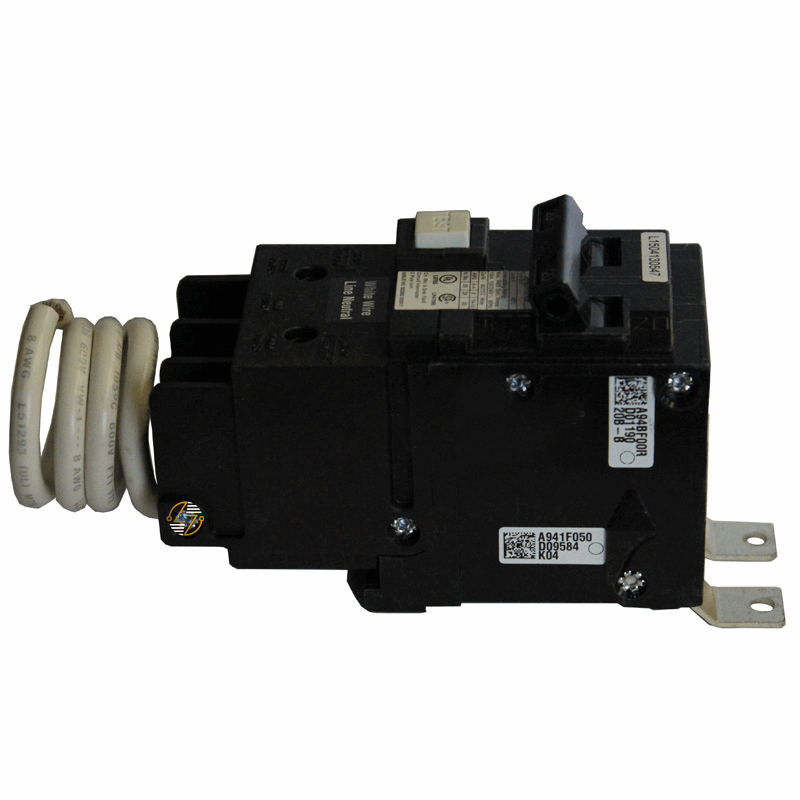

BF215A - 15Amp Circuit Breaker

BF215A - 15Amp Circuit Breaker

The Siemens BF215A is a 15 amp, 2-pole GFCI circuit breaker for your 120/240V electrical systems. It combines thermal-magnetic protection and 5 mA ground fault protection in a single breaker, helping you protect circuits from overloads, short circuits, and ground faults. The BF215A fits compatible Siemens panelboards and is often used when replacing an existing breaker with matching electrical ratings.

With a 10kAIC interrupting rating, this breaker is found in a wide range of commercial and industrial applications where GFCI protection is required. The bolt-on design allows it to fit designated panelboard assemblies without changing the existing layout. Like many Siemens molded case breakers, it was built for years of service in properly maintained electrical systems.

Key Features and Benefits

• 15A current rating
• 2-pole configuration
• 120/240VAC operation
• 5 mA GFCI protection
• Thermal-magnetic trip mechanism
• Protection against overloads, short circuits, and ground faults
• 10kAIC interrupting capacity
• Bolt-on mounting design
• Fits compatible Siemens panelboards
• Combines circuit and ground fault protection in one device


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BF215A

• Series: BLF

• Product Type: GFCI Circuit Breaker

• Amperage Rating: 15A

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kAIC

• Ground Fault Trip Level: 5 mA

• Trip Type: Thermal-Magnetic

• Dimensions:
  • Length: 7.874 in.
  • Width: 1.969 in.
  • Height: 2.756 in.
• Weight: 0.992 lb

• UPC: 887621215378

• Country of Origin: Philippines


Material Compliance and Certifications

• UL 943 Listed
• Suitable for GFCI protection applications
• Manufactured for use in electrical distribution equipment
• Meets applicable installation and electrical code requirements


Where It Works Best

• The BF215A is used in commercial buildings, schools, healthcare facilities, workshops, utility rooms, maintenance areas, and industrial locations where 120/240V GFCI protection is required.
