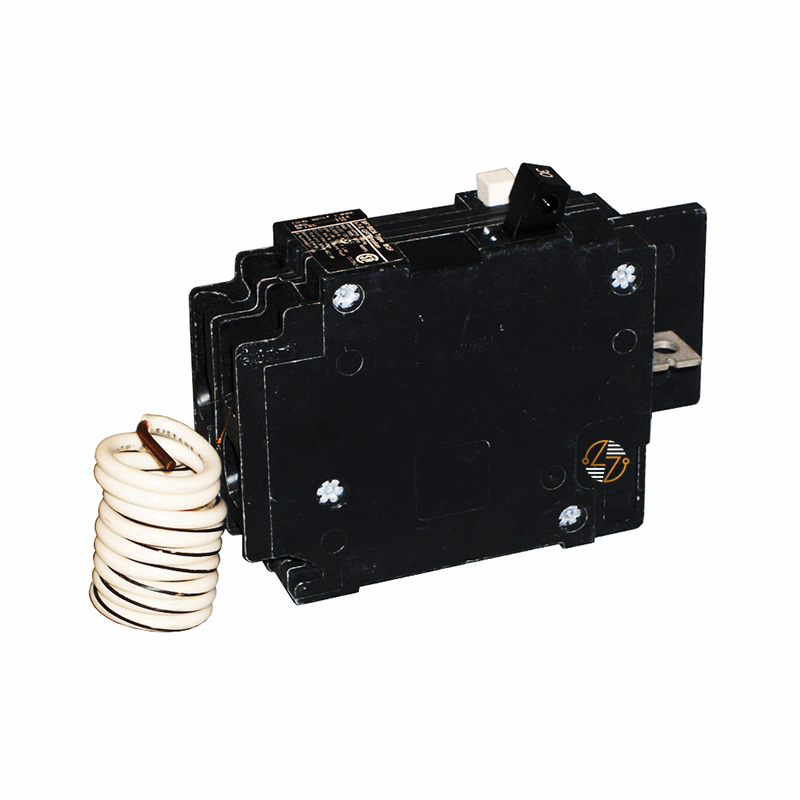

BF1B030 - 30Amp Circuit Breaker

BF1B030 - 30Amp Circuit Breaker

The BF1B030 is a 30 amp, 1-pole GFCI circuit breaker for your 120VAC electrical systems. It features a bolt-on design and is intended for use in compatible panelboards. Combining overcurrent protection and ground fault protection in one device, it is commonly used in applications where GFCI protection is required.

Rated 10kAIC at 120VAC, the BF1B030 is often installed in commercial, institutional, and industrial electrical systems. It is frequently used for maintenance and replacement projects where matching the original breaker's amp rating, pole configuration, interrupting capacity, and mounting style is important. The molded case construction is designed for use in 40°C ambient environments and everyday electrical distribution applications.

Key Features and Benefits

• 30A current rating
• Single-pole configuration
• 120VAC operation
• Ground Fault Circuit Interruption (GFCI) protection
• Bolt-on mounting design
• 10kAIC interrupting rating
• Molded case construction
• Compatible with designated panelboard applications
• Combines overcurrent and ground fault protection
• Rated for 40°C ambient conditions


Technical Specifications

• Part Number: BF1B030

• Type: BQF

• Product Type: GFCI Circuit Breaker

• Amperage Rating: 30A

• Poles: 1

• Voltage Rating: 120VAC

• Interrupting Rating: 10kAIC @ 120VAC

• Mounting Style: Bolt-On

• Height: 4.0 in.

• Width: 1.0 in.

• Depth: 3.5 in.

• Dimensions: 1.00"W × 4.00"L × 3.50"D

• Approximate Shipping Weight: 2.1 lbs.

• Ambient Temperature Rating: 40°C


Material Compliance and Certifications

• Suitable for ground fault protection applications
• Intended for use in compatible electrical distribution equipment
• Designed for installation in accordance with applicable electrical codes
• Manufactured for molded case circuit breaker applications


Where It Works Best

• The BF1B030 is commonly used in commercial buildings, schools, healthcare facilities, workshops, utility rooms, maintenance departments, and industrial facilities where 120VAC GFCI protection is required. It is often selected when replacing an existing breaker and maintaining compatibility with the original electrical system.
