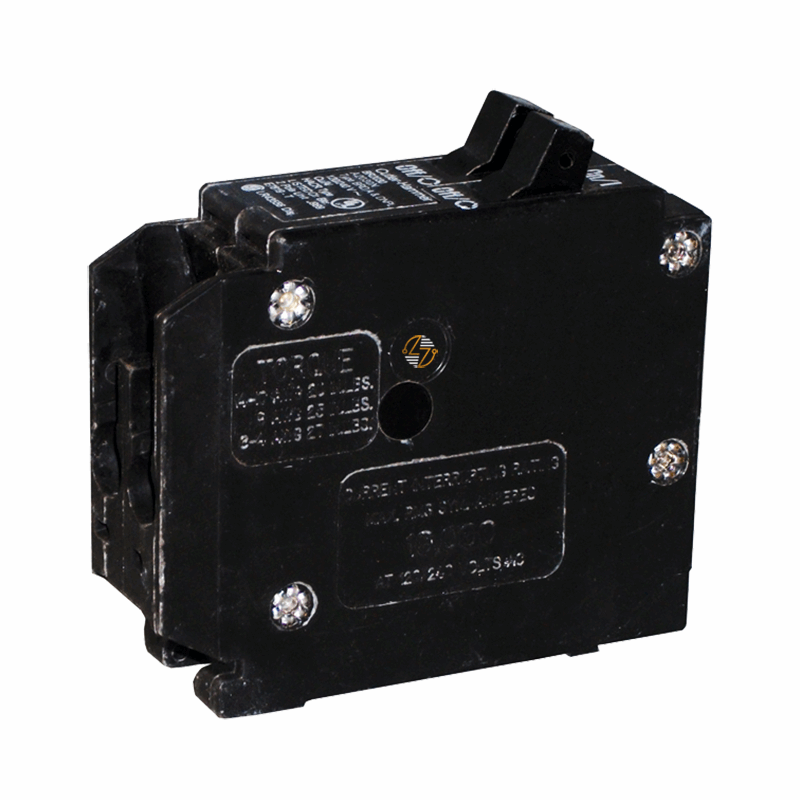

BD3030 - Duplex 30/30 Circuit Breaker

BD3030 - Duplex 30/30 Circuit Breaker

Experience exceptional protection and performance with the Eaton BR Thermal Magnetic Circuit Breaker, Model BD3030. Designed for residential and light commercial applications, this Type BD 1-Inch CTL plug-on breaker is essential for safeguarding electrical systems. Its advanced thermal magnetic technology ensures responsive protection against electrical faults, making it an invaluable safeguard for your electrical installations. Rated for up to 30-30 A and 120V, the BD3030 supports wire sizes from #14 to 4 AWG Cu/Al, ensuring versatile compatibility with a wide range of wiring configurations.

Key Features and Benefits:

• Dual 30A Single-pole Breaker: Offers robust capacity for handling high current loads, ensuring optimal performance and reliability.
• Thermal Magnetic Protection: Provides enhanced protection against short circuits and overloads, ensuring the safety and longevity of electrical circuits.
• Compact Design: At just 1 inch wide, it allows for easy installation in Eaton Type BR load centers, perfect for optimizing space in electrical panels.
• Rejection Tab Feature: Prevents accidental installation in incompatible load centers, enhancing safety and compliance.

Technical Specifications:

• Amperage Rating: Dual 30A
• Voltage Rating: 120V
• Interrupt Rating: 10 kAIC
• Pole Type: Single-pole
• Mounting Method: Plug-on
• Wire Size: #14-4 AWG Cu/Al

Material Compliance and Certifications:

• Complies with Federal Specifications Classification W-C375, ensuring that it meets rigorous government standards for safety and reliability.
• Certified under UL 489 standard, guaranteeing performance and quality.

Suitability:

• Ideal for residential and commercial settings requiring reliable circuit protection.
• Compatible exclusively with Eaton Type BR Loadcenters, designed for dependable power distribution and circuit protection.

Upgrade your electrical system with the Eaton BR BD3030, a circuit breaker that combines efficiency, safety, and cutting-edge technology.
