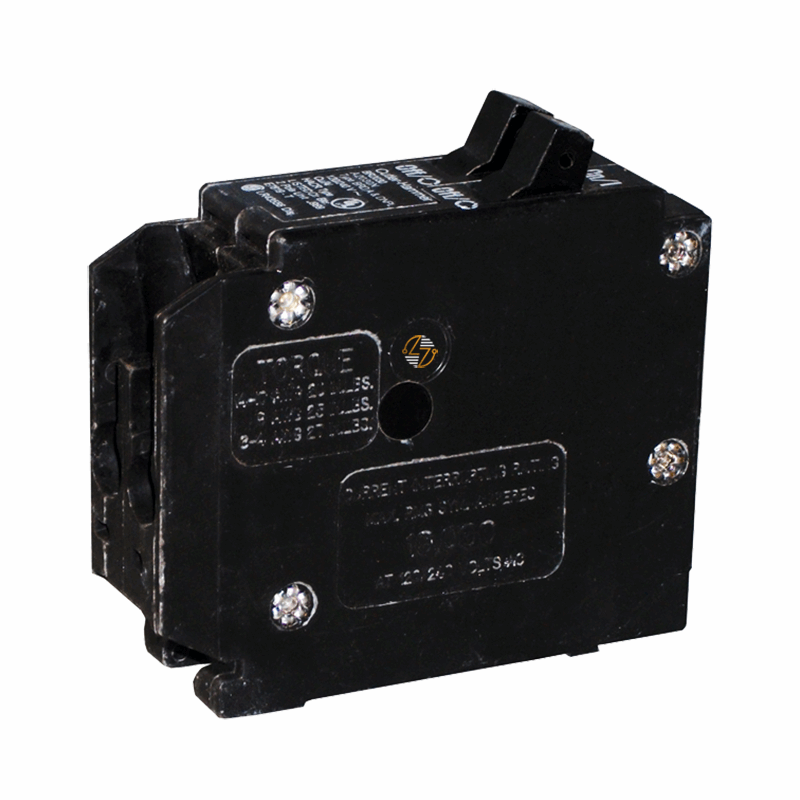

BD3020 - Duplex 30/20 Circuit Breaker

BD3020 - Duplex 30/20 Circuit Breaker

Enhance the safety and efficiency of your residential or commercial property with the Eaton BR BD3020 Thermal Magnetic Circuit Breaker. Engineered for reliability, this single-pole plug-on breaker offers exceptional circuit protection with its robust 30-20 ampere configuration, ideal for diverse electrical needs. It operates at a voltage rating of 120V, ensuring compatibility with standard electrical setups and an interrupt rating of 10 kAIC for superior fault current interruption.

Key Features and Benefits:

• Dual Amperage: This breaker combines a 30A and 20A circuit in one unit, providing versatile application with less space usage.
• Rejection Tab Feature: Increases safety by preventing the insertion into non-compatible load centers.
• Compact Design: Measuring just 2 inches in length, 1 inch in width, and 3 inches in height, it is designed to save space while delivering powerful performance.
• High Compatibility: Suitable for use with Type BR Loadcenters, enhancing its adaptability across various installations.

Technical Specifications:

• Type: BD 1-Inch CTL plug-on breaker
• Voltage Rating: 120 V
• Amperage Rating: 30A and 20A
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Cu/Al

Material Compliance and Certifications:

• Certified: UL 489 listed for guaranteed performance and safety.
• Compliance: Meets Federal Specifications Classification W-C375, ensuring its suitability for government and private sector use.

Suitability:

• Residential and Commercial Use: Ideal for both home and commercial applications, providing a reliable solution for managing circuit loads effectively.
• HACR Rated: Can be used in heating, air-conditioning, and refrigeration equipment applications, demonstrating its versatility.

This Eaton BR BD3020 circuit breaker is a top choice for contractors and homeowners looking for a dependable solution to protect electrical circuits from overload and short circuits. Its robust construction and compliance with stringent safety standards ensure it stands out in the market for circuit protection solutions.
