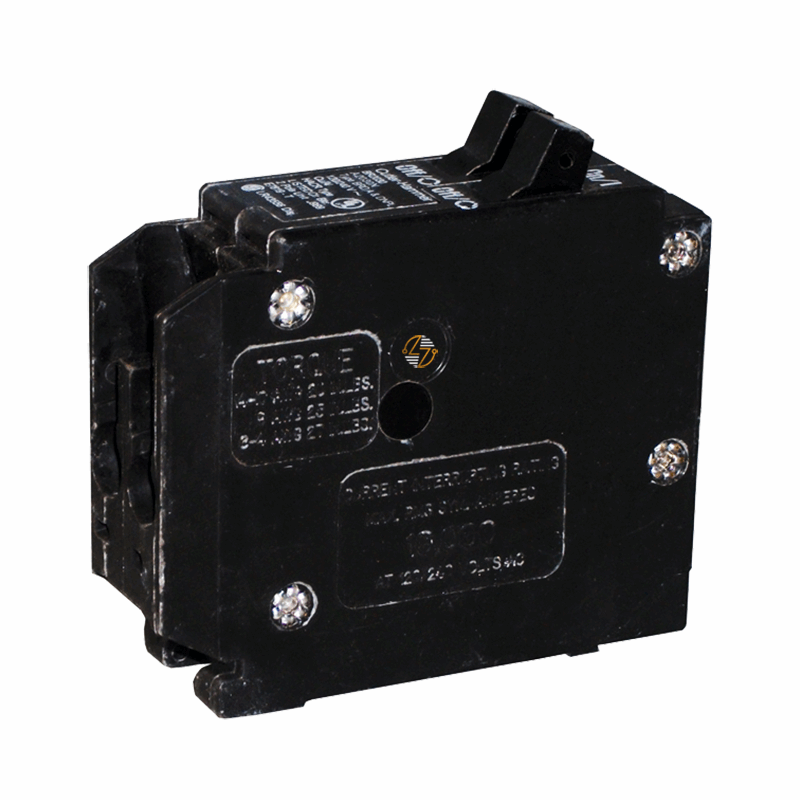

BD2020 - Duplex 20/20 Circuit Breaker

BD2020 - Duplex 20/20 Circuit Breaker

The Eaton BD2020 is a space-saving duplex circuit breaker designed for Eaton Type BR loadcenters. It combines two 20 amp single-pole breakers into a compact one-inch design, making it a practical option when additional circuits are needed without using extra panel space.

Built with thermal magnetic protection, the BD2020 helps protect your wiring and connected equipment from overloads and short circuits. The plug-on design keeps installation simple, while the built-in rejection tab helps ensure proper compatibility with approved panels. Its HACR rating also supports use in HVAC and refrigeration applications.

The BD2020 is commonly used in residential panels, light commercial electrical systems, and branch circuit applications where dependable protection and efficient use of panel space are important.

Key Features and Benefits

• Duplex breaker with two 20 amp circuits: Designed to provide dependable circuit protection while maximizing panel space.
• Compact one-inch design: Helps add additional circuits without taking up extra panel space.
• 120V voltage rating: Designed for standard 120V electrical applications.
• Plug-on mounting: Allows for simple and efficient installation.
• Designed for Eaton Type BR loadcenters: Helps ensure proper compatibility with approved loadcenters.
• 10 kAIC interrupt rating: Provides dependable protection during fault conditions.
• HACR rated: Suitable for HVAC and refrigeration equipment applications.
• Includes rejection tab feature: Helps ensure proper compatibility with approved panels.
• Helps protect against overloads and short circuits: Supports safe and reliable electrical performance.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BD2020

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BR / BD Duplex

• Number of Poles: Single-Pole Duplex

• Amperage Rating: (2) 20A

• Voltage Rating: 120V

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Wire Size: #14-4 AWG Cu/Al

• Dimensions:
  • Depth: 3 in.
  • Height: 1 in.
  • Width: 1.6 in.
• Product Weight: 0.37 lb


Material Compliance and Certifications

• UL 489 Listed: Manufactured to meet applicable UL safety standards for electrical protection devices.
• Federal Specifications Classification W-C375: Built to meet applicable federal electrical equipment classifications.
• HACR Rated: Suitable for HVAC and refrigeration equipment applications.


Where It Works Best

• The Eaton BD2020 works well in Eaton Type BR loadcenters, residential electrical panels, light commercial electrical systems, HVAC and refrigeration equipment, and branch circuit applications where dependable protection and efficient use of panel space are important.
