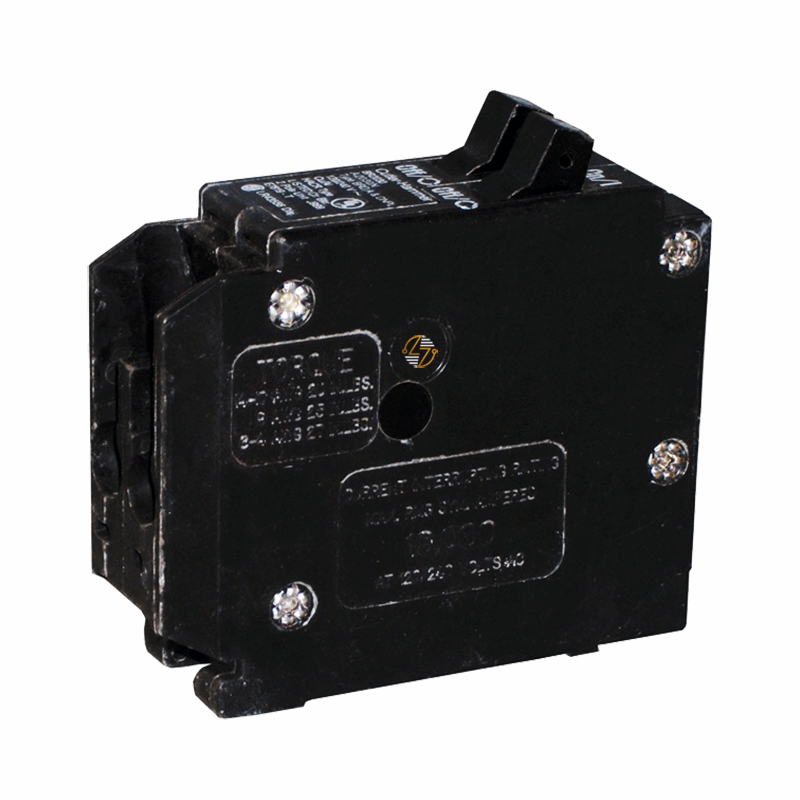

The Eaton BD1520 is a space-saving duplex circuit breaker designed for Eaton Type BR loadcenters. It combines one 15 amp and one 20 amp single-pole breaker into a compact one-inch design, making it a practical option when additional circuits are needed without taking up extra panel space.

Built with thermal magnetic protection, the BD1520 helps protect your wiring and connected equipment from overloads and short circuits. The plug-on design allows for straightforward installation, while the built-in rejection tab helps ensure compatibility with approved panels. Its HACR rating also supports use in HVAC and refrigeration applications.

The BD1520 is commonly used in residential panels, light commercial electrical systems, and branch circuit applications where dependable protection and efficient panel space matter.

Key Features and Benefits

• Duplex breaker with one 15 amp and one 20 amp circuit: Designed to provide dependable circuit protection while maximizing panel space.
• Compact one-inch design: Helps add additional circuits without taking up extra panel space.
• 120V voltage rating: Designed for standard 120V electrical applications.
• Plug-on mounting: Allows for straightforward and efficient installation.
• Designed for Eaton Type BR loadcenters: Helps ensure proper compatibility with approved loadcenters.
• 10 kAIC interrupt rating: Provides dependable protection during fault conditions.
• HACR rated: Suitable for HVAC and refrigeration equipment applications.
• Includes rejection tab feature: Helps ensure compatibility with approved panels.
• Helps protect against overloads and short circuits: Supports safe and reliable electrical performance.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BD1520

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BR / BD Duplex

• Number of Poles: Single-Pole Duplex

• Amperage Rating: (1) 15A, (1) 20A

• Voltage Rating: 120V

• Interrupt Rating: 10 kAIC

• Mounting Method: Plug-On

• Wire Size: #14-4 AWG Cu/Al

• Dimensions:
  • Depth: 2.9 in.
  • Height: 2.6 in.
  • Width: 1 in.
• Product Weight: 0.35 lb


Material Compliance and Certifications

• UL 489 Listed: Manufactured to meet applicable UL safety standards for electrical protection devices.
• Federal Specifications Classification W-C375: Built to meet applicable federal electrical equipment classifications.
• HACR Rated: Suitable for HVAC and refrigeration equipment applications.


Where It Works Best

• The Eaton BD1520 works well in Eaton Type BR loadcenters, residential electrical panels, light commercial electrical systems, HVAC and refrigeration equipment, and branch circuit applications where dependable protection and efficient panel space are important.
