BAB3100HS - 100Amp Circuit Breaker

BAB3100HS - 100Amp Circuit Breaker

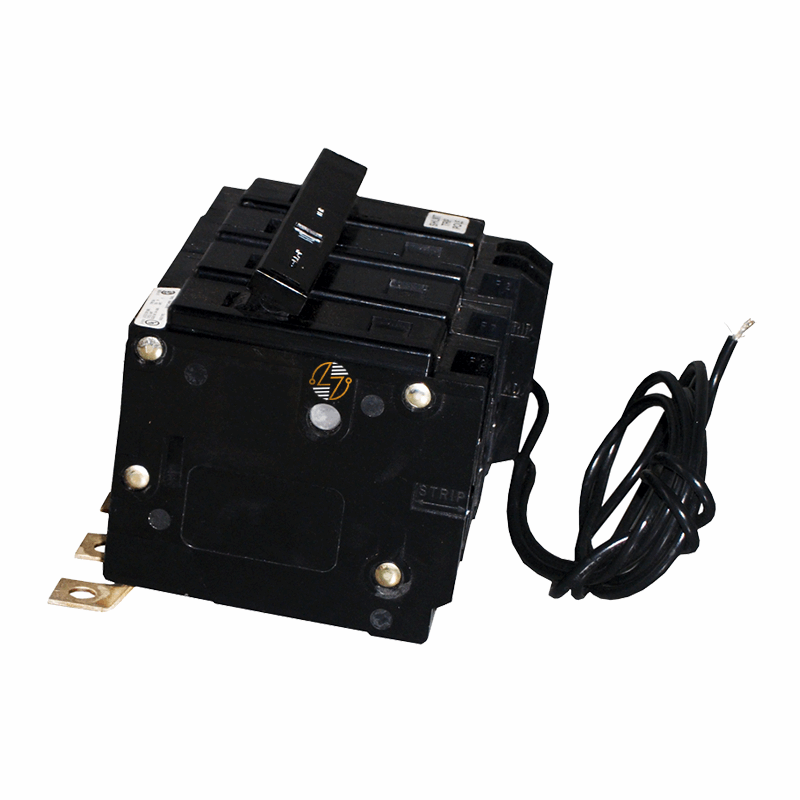

The Eaton BAB3100HS circuit breaker is built for commercial and industrial 240V electrical systems that require dependable circuit protection. Rated at 100 amps, this three-pole breaker helps protect your wiring and connected equipment from overloads and short circuits.

The BAB3100HS is commonly used in commercial panels, industrial distribution systems, motor controls, and other three-phase electrical applications where reliable protection is important.

Key Features and Benefits

• 100 amp thermal magnetic circuit breaker: Designed to provide reliable circuit protection for commercial and industrial electrical systems.
• Three-pole configuration: Suitable for three-phase electrical applications.
• 240V voltage rating: Designed for use in commercial and industrial 240V electrical systems.
• 10 kAIC interrupt rating: Provides dependable protection during fault conditions.
• Bolt-on mounting: Ensures secure installation in compatible panels.
• Eaton Quicklag industrial breaker: Utilizes Eaton’s Quicklag thermal magnetic technology for reliable performance.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration equipment applications.
• Helps protect against overloads and short circuits: Provides dependable electrical protection for demanding applications.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3100HS

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 3

• Amperage Rating: 100 Amps

• Voltage Rating: 240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 4 in.
  • Height: 3.3 in.
  • Width: 3.7 in.
• Product Weight: 1.25 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed: Manufactured to meet applicable UL safety standards for electrical protection devices.
• CSA Certified: Certified for compliance with recognized Canadian safety standards.
• HACR Rated: Suitable for HVAC and refrigeration equipment applications.


Where It Works Best

• The Eaton BAB3100HS works well in commercial electrical panels, industrial distribution systems, HVAC and refrigeration equipment, motor control applications, and three-phase electrical systems where dependable circuit protection is required.
