BAB3090HS - 90Amp Circuit Breaker

BAB3090HS - 90Amp Circuit Breaker

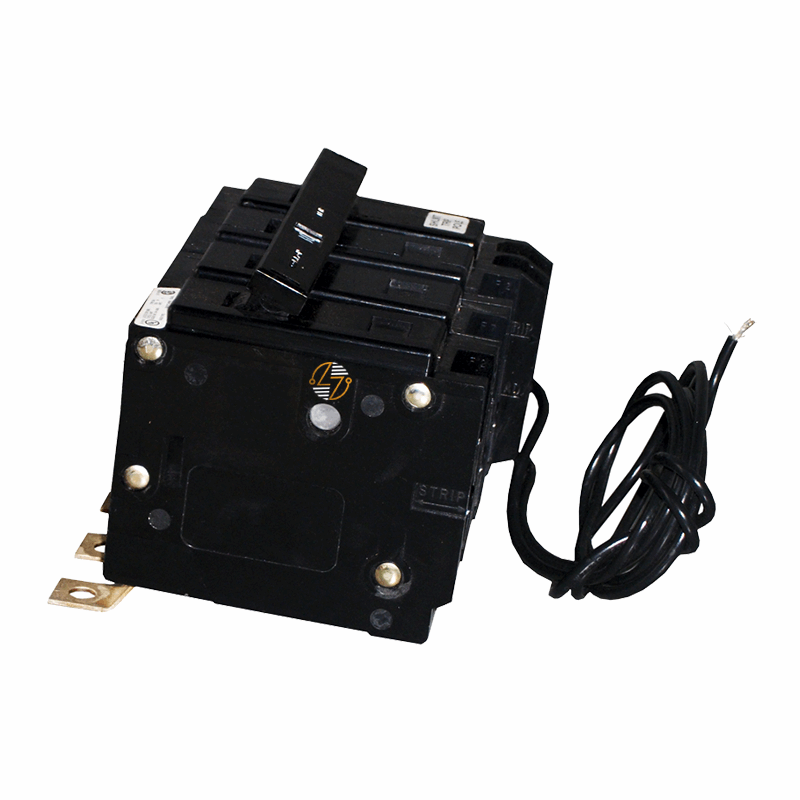

The Eaton BAB3090HS circuit breaker is designed for commercial and industrial 240V electrical systems that require dependable circuit protection. Rated at 90 amps, this three-pole breaker helps protect your wiring and connected equipment from overloads and short circuits.

Built as part of Eaton’s Quicklag breaker series, the BAB3090HS features thermal magnetic trip protection and a bolt-on mounting design for a secure fit in compatible panelboards. Its HACR rating also makes it suitable for HVAC and refrigeration systems where steady electrical performance is important.

The BAB3090HS is commonly used in commercial panels, industrial distribution equipment, motor control systems, and three-phase electrical applications.

Key Features and Benefits

• 90 amp thermal magnetic circuit breaker: Designed to provide reliable circuit protection for commercial and industrial electrical systems.
• Three-pole configuration: Suitable for three-phase electrical applications.
• 240V voltage rating: Designed for use in commercial and industrial 240V electrical systems.
• 10 kAIC interrupt rating: Provides dependable protection during fault conditions.
• Bolt-on mounting: Ensures secure installation in compatible panels.
• Eaton Quicklag industrial breaker: Utilizes Eaton’s Quicklag thermal magnetic technology for reliable performance.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration equipment applications.
• Helps protect against overloads and short circuits: Provides dependable electrical protection for demanding applications.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3090HS

• Breaker Type: BAB Thermal Magnetic

• Number of Poles: 3

• Amperage Rating: 90 Amps

• Voltage Rating: 240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 4.1 in.
  • Height: 3.2 in.
  • Width: 3.7 in.
• Product Weight: 1.2 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed: Manufactured to meet applicable UL safety standards for electrical protection devices.
• CSA Certified: Certified for compliance with recognized Canadian safety standards.
• HACR Rated: Suitable for HVAC and refrigeration equipment applications.


Where It Works Best

• The Eaton BAB3090HS works well in commercial electrical panels, industrial distribution systems, HVAC and refrigeration equipment, motor control applications, and three-phase electrical systems where dependable circuit protection is required.
