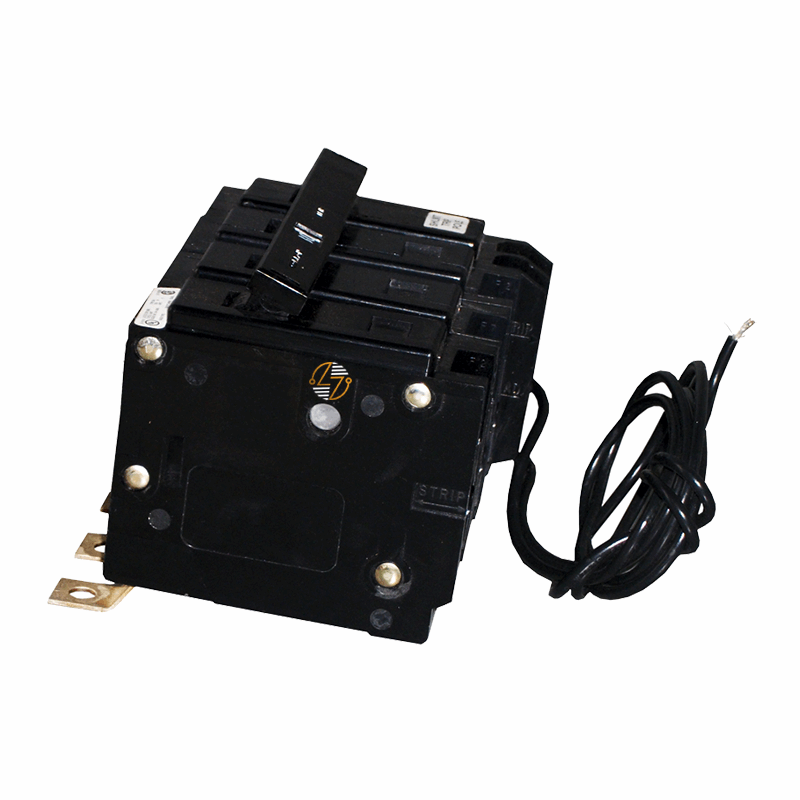

BAB3070HS - 70Amp Circuit Breaker

BAB3070HS - 70Amp Circuit Breaker

Secure your electrical systems with the Eaton BAB3070HS, a top-of-the-line Quicklag industrial thermal-magnetic circuit breaker. Engineered for robust performance and safety, this three-pole circuit breaker is designed to handle a current up to 70 A and offers a substantial interruption rating of 10 kAIC, making it suitable for a variety of demanding applications. The device operates at a voltage range of 240 V and includes a 24/48 Vdc shunt trip feature for enhanced safety and control.

Key Features and Benefits:

• High Capacity and Safety: With a 70 A current rating and a 10 kAIC interrupt capacity, the BAB3070HS is built to protect high-power circuits from overload and short circuits, ensuring operational reliability and safety.
• Durable Construction: The bolt-on mounting ensures a secure and reliable installation, which is critical in industrial environments.
• Enhanced Control: Includes a shunt trip that allows for the circuit breaker to be tripped remotely, providing additional safety and convenience in emergency situations.
• Compact Design: The circuit breaker's dimensions (4 in x 3.4 in x 3.8 in) allow for efficient use of space inside electrical panels.

Technical Specifications:

• Type: Quicklag industrial thermal-magnetic circuit breaker
• Amperage Rating: 70 A
• Interrupt Rating: 10 kAIC
• Voltage Rating: 240 V
• Number of Poles: Three-pole
• Mounting Method: Bolt-on
• Trip Type: Non-Interchangeable

Material Compliance and Certifications:

• The BAB3070HS circuit breaker is UL Listed and CSA Certified, meeting stringent safety and quality standards.
• It is also HACR rated, making it suitable for heating, air-conditioning, and refrigeration applications, ensuring broad compatibility and compliance.

Suitability:

• Ideal for industrial applications where robust and reliable circuit protection is necessary. This circuit breaker is particularly well-suited for factories, large commercial buildings, and heavy-duty machinery that require continuous and safe operation.

Optimize your electrical system's safety and efficiency with the Eaton BAB3070HS, a circuit breaker that combines high-performance specifications with durable and compliant construction. Whether upgrading existing systems or designing new installations, this circuit breaker provides the reliability and safety needed for modern industrial demands.
