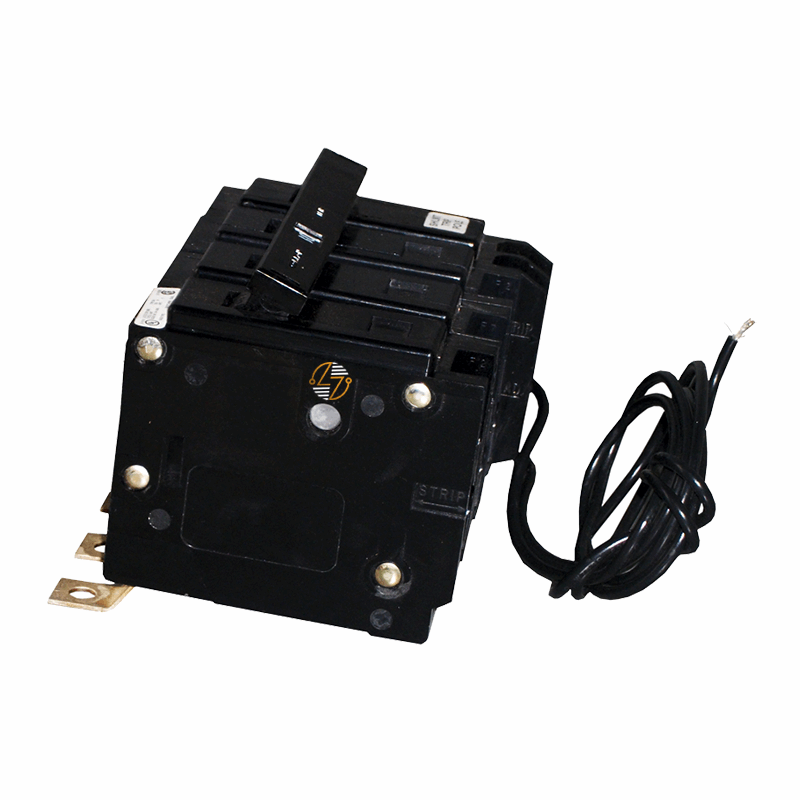

BAB3035HS - 35Amp Circuit Breaker

BAB3035HS - 35Amp Circuit Breaker

The Eaton BAB3035HS is a 35 amp, 3-pole thermal magnetic circuit breaker designed for commercial and industrial electrical systems. It helps protect your circuits and connected equipment from overloads and short circuits while providing reliable performance in everyday operation. The bolt-on mounting design creates a secure connection in compatible panelboards, making it a solid choice for your electrical distribution systems where consistent protection is important.

As part of Eaton’s Quicklag BAB series, the BAB3035HS is commonly used in HVAC equipment, pumps, compressors, motor controls, and other three-phase applications. Its thermal-magnetic trip mechanism reacts quickly during fault conditions while allowing normal electrical loads to operate without unnecessary interruptions. The built-in shunt trip feature also supports applications that require remote tripping capability or additional system control.

With a 240V rating, 10 kAIC interrupt capacity, and 50°C calibration, this breaker is designed for commercial and industrial environments where dependable electrical protection matters every day.

Key Features and Benefits

• 35 amp thermal magnetic circuit breaker: Designed for dependable circuit protection in commercial and industrial systems.
• Three-pole design for three-phase systems: Suitable for multi-phase electrical applications.
• Bolt-on mounting for secure installation: Provides a stable connection in compatible panelboards.
• Protection against overloads and short circuits: Helps safeguard wiring and connected equipment.
• Built-in shunt trip capability for 120-240V applications: Supports remote tripping and added system control.
• HACR rated for HVAC and refrigeration systems: Suitable for heating, cooling, and refrigeration equipment.
• 50°C calibrated for higher temperature environments: Designed for reliable operation in demanding conditions.
• Suitable for commercial and industrial use: Built for dependable everyday performance.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3035HS

• Series: BAB Quicklag

• Amperage Rating: 35A

• Voltage Rating: 240V

• Number of Poles: 3-Pole

• Interrupt Rating: 10 kAIC

• Mounting Type: Bolt-On

• Trip Type: Non-Interchangeable

• Shunt Trip Rating: 120-240V

• Calibration Rating: 50°C

• Circuit Breaker Type: Thermal Magnetic

• Dimensions:
  • 3.8 in.
  • 4.9 in.
  • 3.2 in.
• Weight: 0.85 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical systems
• Industrial facilities
• HVAC and refrigeration equipment
• Motor control applications
• Pumps and compressors
• Electrical distribution panels
• Three-phase power systems
• Higher temperature operating environments
