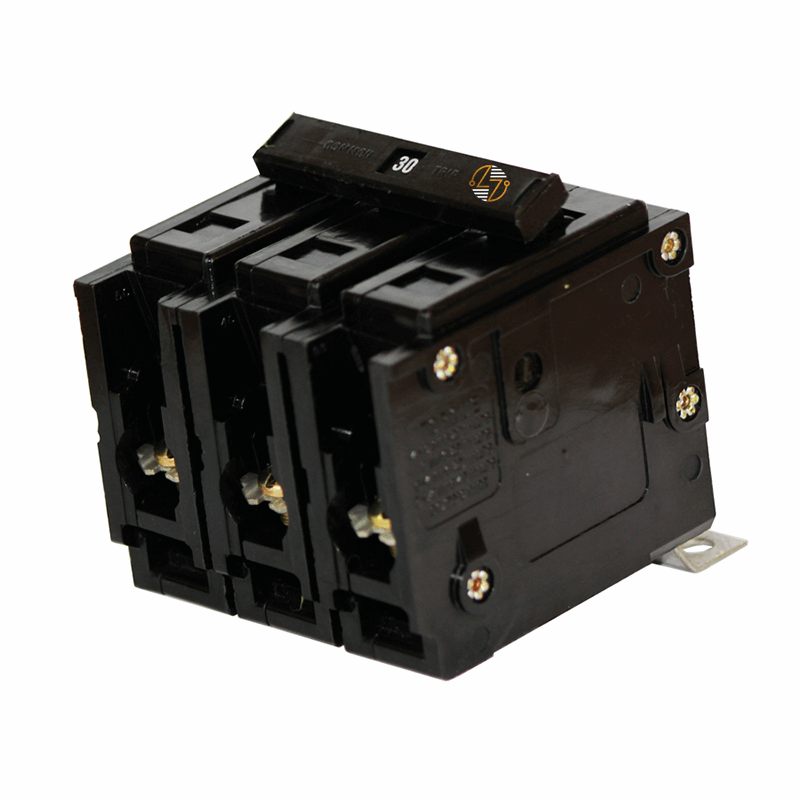

BAB3030HT - 30Amp Circuit Breaker

BAB3030HT - 30Amp Circuit Breaker

The Eaton BAB3030HT is a 30 amp, 3-pole thermal magnetic circuit breaker made for commercial and industrial electrical systems that need reliable circuit protection. Its bolt-on design provides a secure fit in compatible panelboards while helping protect your equipment and circuits from overloads and short circuits. As part of Eaton’s Quicklag BAB series, the BAB3030HT is often used in HVAC systems, pumps, compressors, motor control equipment, and other three-phase applications. The thermal-magnetic trip mechanism reacts to fault conditions quickly while allowing normal electrical loads to operate without unnecessary interruptions. Its compact size also makes it easier to work with in tighter panel spaces. Rated for 240V applications with a 10 kAIC interrupt capacity, this breaker is built for dependable performance in everyday commercial and industrial environments. Ring and spade lug terminal compatibility adds installation flexibility for a variety of setups.

Key Features and Benefits

• 30 amp thermal magnetic circuit breaker: Provides dependable circuit protection for commercial and industrial electrical systems.
• Three-pole design for three-phase systems: Suitable for multi-phase electrical applications.
• Bolt-on mounting for secure installation: Helps provide a stable connection in compatible panelboards.
• Protection against overloads and short circuits: Designed to support reliable electrical system protection.
• Compact design for panelboard applications: Fits efficiently in tighter panel spaces.
• HACR rated for HVAC and refrigeration systems: Suitable for heating, cooling, and refrigeration applications.
• Compatible with ring or spade lug terminals: Provides installation flexibility for different wiring setups.
• Designed for commercial and industrial use: Built for dependable operation in demanding environments.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3030HT

• Series: BAB Quicklag

• Amperage Rating: 30A

• Voltage Rating: 240V

• Number of Poles: 3-Pole

• Interrupt Rating: 10 kAIC

• Mounting Type: Bolt-On

• Trip Type: Non-Interchangeable

• Terminal Type: Ring or Spade Lug

• Circuit Breaker Type: Thermal Magnetic

• Dimensions:
  • 3.25 in.
  • 3.5 in.
  • 3 in.
• Weight: 0.88 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical systems
• Industrial facilities
• HVAC and refrigeration equipment
• Motor control applications
• Pumps and compressors
• Electrical distribution panels
• Three-phase power systems
