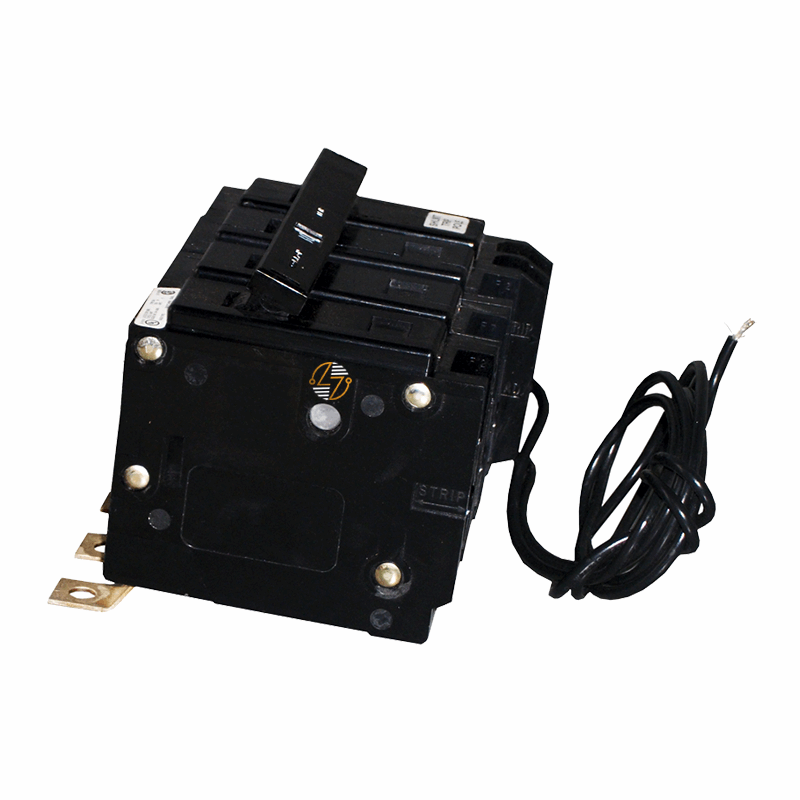

BAB3030HS - 30Amp Circuit Breaker

BAB3030HS - 30Amp Circuit Breaker

The Eaton BAB3030HS circuit breaker is designed for reliable protection in commercial and industrial electrical systems where consistent performance matters. This 30 amp, 3-pole thermal magnetic breaker helps you protect circuits and equipment from overloads and short circuits while supporting safe, steady power distribution. Its bolt-on mounting design creates a secure connection inside compatible panelboards, making it a practical option for facilities that depend on dependable electrical protection every day.

Part of Eaton’s Quicklag BAB series, the BAB3030HS is commonly used in HVAC systems, motor control applications, compressors, pumps, and other three-phase electrical setups. The thermal-magnetic trip mechanism responds quickly during fault conditions while helping you avoid unnecessary interruptions during normal operation. With a 240V rating and 10 kAIC interrupt capacity, this breaker is built for a wide range of commercial and industrial applications where equipment protection and uptime are important.

Key Features and Benefits

• 30 amp thermal magnetic circuit breaker: Provides dependable circuit protection for commercial and industrial electrical systems.
• Three-pole design for three-phase systems: Suitable for three-phase electrical applications.
• Bolt-on mounting for a secure installation: Helps provide a stable connection inside compatible panelboards.
• Helps protect against overloads and short circuits: Designed to support reliable electrical system protection.
• Compact design fits well in panelboard applications: Fits efficiently in compatible electrical distribution systems.
• HACR rated for HVAC and refrigeration systems: Suitable for heating, cooling, and refrigeration applications.
• Designed for commercial and industrial electrical use: Built for dependable operation in demanding environments.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3030HS

• Series: BAB Quicklag

• Amperage Rating: 30A

• Voltage Rating: 240V

• Number of Poles: 3-Pole

• Interrupt Rating: 10 kAIC

• Mounting Type: Bolt-On

• Trip Type: Non-Interchangeable

• Circuit Breaker Type: Thermal Magnetic

• Dimensions:
  • 4 in.
  • 3.5 in.
  • 3.7 in.
• Weight: 1.25 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial buildings and office facilities
• Industrial electrical distribution systems
• HVAC and refrigeration equipment
• Motor control and pump applications
• Lighting and distribution panels
• Compressors and mechanical equipment
• Three-phase branch circuit protection systems
