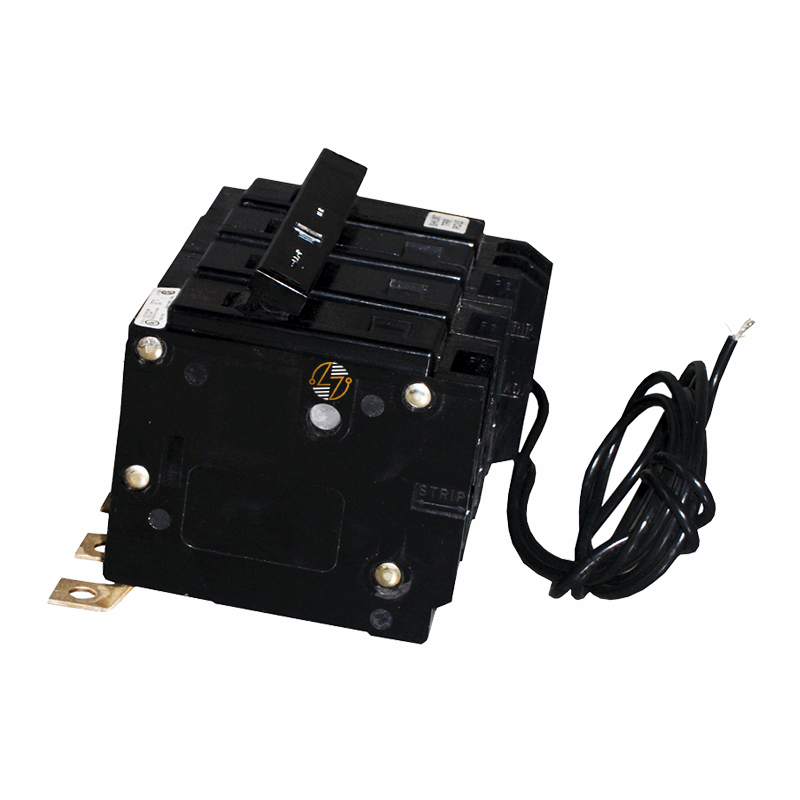

BAB3025HS - 25Amp Circuit Breaker

BAB3025HS - 25Amp Circuit Breaker

The Eaton BAB3025HS circuit breaker is designed for commercial and industrial electrical systems that need dependable three-pole protection for 240V applications. Rated at 25 amps, this breaker helps protect your wiring and connected equipment from overloads and short circuits that can cause equipment damage or unnecessary downtime. Whether you're installing it in industrial controls, motor applications, or commercial distribution systems, the BAB3025HS delivers reliable circuit protection for demanding electrical environments.

Key Features and Benefits

• 25 amp thermal magnetic circuit breaker: Provides dependable circuit protection for commercial and industrial electrical systems.
• Three-pole configuration: Designed for applications requiring three-pole protection.
• 240V voltage rating: Suitable for commercial and industrial 240V applications.
• Built-in shunt trip capability: Supports remote trip functionality where required.
• Compatible with 120V, 208V, and 240V shunt trip applications: Provides flexibility for multiple shunt trip configurations.
• 10 kAIC interrupt rating: Helps interrupt fault currents safely and effectively.
• Bolt-on mounting: Provides a secure fit in compatible panelboards.
• Thermal magnetic trip protection: Helps protect wiring and connected equipment from overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration applications.
• Helps protect against overloads and short circuits: Designed for dependable everyday electrical protection.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3025HS

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 3

• Amperage Rating: 25 Amps

• Voltage Rating: 240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Special Feature: 120V, 208V, 240V Shunt Trip

• Dimensions:
  • Depth: 5 in.
  • Height: 1 in.
  • Width: 3 in.
• Product Weight: 0.5 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical panels
• Industrial control systems
• HVAC and refrigeration equipment
• Motor control applications
• Remote trip applications
• Electrical distribution systems
