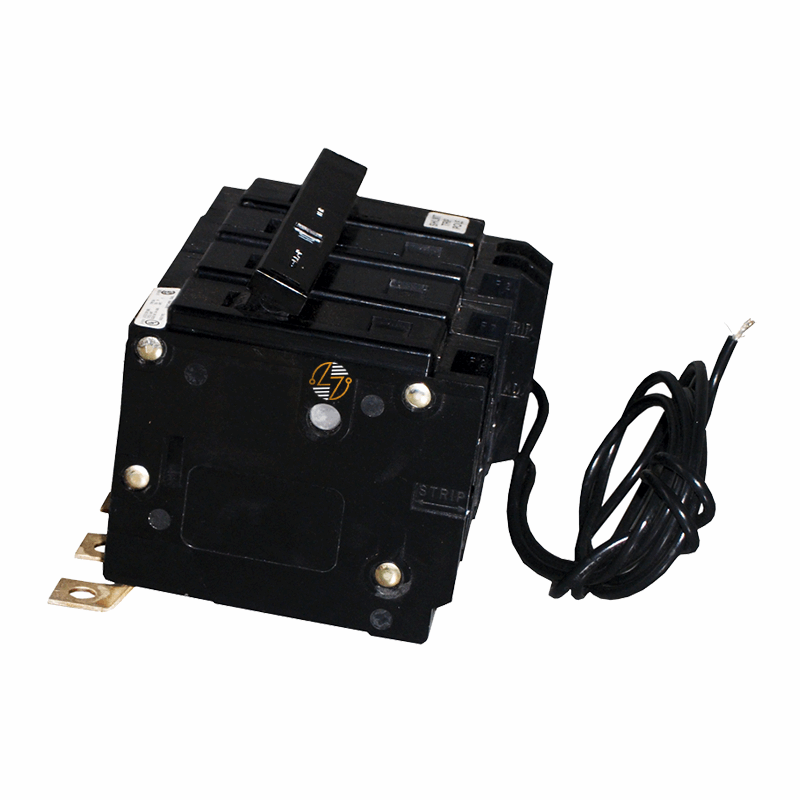

BAB3020HS - 20Amp Circuit Breaker

BAB3020HS - 20Amp Circuit Breaker

The Eaton BAB3020HS circuit breaker provides reliable protection for commercial and industrial electrical systems using 240V power. Rated at 20 amps, this three-pole breaker helps protect your wiring and connected equipment from overloads and short circuits. Part of Eaton’s Quicklag industrial breaker series, the BAB3020HS features thermal magnetic trip protection and a bolt-on mounting design for a secure fit in compatible panelboards. Its HACR rating also makes it suitable for HVAC and refrigeration systems where dependable circuit protection is important. The BAB3020HS is commonly used in commercial electrical panels, motor control applications, industrial controls, and electrical distribution systems.

Key Features and Benefits

• 20 amp thermal magnetic circuit breaker: Provides reliable protection for commercial and industrial electrical systems.
• Three-pole configuration: Designed for applications requiring three-pole circuit protection.
• 240V voltage rating: Suitable for commercial and industrial electrical systems using 240V power.
• 10 kAIC interrupt rating: Helps interrupt fault currents safely and effectively.
• Eaton Quicklag industrial breaker: Built as part of Eaton’s Quicklag industrial breaker series.
• Bolt-on mounting: Provides a secure fit in compatible panelboards.
• Thermal magnetic trip protection: Helps protect wiring and connected equipment from overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration systems where dependable circuit protection is important.
• Helps protect against overloads and short circuits: Designed for dependable everyday circuit protection.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB3020HS

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 3

• Amperage Rating: 20 Amps

• Voltage Rating: 240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 4 in.
  • Height: 3.5 in.
  • Width: 3.7 in.
• Product Weight: 1.25 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical panels
• Industrial control systems
• HVAC and refrigeration equipment
• Motor control applications
• Branch circuit protection
• Electrical distribution systems
