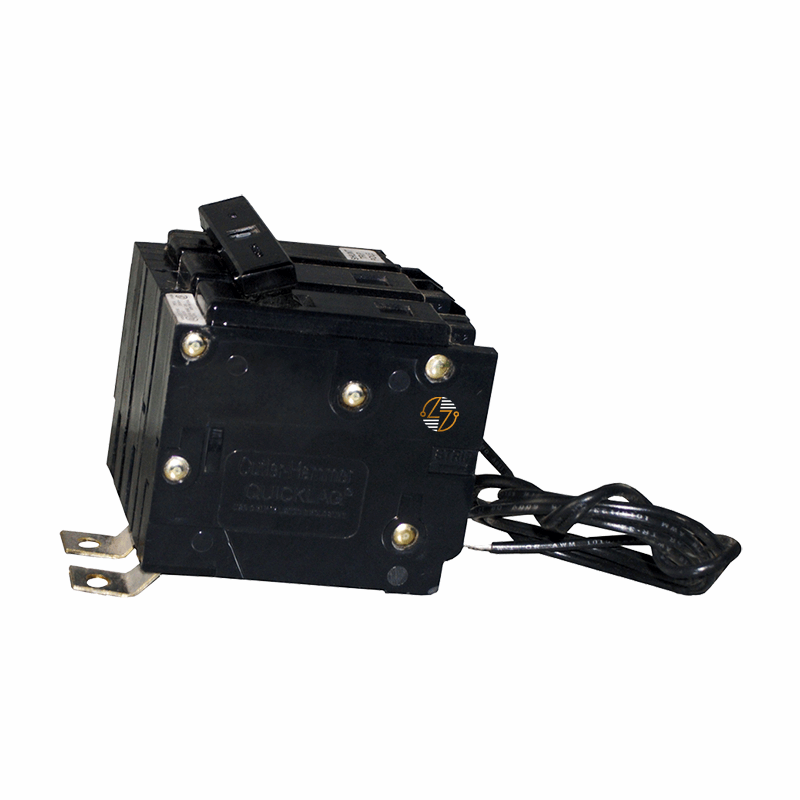

BAB2050S - 50Amp Circuit Breaker

BAB2050S - 50Amp Circuit Breaker

The Eaton BAB2050S circuit breaker provides reliable protection for commercial and industrial electrical systems using 120/240V power. Rated at 50 amps, this two-pole breaker helps protect your wiring and connected equipment from overloads and short circuits while also supporting remote trip capability through its built-in 120V shunt trip.

Part of Eaton’s Quicklag industrial breaker series, the BAB2050S features thermal magnetic trip protection and a bolt-on mounting design for a secure fit in compatible panelboards. Its HACR rating also makes it suitable for HVAC and refrigeration systems where dependable circuit protection is important.

The BAB2050S is commonly used in commercial electrical panels, industrial controls, emergency shutdown systems, and electrical distribution applications.

Key Features and Benefits

• 50 amp thermal magnetic circuit breaker: Provides reliable protection for commercial and industrial electrical systems.
• Two-pole configuration: Designed for 120/240V power applications.
• Built-in 120V shunt trip: Supports remote trip capability and emergency shutdown functions.
• 10 kAIC interrupt rating: Supports dependable interruption during fault conditions.
• Eaton Quicklag industrial breaker: Built for commercial and industrial electrical environments.
• Bolt-on mounting: Provides a secure fit in compatible panelboards.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration systems.
• Helps protect against overloads and short circuits: Supports dependable circuit protection.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB2050S

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 2

• Amperage Rating: 50 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Shunt Trip: 120V

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 12.5 in.
  • Height: 5 in.
  • Width: 7.5 in.
• Product Weight: 0.1 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Industrial control panels
• Emergency shutdown systems
• Remote disconnect applications
• Branch circuit protection
• Electrical distribution systems
