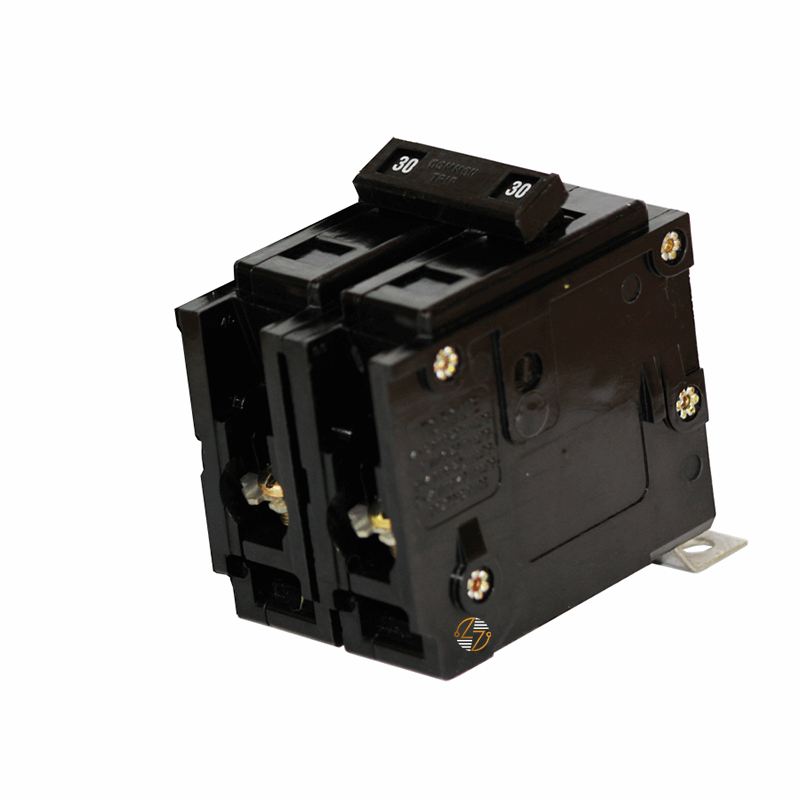

BAB2030T - 30Amp Circuit Breaker

BAB2030T - 30Amp Circuit Breaker

The Eaton BAB2030T circuit breaker is a dependable option for commercial and industrial electrical systems that need reliable two-pole protection for 120/240V applications. Rated at 30 amps, this breaker helps protect your wiring and connected equipment from overloads and short circuits that can lead to downtime or equipment damage.

Part of Eaton’s Quicklag industrial breaker series, the BAB2030T features thermal magnetic trip protection and a bolt-on mounting design for a secure connection in compatible panelboards. Ring or spade lug terminals give installers flexible wiring options, which can make replacements and upgrades more straightforward. Its HACR rating also makes it a solid fit for HVAC and refrigeration systems where consistent circuit protection matters day after day.

The BAB2030T is commonly used in commercial electrical panels, industrial controls, branch circuit protection, and electrical distribution systems where dependable performance is important.

Key Features and Benefits

• 30 amp thermal magnetic circuit breaker: Provides dependable protection for commercial and industrial electrical systems.
• Two-pole configuration: Designed for 120/240V applications.
• 10 kAIC interrupt rating: Supports reliable interruption during fault conditions.
• Eaton Quicklag industrial breaker: Built for commercial and industrial electrical applications.
• Bolt-on mounting design: Provides a secure connection in compatible panelboards.
• Ring or spade lug terminals: Allow flexible wiring options for installation and replacement work.
• Thermal magnetic trip protection: Helps respond to overloads and short circuits.
• HACR rated: Suitable for HVAC and refrigeration systems.
• Helps protect against overloads and short circuits: Supports dependable electrical system protection.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB2030T

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 2

• Amperage Rating: 30 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Terminal Type: Ring or Spade Lug

• Dimensions:
  • Depth: 3.5 in.
  • Height: 3.5 in.
  • Width: 2 in.
• Product Weight: 0.53 lb


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Industrial control panels
• Branch circuit protection
• Electrical distribution systems
• Retrofit and maintenance applications
• Commercial and industrial electrical projects
