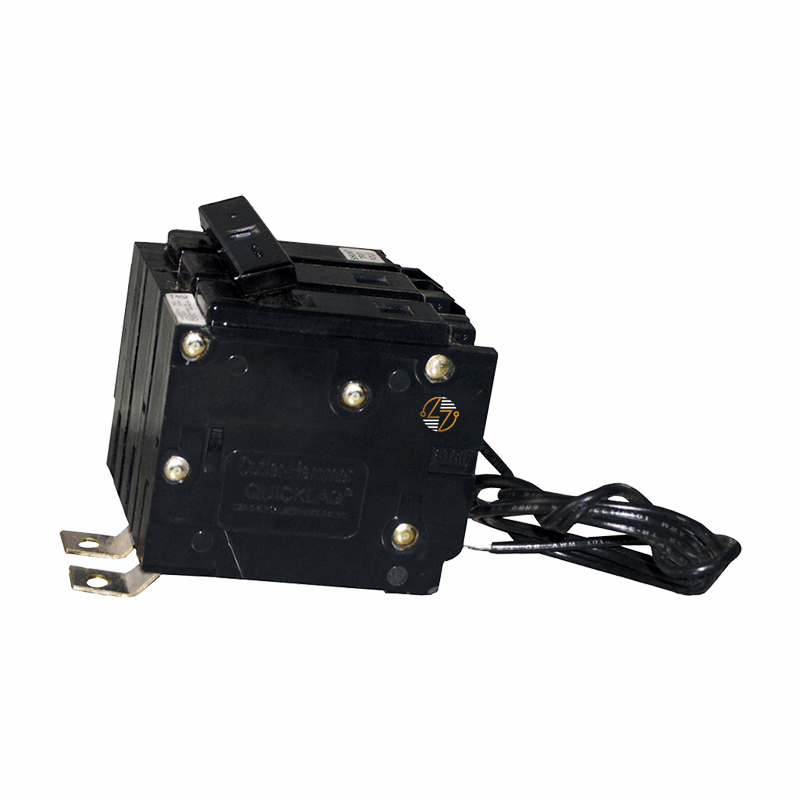

BAB2030S - 30Amp Circuit Breaker

BAB2030S - 30Amp Circuit Breaker

The Eaton BAB2030S circuit breaker is a practical choice for commercial and industrial electrical systems that need dependable two-pole protection with remote trip capability built in. Rated at 30 amps for 120/240V applications, this breaker helps protect your wiring and connected equipment from overloads and short circuits while also allowing for remote disconnect or emergency shutdown functions through its integrated 120V shunt trip.

Built as part of Eaton’s BAB Quicklag series, the BAB2030S combines thermal magnetic trip protection with a bolt-on mounting design for a secure fit in compatible panelboards. The shunt trip feature makes it especially useful in control panels, HVAC systems, and applications where remote operation is important. Since it’s HACR rated, it’s also commonly used in heating, cooling, and refrigeration systems that rely on consistent electrical protection every day.

Whether it’s part of a new installation, equipment upgrade, or maintenance project, the BAB2030S delivers reliable circuit protection with added control flexibility.

Key Features and Benefits

• 30 amp thermal magnetic circuit breaker: Provides dependable protection for commercial and industrial electrical systems.
• Two-pole design: Built for 120/240V applications.
• 10 kAIC interrupt rating: Supports reliable interruption during fault conditions.
• Built-in 120V shunt trip: Allows for remote disconnect or emergency shutdown functions.
• Eaton BAB Quicklag breaker: Designed for commercial and industrial electrical systems.
• Bolt-on mounting connection: Provides a secure fit in compatible panelboards.
• Thermal magnetic trip protection: Helps respond to overloads and short circuits.
• HACR rated for HVAC applications: Suitable for heating, cooling, and refrigeration systems.
• Helps protect against overloads and short circuits: Supports reliable electrical system protection.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB2030S

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 2

• Amperage Rating: 30 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Shunt Trip: 120V

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 3.5 in.
  • Height: 4.5 in.
  • Width: 3.7 in.
• Product Weight: 0.85 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed

• CSA Certified

• HACR Rated


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Emergency shutdown systems
• Industrial control panels
• Remote disconnect applications
• Electrical distribution systems
• Retrofit and maintenance projects
