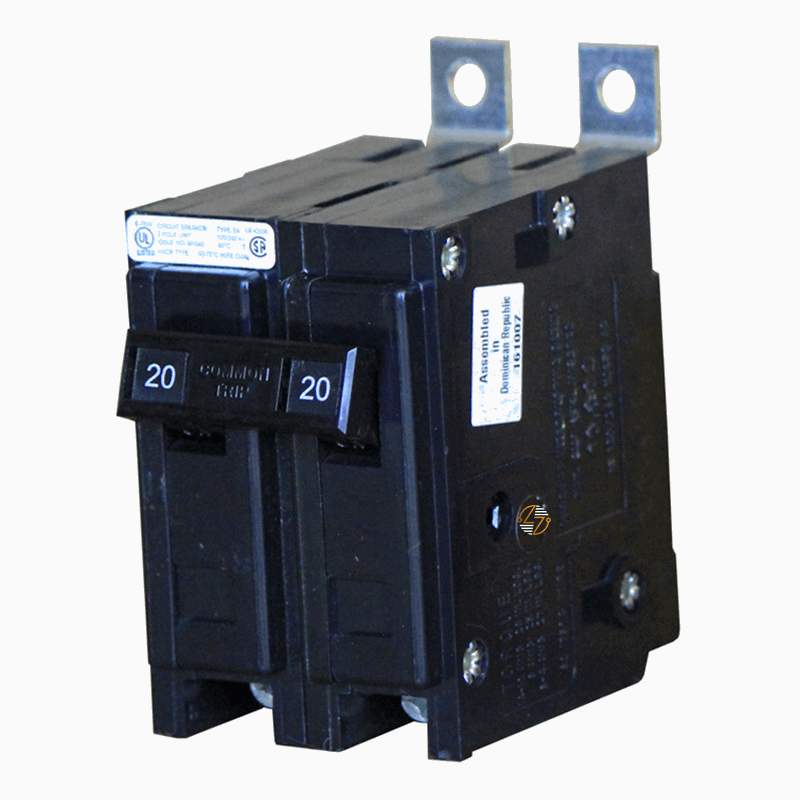

BAB2020C - 20 Amp Circuit Breaker

BAB2020C - 20 Amp Circuit Breaker

The Eaton BAB2020C circuit breaker is designed for commercial and industrial electrical systems that need dependable two-pole circuit protection with a secure, professional-grade connection. Rated at 20 amps for 120/240V applications, this breaker helps protect your wiring and connected equipment from overloads and short circuits that can disrupt power and damage electrical components.

Its switching neutral capability makes it suitable for multi-wire branch circuit applications, while ring or spade lug terminals provide installation flexibility for a variety of wiring setups.

Key Features and Benefits

• 20 amp thermal magnetic circuit breaker: Provides dependable circuit protection for commercial and industrial electrical systems.
• Two-pole configuration: Designed for 120/240V electrical applications.
• 120/240V voltage rating: Compatible with standard commercial and industrial systems.
• 10 kAIC interrupt rating: Helps protect against overloads and short circuits.
• Eaton BAB Quicklag breaker: Part of Eaton’s BAB Quicklag breaker series.
• Bolt-on mounting design: Provides a secure connection in compatible panelboards.
• Switching neutral capability: Suitable for multi-wire branch circuit applications.
• Ring or spade lug terminals: Provide installation flexibility for different wiring setups.
• Thermal magnetic trip protection: Responds to overload conditions and sudden fault currents.
• HACR rated: Suitable for HVAC and refrigeration applications.
• Helps protect against overloads and short circuits: Supports reliable circuit protection in demanding electrical environments.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB2020C

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 2

• Amperage Rating: 20 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Method: Bolt-On

• Terminal Type: Ring or Spade Lug

• Dimensions:
  • Depth: 3.5 in.
  • Height: 3.5 in.
  • Width: 3.2 in.
• Product Weight: 0.55 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed: Manufactured to meet UL listing requirements for electrical protection devices.
• CSA Certified: Certified to applicable CSA standards.
• HACR Rated: Suitable for HVAC and refrigeration applications.


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Multi-wire branch circuits
• Industrial control panels
• Electrical distribution systems
• Retrofit and maintenance applications
• Commercial and industrial electrical projects
