BAB1020 - 20 Amp Circuit Breaker

BAB1020 - 20 Amp Circuit Breaker

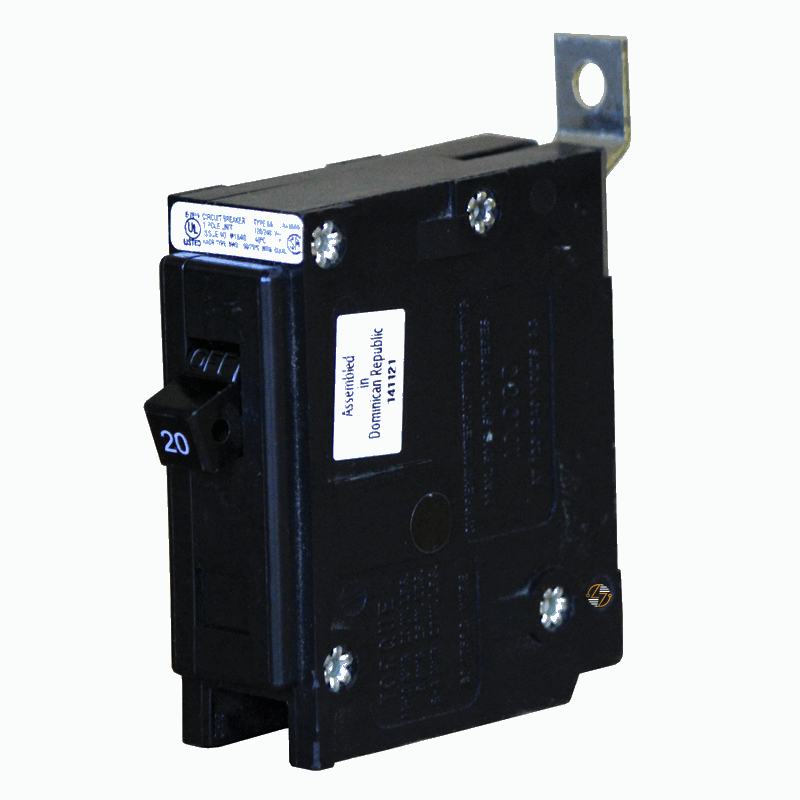

The Eaton BAB1020 circuit breaker provides circuit protection for commercial and industrial electrical systems operating on 120/240V power. Rated at 20 amps, this single-pole thermal magnetic breaker helps protect your wiring and equipment from overloads and short circuits. Designed as part of Eaton’s BAB Quicklag series, the BAB1020 features thermal magnetic trip protection and a bolt-on mounting design for a secure connection in compatible panelboards. Its compact size helps make installation and replacement work more manageable, especially in tighter panel spaces. The breaker is also HACR rated for HVAC and refrigeration applications. The BAB1020 is commonly used in commercial panels, electrical distribution systems, industrial controls, and general branch circuit protection applications.

Key Features and Benefits

• 20 amp thermal magnetic circuit breaker: Provides dependable branch circuit protection for commercial and industrial electrical systems.
• Single-pole configuration: Designed for standard single-pole electrical applications.
• 120/240V voltage rating: Suitable for low-voltage electrical distribution systems.
• 10 kAIC interrupt rating: Helps protect against overloads and short circuits in demanding applications.
• Eaton BAB Quicklag design: Built as part of Eaton’s trusted BAB Quicklag series.
• Bolt-on mounting: Provides a secure connection in compatible panelboards.
• Thermal magnetic trip protection: Responds to both overload conditions and fault currents.
• HACR rated: Suitable for HVAC and refrigeration applications.
• Helps protect against overloads and short circuits: Supports safer and more reliable electrical system operation.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB1020

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 1

• Amperage Rating: 20 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Mounting Type: Bolt-On

• Dimensions:
  • Depth: 3 in.
  • Height: 2.5 in.
  • Width: 1 in.
• Product Weight: 0.2 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed: Manufactured to meet UL listing requirements for electrical protection devices.
• CSA Certified: Certified to applicable CSA standards.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration applications.


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Branch circuit protection
• Industrial control panels
• Electrical distribution systems
• Light industrial facilities
• Retrofit and maintenance applications
