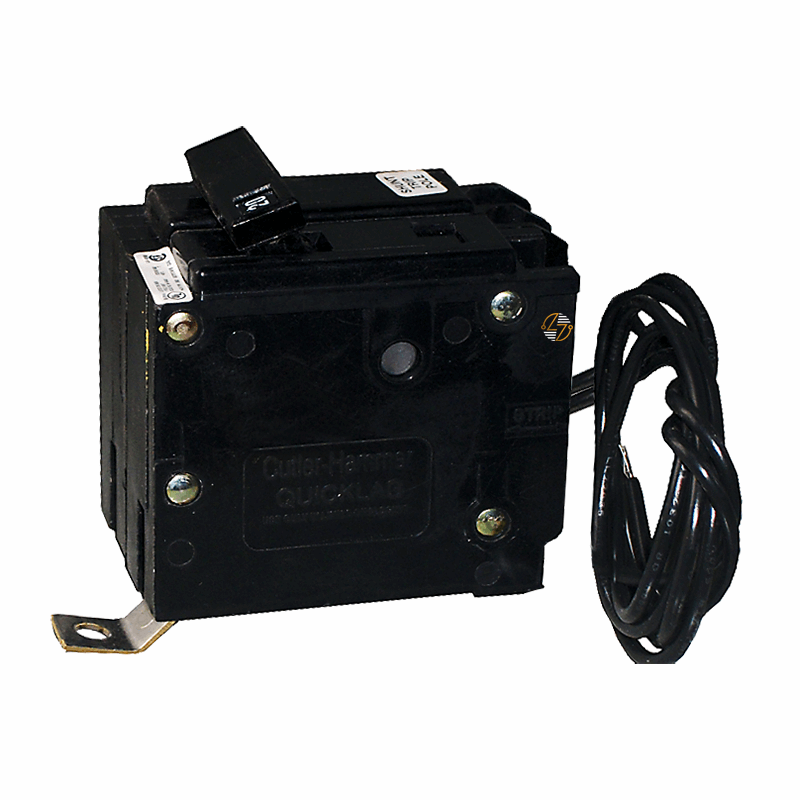

BAB1015S - 15 Amp Circuit Breaker

BAB1015S - 15 Amp Circuit Breaker

The Eaton BAB1015S circuit breaker combines dependable circuit protection with the added convenience of remote tripping capability, making it a smart fit for many commercial and industrial electrical systems. Rated at 15 amps and designed for 120/240V applications, this single-pole breaker helps protect your circuits from overloads and short circuits while also supporting remote shutdown functions through its built-in 120V shunt trip feature. Part of Eaton’s trusted BAB Quicklag series, the BAB1015S uses thermal magnetic trip protection to respond to both long-term overload conditions and sudden fault currents. The bolt-on mounting design creates a secure connection in compatible panelboards, and the compact size helps make installation and replacement work easier in tight spaces. Because it’s HACR rated, it’s also commonly used in HVAC and refrigeration systems where reliable protection is important for day-to-day operation. The shunt trip feature makes this breaker especially useful for emergency stop systems, safety controls, and applications where remote breaker operation is required.

Key Features and Benefits

• 15 amp thermal magnetic circuit breaker: Provides dependable branch circuit protection for commercial and industrial electrical systems.
• Single-pole breaker design: Designed for standard single-pole electrical applications.
• 120/240V voltage rating: Suitable for low-voltage electrical distribution systems.
• 10 kAIC interrupt rating: Helps protect against overloads and short circuits in demanding applications.
• Built-in 120V shunt trip feature: Supports remote tripping capability for emergency shutdown and control systems.
• Eaton BAB Quicklag breaker construction: Built as part of Eaton’s trusted BAB Quicklag series.
• Bolt-on mounting connection: Provides a secure fit in compatible panelboards.
• Thermal magnetic trip protection: Responds to both overload conditions and fault currents.
• HACR rated for HVAC applications: Suitable for HVAC and refrigeration systems.
• Helps protect against overloads and short circuits: Supports safer and more reliable electrical system operation.


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BAB1015S

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Type: BAB

• Number of Poles: 1

• Amperage Rating: 15 Amps

• Voltage Rating: 120/240V

• Interrupt Rating: 10 kAIC

• Trip Type: Non-Interchangeable

• Shunt Trip: 120V

• Mounting Method: Bolt-On

• Dimensions:
  • Depth: 3.8 in.
  • Height: 4.8 in.
  • Width: 2.2 in.
• Product Weight: 0.8 lb

• Warranty: 1 Year


Material Compliance and Certifications

• UL Listed: Manufactured to meet UL listing requirements for electrical protection devices.
• CSA Certified: Certified to applicable CSA standards.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration equipment applications.
• Designed for commercial and industrial electrical applications: Built for dependable operation in demanding environments.


Where It Works Best

• Commercial electrical panels
• HVAC and refrigeration systems
• Emergency shutdown systems
• Industrial control panels
• Remote disconnect applications
• Branch circuit protection
• Electrical distribution systems
• Retrofit and maintenance projects
