B360HH - 60Amp Circuit Breaker

B360HH - 60Amp Circuit Breaker

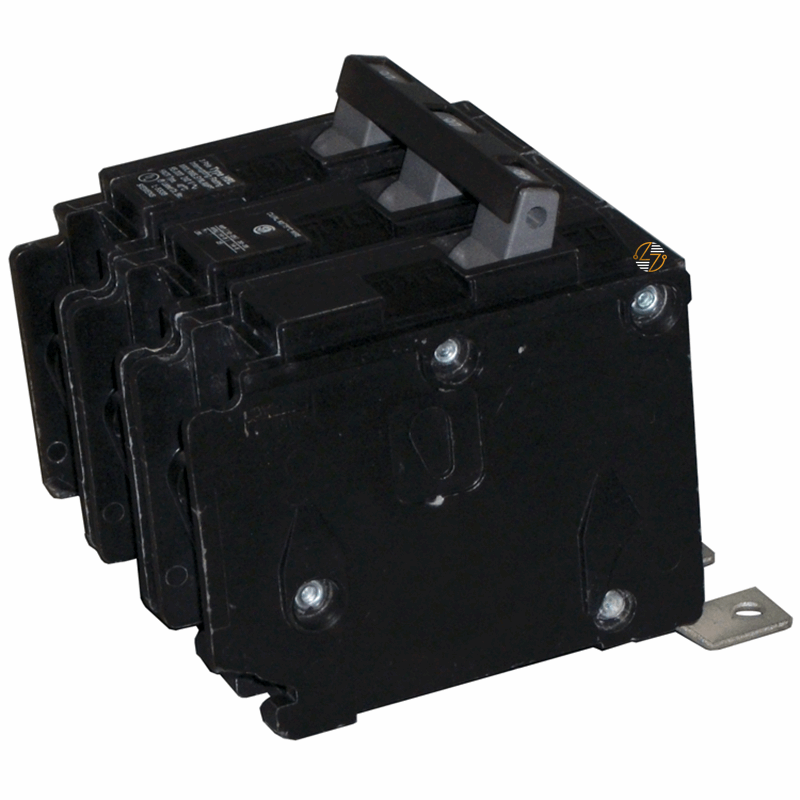

The Siemens B360HH circuit breaker is designed for commercial and industrial electrical systems that need dependable protection in higher fault-current applications. Rated at 60 amps and 240VAC, this 3-pole molded case circuit breaker helps protect your equipment and electrical distribution systems from overloads and short circuits that can lead to downtime or equipment damage. This Type HBL breaker features a thermal magnetic trip mechanism that responds to abnormal electrical conditions as they occur. With a 65kA interrupting capacity, the B360HH is suited for installations where higher available fault current protection is required. The bolt-on mounting style provides a secure connection in compatible panelboards and switchboards, while the compact design helps you save panel space. The Siemens B360HH is commonly used in manufacturing facilities, HVAC systems, commercial buildings, motor control applications, and general power distribution systems where reliable low-voltage circuit protection is needed.

Key Features and Benefits

• 60 amp molded case circuit breaker: Designed for commercial and industrial electrical systems.
• 3-pole design for three-phase systems: Suitable for three-phase electrical applications.
• 240VAC voltage rating: Built for low-voltage electrical distribution systems.
• 65kA interrupting capacity: Designed for higher available fault current protection.
• Thermal magnetic trip protection: Responds to abnormal electrical conditions as they occur.
• Bolt-on mounting style: Provides a secure connection in compatible panelboards and switchboards.
• Compact design for panel applications: Helps conserve panel space.
• Helps protect against overloads and short circuits: Supports dependable low-voltage circuit protection.
• UL 489 listed: Manufactured to meet recognized electrical distribution standards.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B360HH

• Product Type: Molded Case Circuit Breaker

• Series: HBL

• Amperage Rating: 60 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupt Rating: 65kAIC

• Trip Type: Thermal Magnetic

• Mounting Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • 2.756 in.
  • 2.756 in.
  • 3.937 in.
• Net Weight: 1.058 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B360HH circuit breaker is manufactured to meet UL 489 standards for low-voltage electrical distribution systems.


Where It Works Best

• Commercial buildings
• Industrial facilities
• Manufacturing equipment
• HVAC systems
• Motor control applications
• Panelboards and switchboards
• Three-phase electrical systems
• Electrical distribution panels
