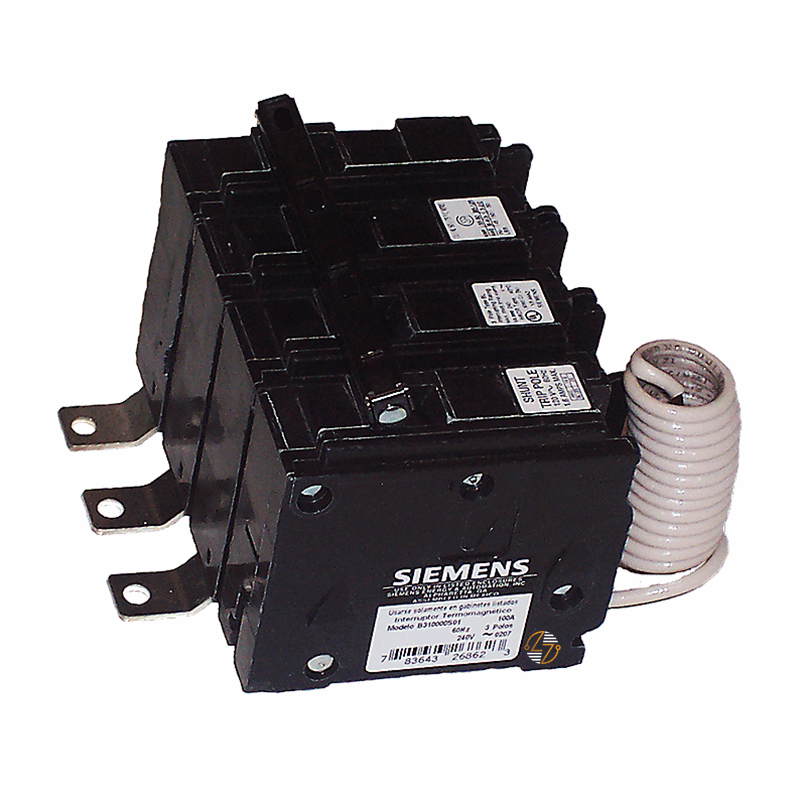

B36000S01 - 60Amp Circuit Breaker

B36000S01 - 60Amp Circuit Breaker

The Siemens B36000S01 circuit breaker is made for commercial and industrial electrical systems that need reliable circuit protection with remote trip capability. Rated at 60 amps with a 3-pole design, this molded case circuit breaker helps protect your electrical equipment and wiring from overloads and short circuits in 120/240VAC applications. This Type BL breaker includes a factory-installed 120V shunt trip that allows the breaker to be remotely tripped through an external control or emergency shutdown circuit. Its thermal magnetic trip mechanism responds to overloads and fault conditions to help reduce the chance of equipment damage and unexpected downtime.

Key Features and Benefits

• 60 amp molded case circuit breaker: Designed for commercial and industrial electrical systems.
• 3-pole configuration for three-phase systems: Suitable for three-phase electrical applications.
• 120/240VAC voltage rating: Built for low-voltage electrical distribution systems.
• Factory-installed 120V shunt trip: Allows remote tripping through an external control or emergency shutdown circuit.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• 10kA interrupting capacity: Provides fault-current protection for electrical systems.
• Bolt-on mounting style: Provides a secure fit in compatible panelboards and distribution equipment.
• Compact design for panel applications: Helps conserve panel space.
• Suitable for commercial and industrial electrical systems: Designed for dependable low-voltage circuit protection.
• UL 489 listed: Manufactured to meet recognized low-voltage electrical distribution standards.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B36000S01

• Product Type: Molded Case Circuit Breaker

• Series: BL

• Amperage Rating: 60 Amps

• Number of Poles: 3

• Voltage Rating: 120/240VAC

• Interrupt Rating: 10kAIC

• Trip Type: Thermal Magnetic

• Special Feature: 120V Shunt Trip

• Mounting Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • 2.563 in.
  • 4.00 in.
  • 3.122 in.
• Net Weight: 1.257 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B36000S01 circuit breaker is manufactured to meet UL 489 standards for low-voltage electrical distribution systems.


Where It Works Best

• Commercial buildings
• Industrial facilities
• HVAC systems
• Control panels
• Manufacturing equipment
• Emergency shutdown systems
• Motor control applications
• Panelboards and switchboards
• Three-phase electrical systems
• General power distribution applications
