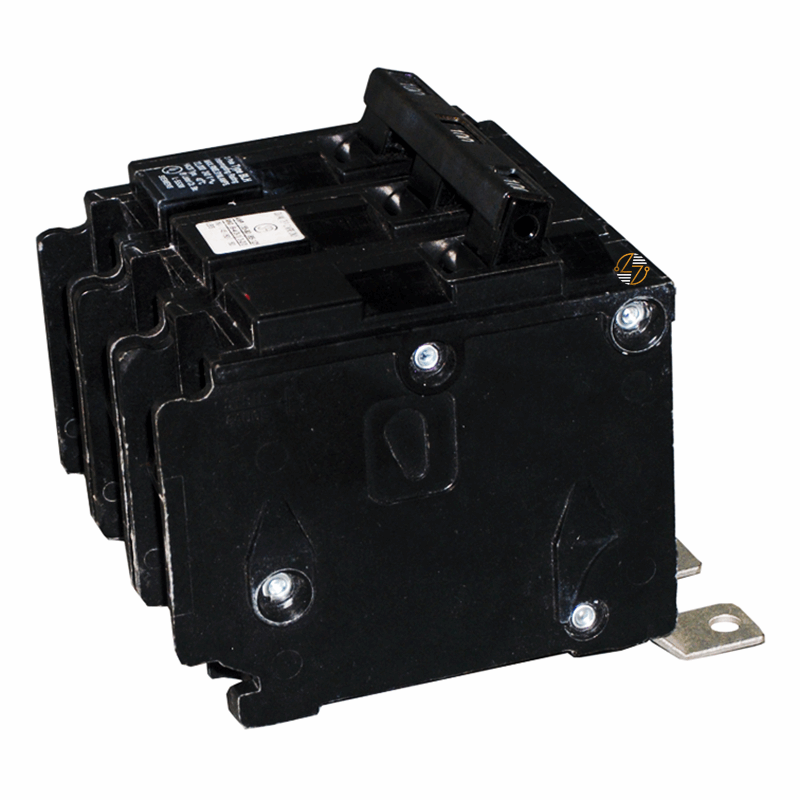

B350H - 50Amp Circuit Breaker

B350H - 50Amp Circuit Breaker

The Siemens B350H circuit breaker is designed to protect your three-phase electrical systems in commercial and industrial applications. Rated at 50 amps and 240VAC, this molded case circuit breaker helps protect your circuits and connected equipment from overloads and short circuits that can cause equipment damage or unexpected downtime. This Type BLH breaker uses a thermal magnetic trip design that responds to both overload conditions and fault currents. With a 22kA interrupting rating, it is designed for applications where higher fault-current protection is needed. The bolt-on mounting style provides a secure fit in compatible panelboards and electrical distribution equipment, while the compact design helps conserve panel space. The Siemens B350H is commonly used in HVAC systems, machinery, control panels, and electrical distribution systems where dependable low-voltage circuit protection is required.

Key Features and Benefits

• 50 amp molded case circuit breaker: Designed for commercial and industrial electrical systems.
• 3-pole design for three-phase systems: Suitable for three-phase electrical distribution applications.
• 240VAC voltage rating: Built for low-voltage electrical systems.
• 22kA interrupting capacity: Designed for applications where higher fault-current protection is needed.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• Bolt-on mounting style: Provides a secure fit in compatible panelboards and electrical distribution equipment.
• Compact design for panel installations: Helps conserve valuable panel space.
• Helps protect against overloads and short circuits: Supports dependable circuit protection.
• UL 489 listed: Manufactured to meet recognized low-voltage electrical distribution standards.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B350H

• Product Type: Molded Case Circuit Breaker

• Series: BLH

• Amperage Rating: 50 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupt Rating: 22kAIC

• Trip Type: Thermal Magnetic

• Mounting Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • 4 in.
  • 3 in.
  • 3 in.
• Net Weight: 1.036 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B350H circuit breaker is manufactured to meet UL 489 standards for low-voltage electrical distribution systems.


Where It Works Best

• Commercial buildings
• Industrial facilities
• HVAC systems
• Control panels
• Manufacturing equipment
• Motor control applications
• Panelboards and switchboards
• Three-phase electrical systems
• General power distribution applications
