B35000S01 - 50Amp Circuit Breaker

B35000S01 - 50Amp Circuit Breaker

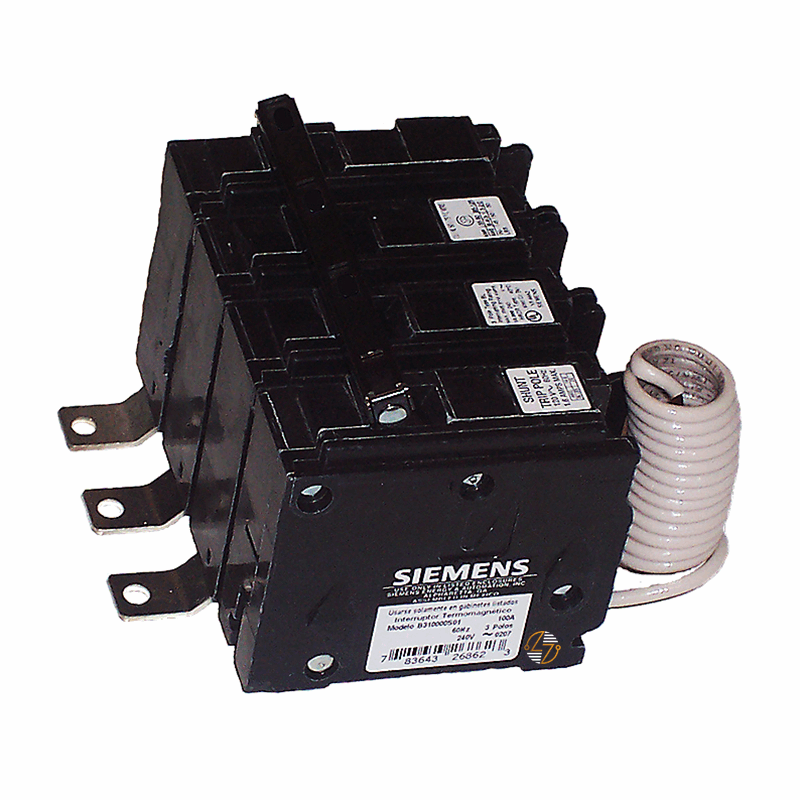

The Siemens B35000S01 circuit breaker is designed for commercial and industrial electrical systems that require circuit protection with remote trip capability. Rated at 50 amps with a 3-pole configuration, this molded case circuit breaker helps protect your electrical circuits and connected equipment from overloads and short circuits in 120/240VAC applications. This Type BL breaker includes a factory-installed 120V shunt trip that allows remote tripping through an external control or emergency shutdown circuit. The thermal magnetic trip mechanism responds to overloads and fault conditions, helping reduce the risk of electrical damage and downtime.

Key Features and Benefits

• 50 amp molded case circuit breaker: Designed for commercial and industrial electrical systems.
• 3-pole configuration for three-phase systems: Suitable for three-phase electrical distribution applications.
• 120/240VAC voltage rating: Built for low-voltage electrical systems.
• Factory-installed 120V shunt trip: Supports remote tripping through external control systems.
• Thermal magnetic trip protection: Helps protect against overloads and short circuits.
• 10kA interrupting capacity: Provides fault-current protection for electrical systems.
• Bolt-on mounting design: Provides a secure fit in compatible panelboards and distribution equipment.
• Compact size for panel applications: Helps conserve valuable panel space.
• Suitable for commercial and industrial systems: Built for demanding electrical distribution environments.
• Helps protect against overloads and short circuits: Supports dependable circuit protection.
• Supports remote trip functions: Useful for emergency shutdown and control applications.
• UL 489 listed: Manufactured to meet recognized low-voltage electrical distribution standards.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B35000S01

• Product Type: Molded Case Circuit Breaker

• Series: BL

• Amperage Rating: 50 Amps

• Number of Poles: 3

• Voltage Rating: 120/240VAC

• Interrupt Rating: 10kAIC

• Trip Type: Thermal Magnetic

• Special Feature: 120V Shunt Trip

• Mounting Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • 2.563 in.
  • 4.00 in.
  • 3.122 in.
• Net Weight: 1.257 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B35000S01 circuit breaker is manufactured to meet UL 489 standards for low-voltage electrical distribution systems.


Where It Works Best

• Commercial buildings
• Industrial facilities
• HVAC systems
• Control panels
• Manufacturing equipment
• Emergency shutdown systems
• Motor control applications
• Panelboards and switchboards
