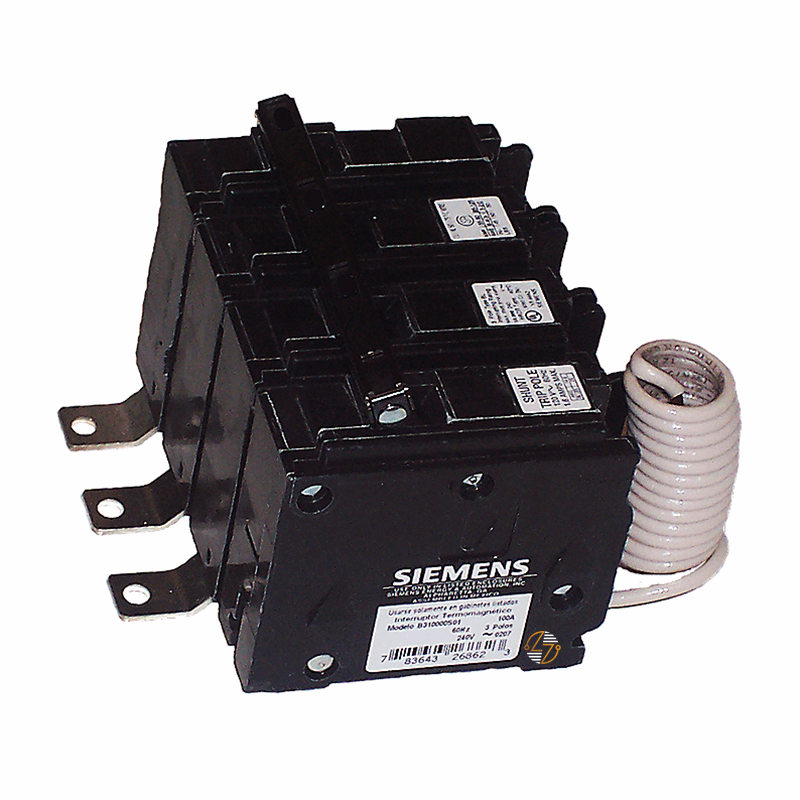

B330H00S01 - 30Amp Circuit Breaker

B330H00S01 - 30Amp Circuit Breaker

The Siemens B330H00S01 is built for three-phase electrical systems that need dependable circuit protection with the added benefit of remote trip capability. Rated at 30 amps for 120/240V applications, this Type BLH breaker helps protect panels, wiring, and connected equipment from overloads and short circuits in commercial and industrial environments. The thermal magnetic trip mechanism reacts to both overloads and short-circuit conditions to help keep electrical systems operating safely. Its bolt-on mounting design provides a secure fit in compatible Siemens panelboards, while the compact footprint helps make installation easier in crowded electrical panels.

Key Features and Benefits

• 30 amp molded case circuit breaker: Designed for dependable circuit protection in commercial and industrial applications.
• 3-pole configuration: Built for three-phase electrical systems.
• 120/240V AC rating: Suitable for 120/240V electrical distribution applications.
• Integrated 120V shunt trip: Allows remote trip capability through external control systems.
• Type BLH breaker design: Designed for compatible Siemens panelboards and distribution equipment.
• 22kA interrupting capacity: Helps provide higher fault current protection.
• Thermal magnetic trip protection: Responds to overload and short-circuit conditions.
• Bolt-on mounting style: Provides a secure fit in compatible Siemens panelboards and distribution equipment.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B330H00S01

• Product Type: Molded Case Circuit Breaker

• Breaker Series: BLH

• Amperage Rating: 30 Amps

• Number of Poles: 3 Pole

• Voltage Rating: 120/240 VAC

• Interrupt Rating: 22kAIC

• Trip Type: Thermal Magnetic

• Special Feature: 120V Shunt Trip

• Connection Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • Depth: Approx. 6 in
  • Height: Approx. 4 in
  • Width: Approx. 4 in
• Net Weight: 1.259 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: Manufactured to meet UL 489 standards for molded case circuit breakers used in low-voltage electrical distribution systems.


Where It Works Best

• Commercial electrical panels
• Industrial distribution systems
• Emergency shutdown systems
• Automated equipment controls
• OEM machinery panels
• Three-phase electrical systems
• Branch circuit protection
