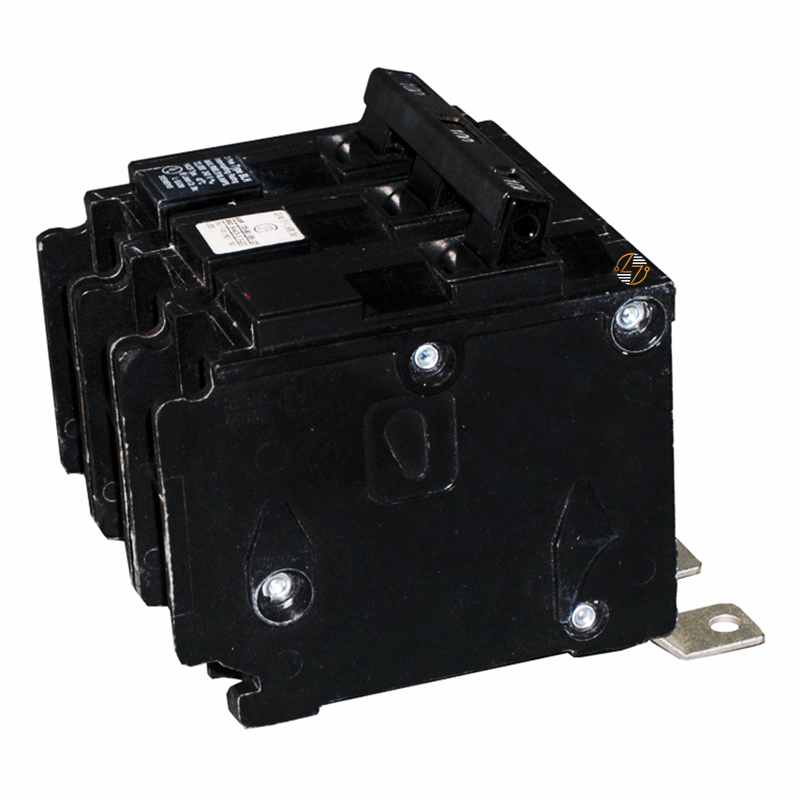

B325H - 25Amp Circuit Breaker

B325H - 25Amp Circuit Breaker

The Siemens B325H circuit breaker is a reliable choice for protecting your three-phase electrical systems where a standard breaker may not offer enough interrupting capacity. Rated at 25 amps for 240V applications, this 3-pole Type BLH breaker is built to help protect your electrical equipment, wiring, and branch circuits from overloads and short circuits in commercial and industrial settings. One of the standout features of the B325H is its 22kA interrupting rating, making it a smart fit for systems with higher available fault current. The thermal magnetic trip mechanism reacts to both ongoing overload conditions and sudden faults, helping reduce the chance of equipment damage and costly downtime. Its bolt-on mounting style provides a secure connection in compatible Siemens panelboards and distribution equipment, which can help you simplify installation and replacement work. The compact design is also useful in electrical panels and control cabinets where every inch of space matters. The Siemens B325H is commonly used in commercial buildings, industrial facilities, OEM equipment, and branch circuit applications where dependable three-phase circuit protection is important.

Key Features and Benefits

• 25 amp molded case circuit breaker: Designed for dependable circuit protection in commercial and industrial electrical systems.
• 3-pole configuration for 240V systems: Suitable for three-phase electrical distribution applications.
• Type BLH breaker design: Built for use in compatible Siemens panelboards and distribution equipment.
• 22kA interrupting capacity: Makes it a smart fit for systems with higher available fault current.
• Thermal magnetic trip protection: Reacts to both ongoing overload conditions and sudden faults.
• Bolt-on mounting style: Provides a secure connection and helps simplify installation and replacement work.
• Helps protect against overloads and short circuits: Designed to safeguard electrical equipment, wiring, and branch circuits.
• Compact design for panelboard applications: Useful in electrical panels and control cabinets where every inch of space matters.
• Suitable for commercial and industrial electrical systems: Commonly used in OEM equipment and branch circuit applications.
• UL 489 listed: Built for low-voltage electrical distribution systems.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B325H

• Product Type: Molded Case Circuit Breaker

• Breaker Series: BLH

• Amperage Rating: 25 Amps

• Number of Poles: 3 Pole

• Voltage Rating: 240 VAC

• Interrupt Rating: 22kAIC

• Trip Type: Thermal Magnetic

• Connection Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • Depth: Approx. 4 in
  • Height: Approx. 3 in
  • Width: Approx. 4 in
• Net Weight: 0.948 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B325H circuit breaker is manufactured to meet UL 489 standards for molded case circuit breakers used in low-voltage electrical distribution systems.


Where It Works Best

• Commercial electrical panels
• Industrial distribution systems
• Three-phase electrical equipment
• Branch circuit protection
• Industrial control panels
• OEM machinery panels
• Electrical distribution equipment
• Facility upgrades and maintenance projects
• Electrical systems with higher available fault current levels
