B31500S01 - 15 Amp Circuit Breaker

B31500S01 - 15 Amp Circuit Breaker

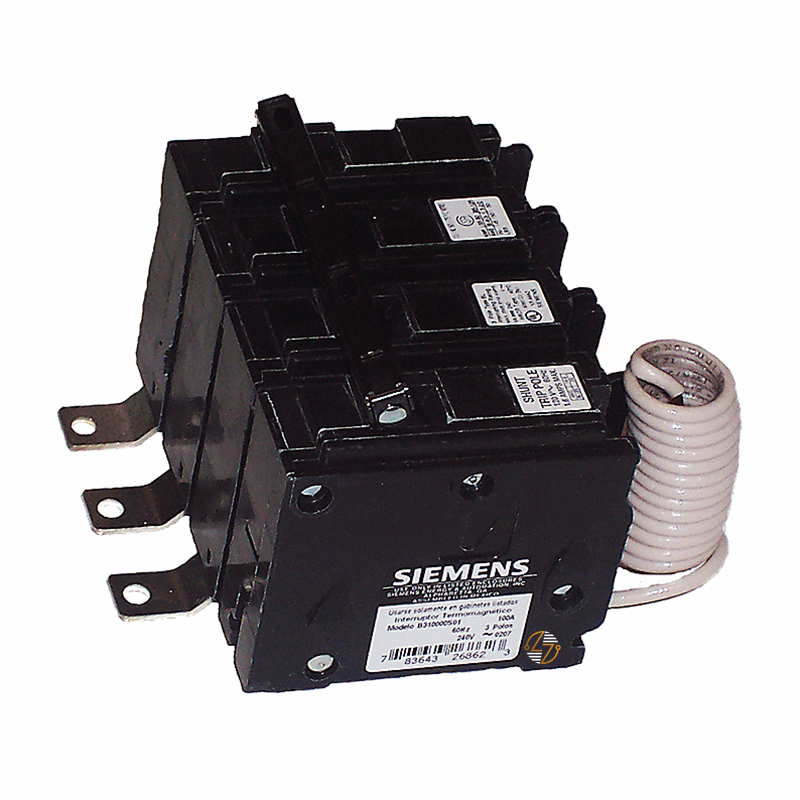

The Siemens B31500S01 circuit breaker is built for your three-phase electrical systems that need reliable circuit protection and remote trip capability. Rated at 15 amps for 120/240V applications, this 3-pole Type BL breaker helps protect your wiring and connected equipment from overloads and short circuits in commercial and industrial electrical systems. This model includes a factory-installed 120V shunt trip, allowing the breaker to be remotely opened through an external signal. That makes it a good fit for emergency shutoff systems, fire alarm interfaces, HVAC controls, and other applications where remote disconnect capability is required. The bolt-on construction provides a secure fit in compatible Siemens panelboards and distribution equipment, making it a practical option for replacements, upgrades, and new installations.

Key Features and Benefits

• 15 amp molded case circuit breaker: Designed for dependable overcurrent protection in commercial and industrial electrical systems.
• 3-pole configuration for 120/240V systems: Suitable for three-phase electrical distribution applications.
• Factory-installed 120V shunt trip: Allows the breaker to be remotely opened through an external signal.
• Type BL breaker design: Built for reliable performance in compatible Siemens electrical equipment.
• Thermal magnetic trip protection: Responds to both overload conditions and sudden faults.
• 10kA interrupting capacity: Provides dependable fault protection in standard electrical distribution systems.
• Bolt-on mounting style: Provides a secure fit in compatible Siemens panelboards and distribution equipment.
• Supports remote trip and emergency disconnect applications: Commonly used in systems requiring remote disconnect capability.
• Helps protect against overloads and short circuits: Designed to safeguard wiring and connected electrical equipment.

Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B31500S01

• Product Type: Molded Case Circuit Breaker

• Breaker Series: BL

• Amperage Rating: 15 Amps

• Number of Poles: 3 Pole

• Voltage Rating: 120/240 VAC

• Interrupt Rating: 10kAIC

• Special Feature: 120V Shunt Trip

• Trip Type: Thermal Magnetic

• Connection Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • Depth: Approx. 6 in
  • Height: Approx. 4 in
  • Width: Approx. 4 in
• Net Weight: 1.587 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B31500S01 circuit breaker is manufactured to meet UL 489 standards for molded case circuit breakers used in low-voltage electrical distribution systems.


Where It Works Best

• Commercial electrical panels
• Industrial distribution systems
• Three-phase electrical equipment
• Emergency shutdown systems
• Fire alarm interface applications
• HVAC control systems
• OEM machinery panels
• Control panels and automation systems
