B3100HH - 100Amp Circuit Breaker

B3100HH - 100Amp Circuit Breaker

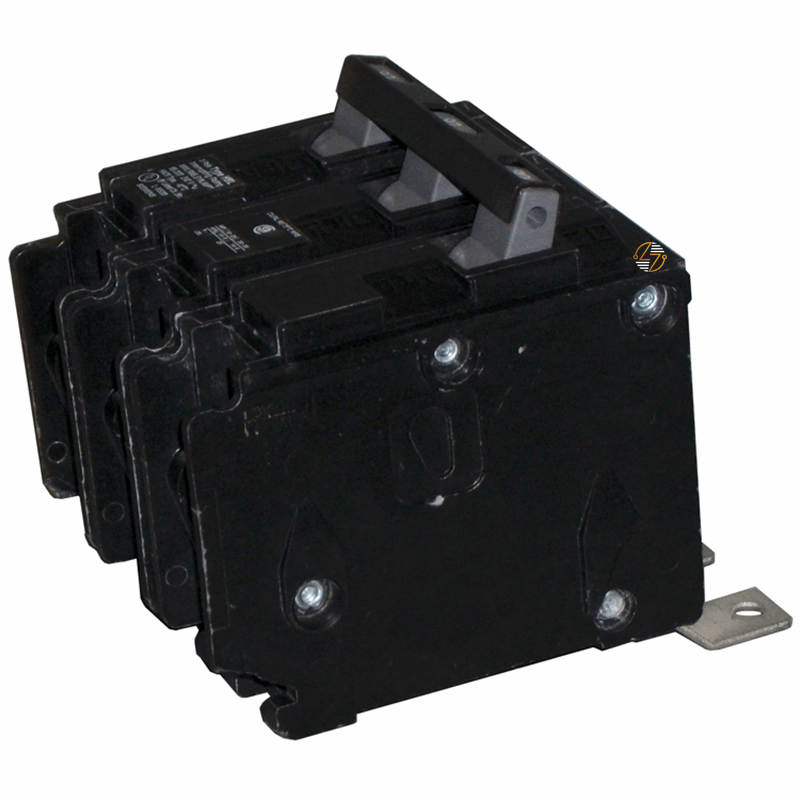

The Siemens B3100HH circuit breaker is designed for your three-phase electrical systems that require dependable protection in applications with higher available fault current. Rated at 100 amps and built for 240V systems, this 3-pole Type HBL breaker helps protect your circuits and connected equipment from overloads and short circuits in commercial and industrial power distribution systems. Its 65kA interrupting capacity makes it a strong choice for demanding electrical applications where standard breakers may not provide enough fault protection. The bolt-on construction provides a secure fit in compatible Siemens panelboards and distribution equipment, making installation and replacement work more straightforward. Its compact design also helps in panelboards and control equipment where available space may already be limited.

Key Features and Benefits

• 100 amp molded case circuit breaker: Designed for dependable overcurrent protection in commercial and industrial electrical systems.
• 3-pole configuration for 240V systems: Suitable for three-phase electrical distribution applications.
• Type HBL breaker design: Built for reliable performance in compatible Siemens panelboards and distribution equipment.
• High 65kA interrupting capacity: Suitable for demanding electrical applications where higher fault protection is needed.
• Thermal magnetic trip protection: Responds to overloads and short-circuit fault conditions.
• Bolt-on mounting style: Provides a secure fit in compatible Siemens electrical equipment.
• Helps protect against overloads and short circuits: Designed to safeguard circuits and connected electrical equipment.
• Compact design for panelboard applications: Helps support installation in panelboards and control equipment where space may be limited.
• Suitable for commercial and industrial electrical systems: Commonly used in power distribution applications requiring dependable three-phase protection.
• UL 489 listed: Built for low-voltage electrical distribution applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B3100HH

• Product Type: Molded Case Circuit Breaker

• Breaker Series: HBL

• Amperage Rating: 100 Amps

• Number of Poles: 3 Pole

• Voltage Rating: 240 VAC

• Interrupt Rating: 65kAIC

• Trip Type: Thermal Magnetic

• Connection Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • Depth: Approx. 4 in
  • Height: Approx. 3 in
  • Width: Approx. 3 in
• Net Weight: 1.058 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B3100HH circuit breaker is manufactured to meet UL 489 standards for molded case circuit breakers used in low-voltage electrical distribution systems.


Where It Works Best

• Commercial electrical panels
• Industrial distribution systems
• Three-phase electrical equipment
• OEM machinery panels
• Branch circuit protection
• Feeder circuit applications
• Industrial control panels
• Service upgrades and retrofit projects
