B310000S01 - 100Amp Circuit Breaker

B310000S01 - 100Amp Circuit Breaker

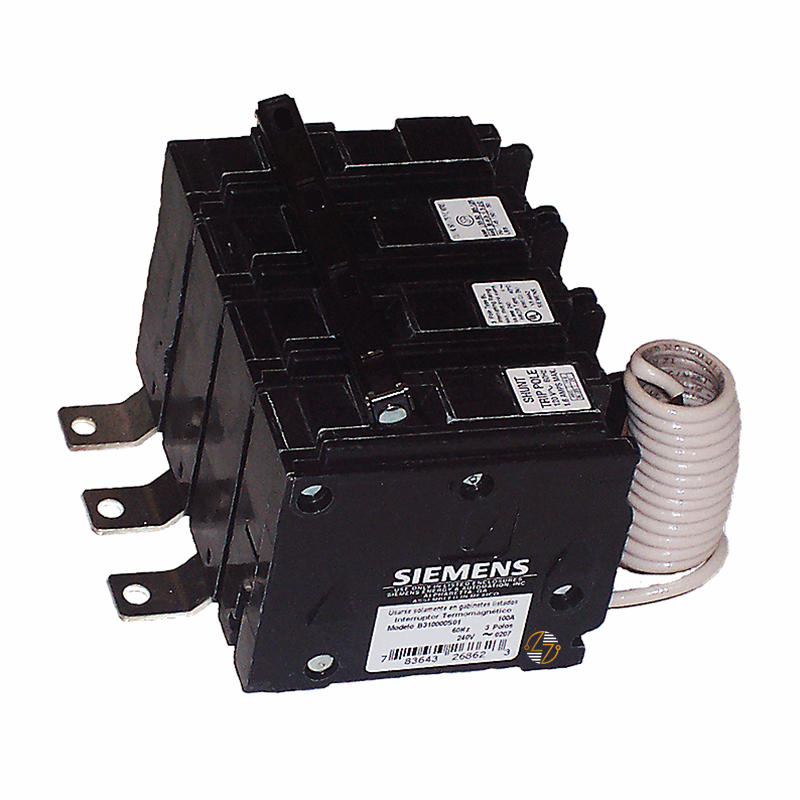

The Siemens B310000S01 circuit breaker is designed for your three-phase electrical systems that require dependable overcurrent protection along with remote trip capability. Rated at 100 amps and built for 120/240VAC applications, this 3-pole Type BL molded case breaker helps protect your circuits and connected equipment from overloads and short circuits in commercial and industrial electrical distribution systems. The thermal magnetic trip design responds to both overload conditions and sudden faults, helping protect wiring and electrical equipment during normal operation. Its bolt-on construction provides a secure fit in compatible Siemens panelboards and distribution equipment, while the compact design helps you simplify installation in both new and existing systems.

Key Features and Benefits

• 100 amp molded case circuit breaker: Designed for dependable overcurrent protection in commercial and industrial electrical systems.
• 3-pole configuration for 120/240VAC systems: Suitable for three-phase electrical distribution applications.
• Factory-installed 120V shunt trip: Supports remote trip and emergency disconnect applications.
• Type BL breaker design: Built for reliable performance in compatible Siemens panelboards and distribution equipment.
• Thermal magnetic trip protection: Responds to both overload conditions and sudden faults.
• 10kA interrupting capacity: Provides dependable fault protection in standard electrical distribution systems.
• Bolt-on mounting style: Provides a secure fit in compatible Siemens electrical equipment.
• Supports remote trip and emergency disconnect applications: Commonly used in systems requiring remote disconnect capability.
• Helps protect against overloads and short circuits: Designed to safeguard wiring and connected electrical equipment.
• UL 489 listed: Built for low-voltage electrical distribution applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B310000S01

• Product Type: Molded Case Circuit Breaker

• Breaker Series: BL

• Amperage Rating: 100 Amps

• Number of Poles: 3 Pole

• Voltage Rating: 120/240 VAC

• Interrupt Rating: 10kAIC

• Special Feature: 120V Shunt Trip

• Trip Type: Thermal Magnetic

• Connection Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions:
  • Depth: Approx. 6 in
  • Height: Approx. 4.1 in
  • Width: Approx. 5 in
• Net Weight: 1.257 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Standards: The Siemens B310000S01 circuit breaker is manufactured to meet UL 489 standards for molded case circuit breakers used in low-voltage electrical distribution systems.


Where It Works Best

• Commercial electrical panels
• Industrial distribution systems
• Three-phase electrical equipment
• Emergency shutdown systems
• Fire alarm interface applications
• HVAC control systems
• OEM machinery panels
• Control panels and automation systems
• Feeder circuit applications
