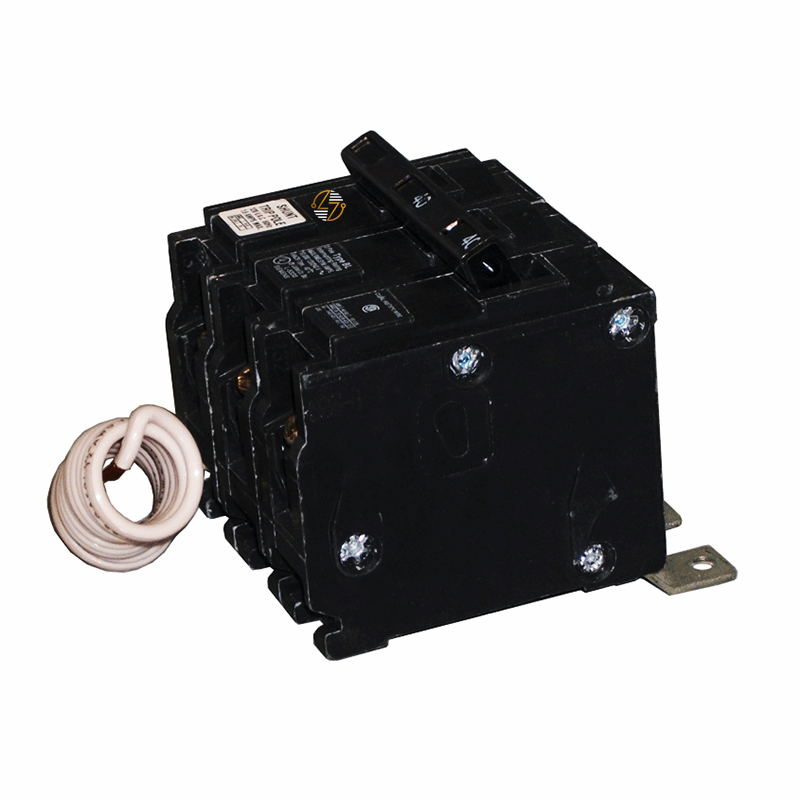

The Siemens B26000S01 is a 60 amp, 2-pole circuit breaker designed for 120/240VAC electrical distribution systems that require both dependable circuit protection and remote tripping capability. Equipped with a factory-installed 120V shunt trip, this breaker can be remotely opened through an external control signal, making it a practical choice for systems that require emergency shutoff functions or added safety control.

Built with Siemens BL series construction, the B26000S01 combines thermal magnetic protection with a compact bolt-on design for secure installation in compatible panelboards. The breaker helps protect your electrical systems from overloads and short circuits while supporting applications where remote disconnect operation is needed. Its 10kA interrupting rating makes it suitable for a variety of commercial and light industrial power distribution systems.

Key Features and Benefits

• 60 amp molded case circuit breaker
• 2-pole configuration
• Rated for 120/240VAC systems
• Factory-installed 120V shunt trip
• 10kA interrupting capacity
• Thermal magnetic trip protection
• Bolt-on mounting design
• Compact Siemens BL series construction
• UL 489 listed


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: B26000S01

• Product Type: Molded Case Circuit Breaker

• Series: BL

• Poles: 2

• Amperage Rating: 60A

• Voltage Rating: 120/240VAC

• Interrupt Rating: 10kAIC

• Trip Type: Thermal Magnetic

• Special Feature: 120V Shunt Trip

• Mounting Type: Bolt-On

• Application: Electrical Distribution

• Standard: UL 489

• Dimensions: Approx. 4.724" L x 3.937" W x 3.937" H

• Weight: Approx. 1.257 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• The Siemens B26000S01 meets UL 489 standards for molded case circuit breakers and is designed for professional electrical distribution applications. It is part of the Siemens General Purpose MCCB product family and carries an ECCN classification of EAR99.


Where It Works Best

• Commercial buildings
• HVAC systems with remote shutdown requirements
• Industrial control panels
• Elevator and safety disconnect systems
• Distribution panels and panelboards
• Emergency power shutoff applications
• Maintenance and retrofit projects

The Siemens B26000S01 is a practical solution for applications that require standard circuit protection along with the added convenience of remote trip capability.
