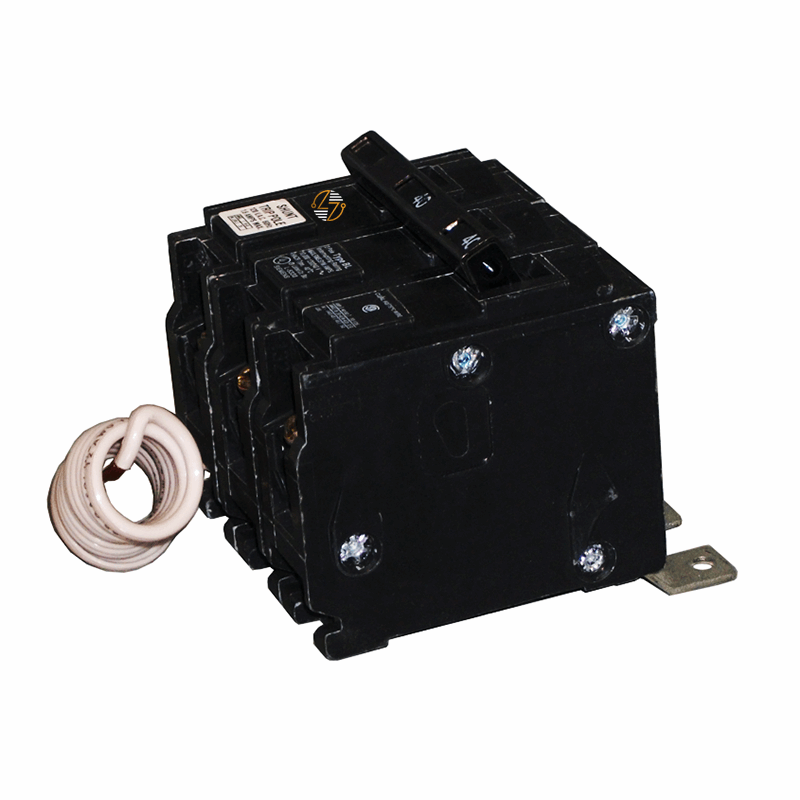

B24000S01 - 40Amp Circuit Breaker

B24000S01 - 40Amp Circuit Breaker

When it comes to keeping your electrical system safe and running smoothly, the Siemens B24000S01 delivers reliable protection without any fuss. This 40-amp, 2-pole breaker is designed for 120/240V systems and comes equipped with a 120V shunt trip, making it easy to remotely trip the breaker when needed. With a 10kA interrupt rating, it provides solid protection against overloads and short circuits, helping prevent damage to your equipment and wiring. Its bolt-on design ensures a stable installation in compatible Siemens panelboards, and the compact BL profile maximizes available panel space.

Key Features and Benefits

• 40A 2-Pole Protection: Reliable protection for residential, commercial, and general electrical systems.
• Shunt Trip 120V: Allows remote tripping for added safety and control.
• 10kA Interrupt Rating: Handles high fault currents to protect circuits and equipment.
• Bolt-On Connection: Ensures a secure fit inside approved Siemens panels.
• Compact BL Design: Efficiently uses panel space without compromising performance.


Technical Specifications

• Catalog Number: B24000S01

• Manufacturer: Siemens

• Current Rating: 40A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Interrupt Rating: 10kA

• Connection Type: Bolt-On

• Shunt Trip Voltage: 120V

• Dimensions (HxWxD): 4 x 5 x 6 in

• Net Weight: 0.926 lb

• Standard Compliance: UL 489


Material Compliance and Certifications

• UL 489 listed for electrical safety and performance
• Suitable for a wide range of electrical distribution applications


Where It Works Best

• Residential and commercial electrical panels
• HVAC equipment and branch circuits
• Lighting and power distribution systems
• Applications requiring remote or automated circuit tripping
